Note On Intermittents

Since all 4 groups of relays can cause an intermittent condition, see Note On Intermittents courtesy light relay, twilight relays, high/low beam relays, or retained accessory power relays.

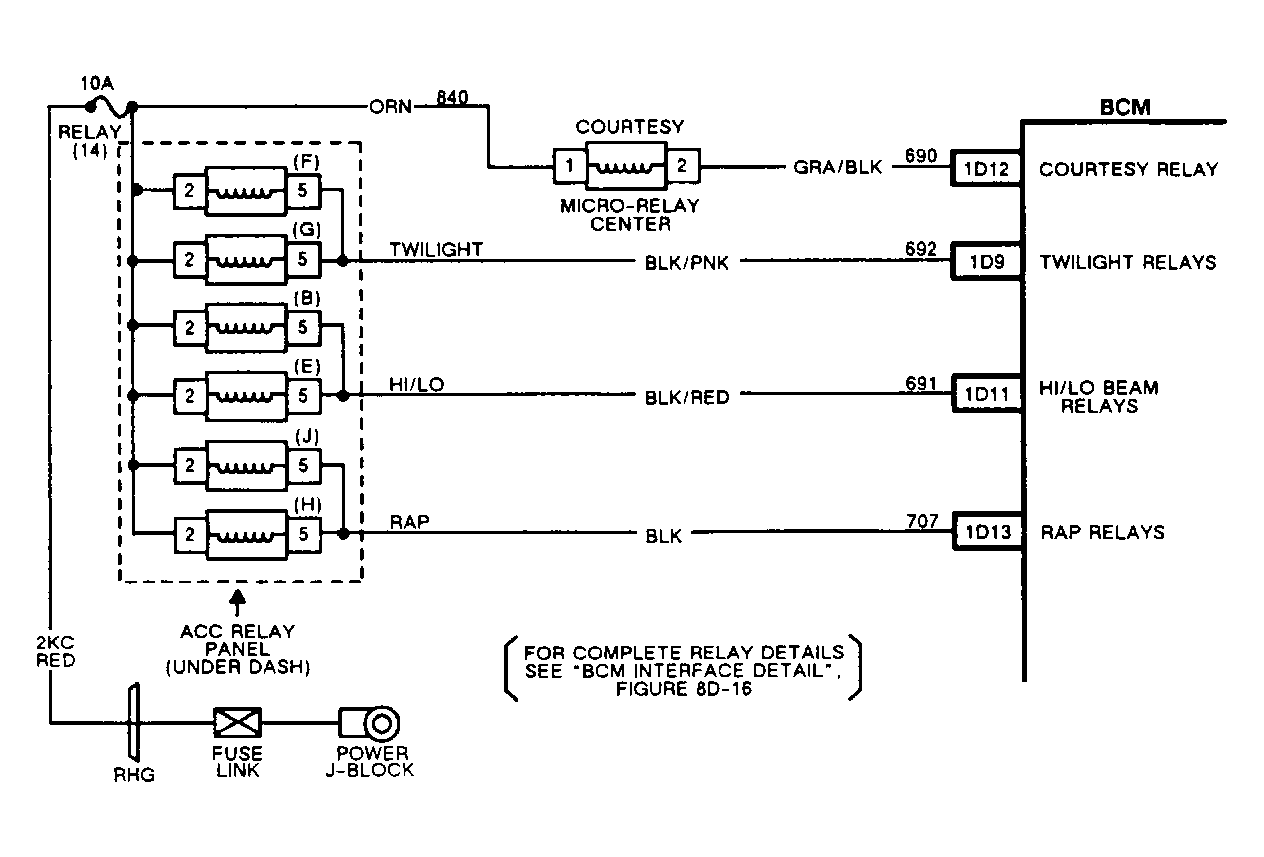

Fig 1: BCM Code B420, Schematic, Relay Circuits
G91E07635

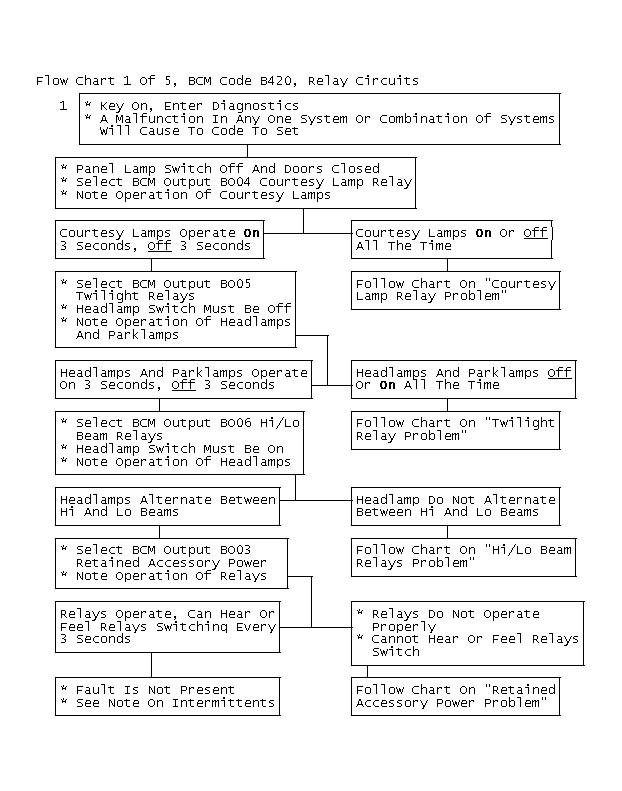

Fig 2: Flow Chart 1 Of 5, BCM Code B420, Relay Circuits
GB0022585
