Pcm Connector Identification

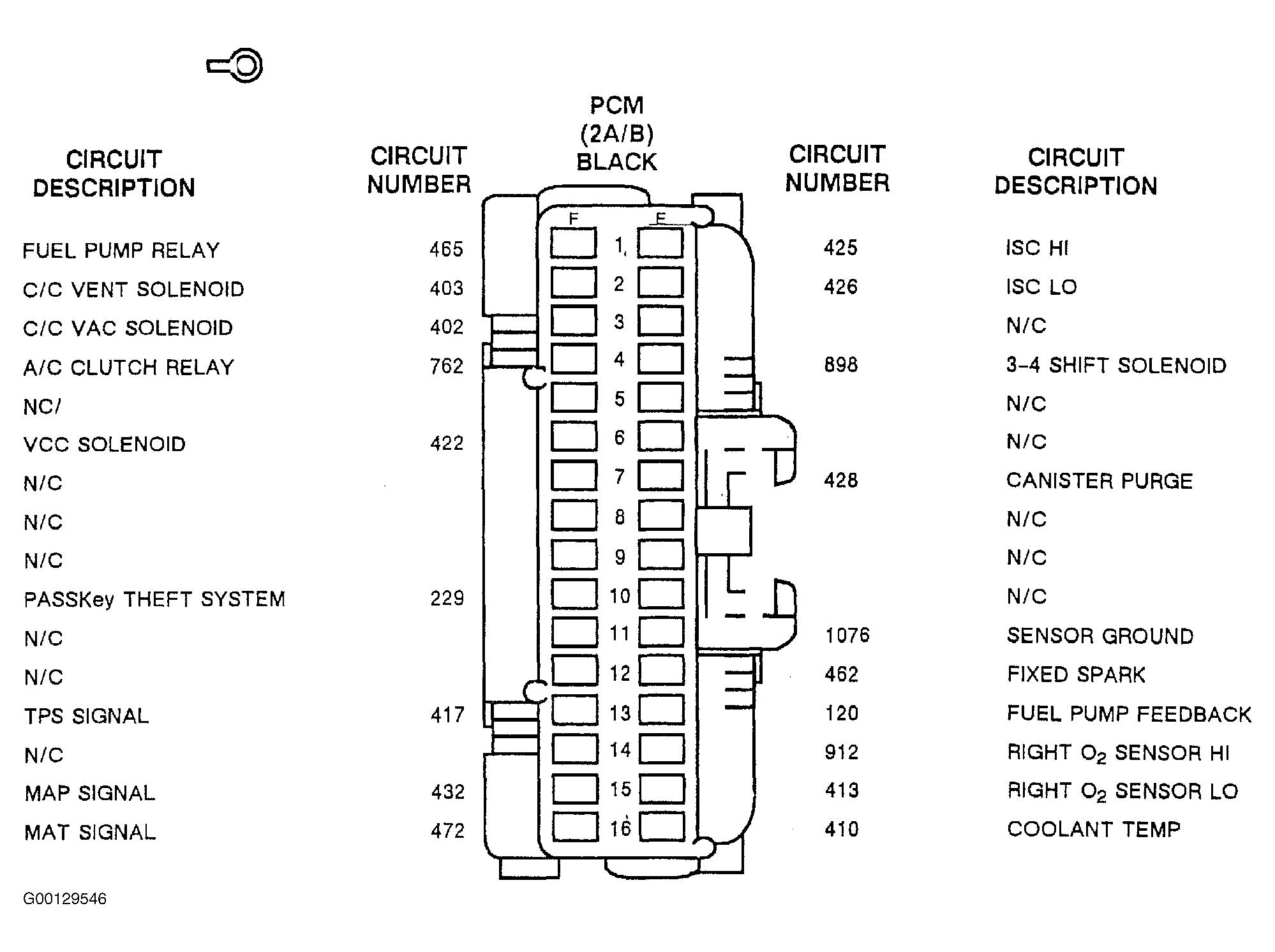

Fig 1: Identifying PCM Terminal & Circuit Numbers (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

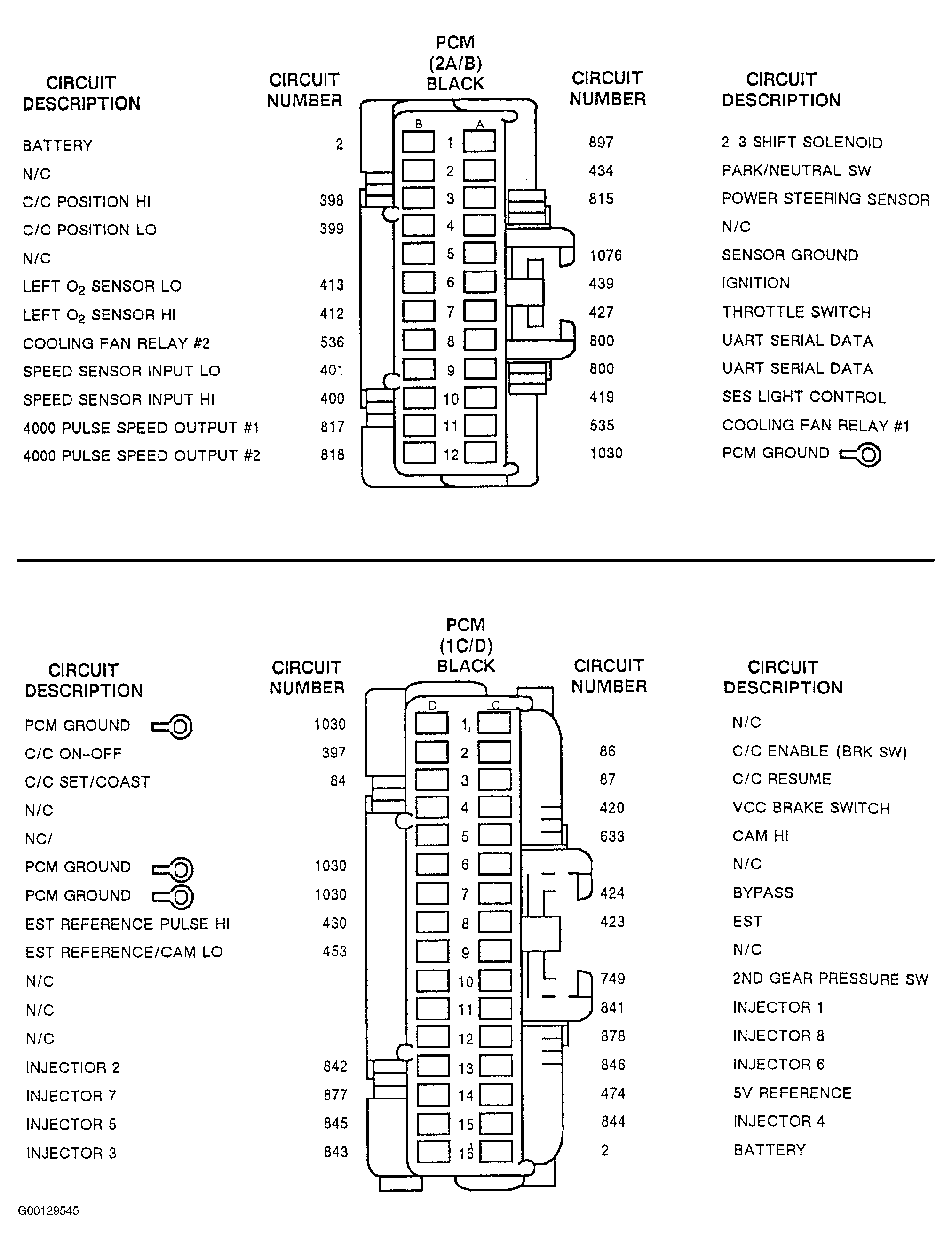

Fig 2: Identifying PCM Terminal & Circuit Numbers (1 Of 2)

Courtesy of GENERAL MOTORS CORP.
