Engine Controls - System/Component Tests: Wiring Diagram

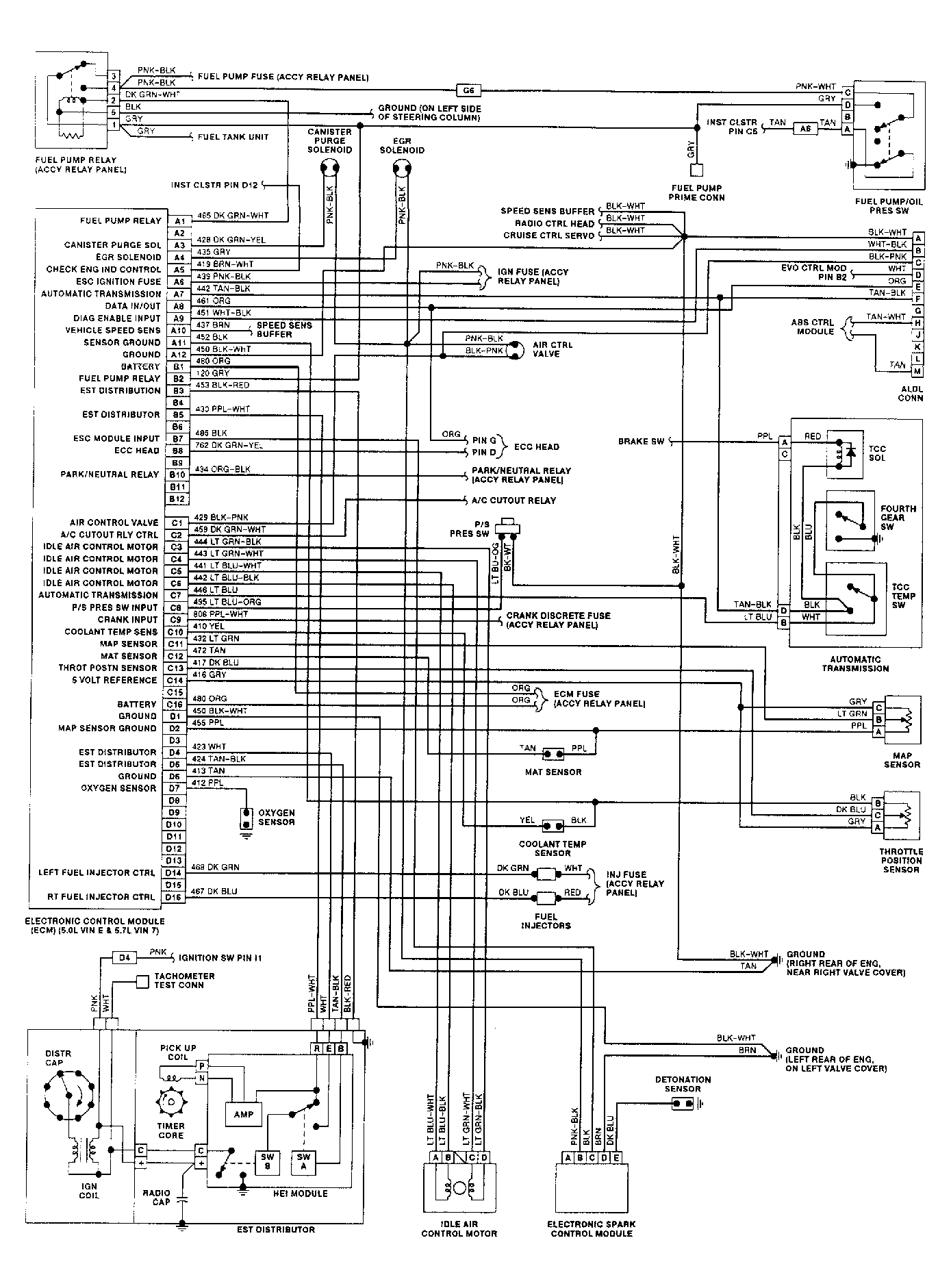

Fig 1: ECM Wiring Diagram, (5.0L VIN E & 5.7L VIN 7)
