Wiring Diagrams

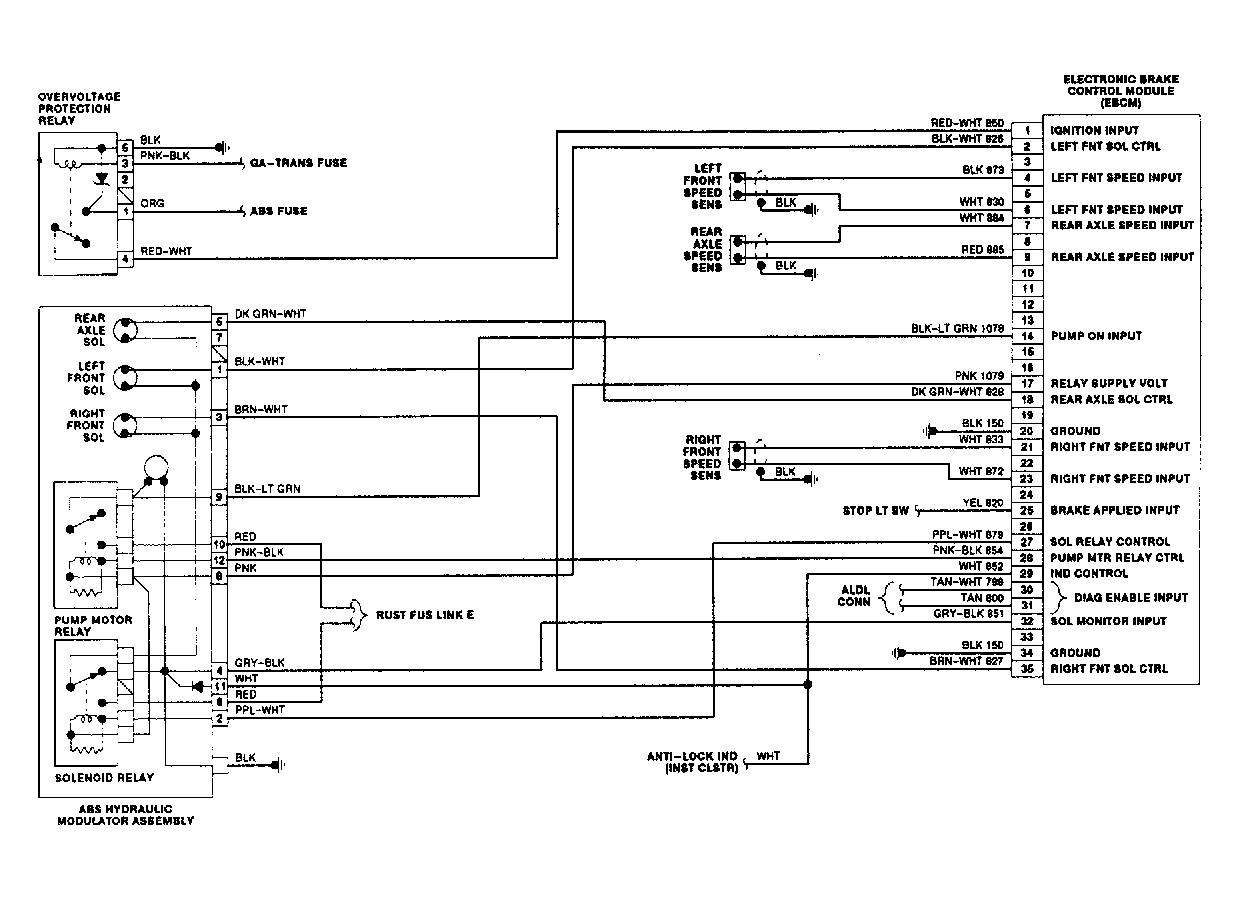

Fig 1: Anti-Lock Brake System Wiring Diagram (Brougham 1991)

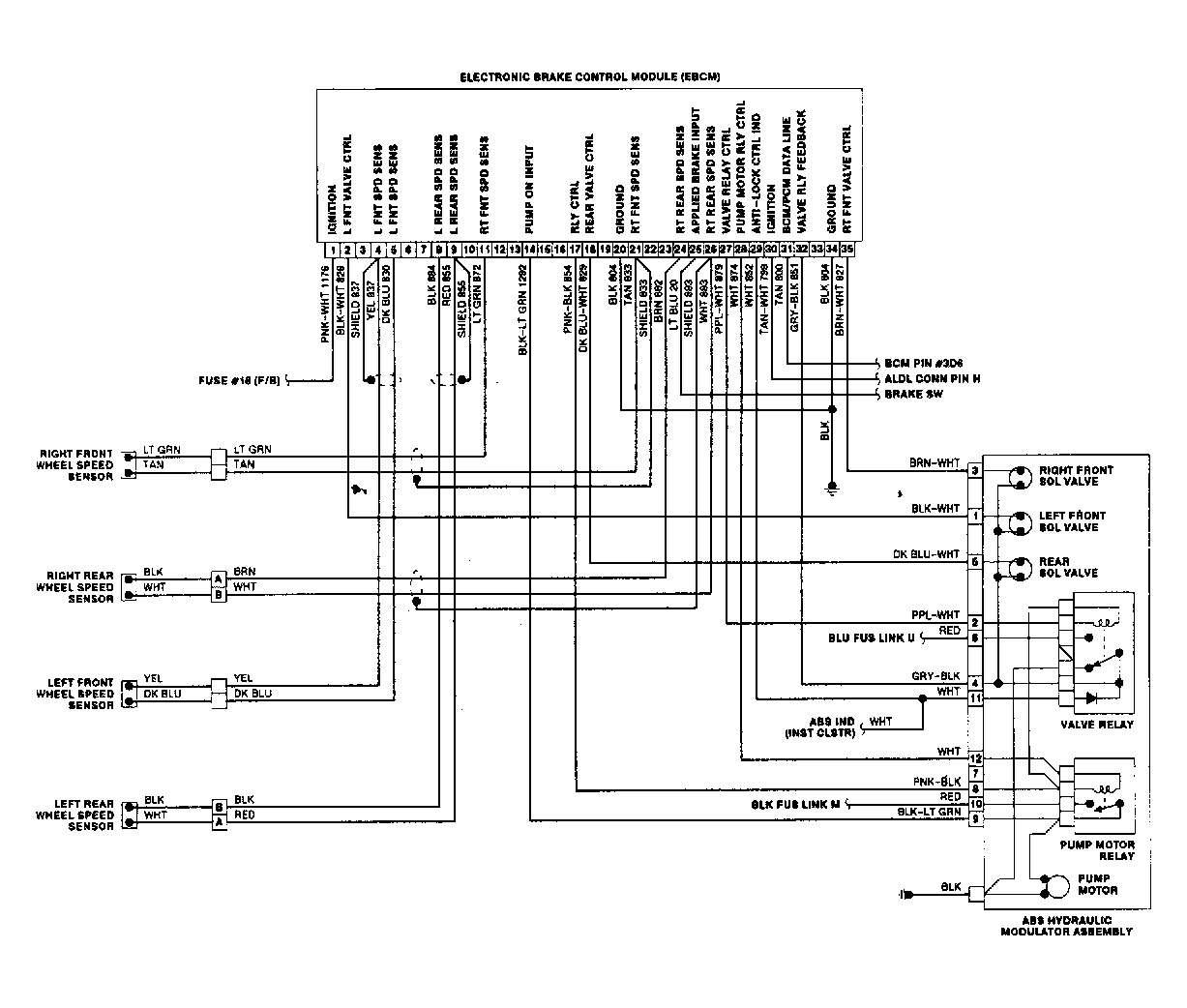

Fig 2: Anti-Lock Brake System Wiring Diagram (Reatta & Riviera)

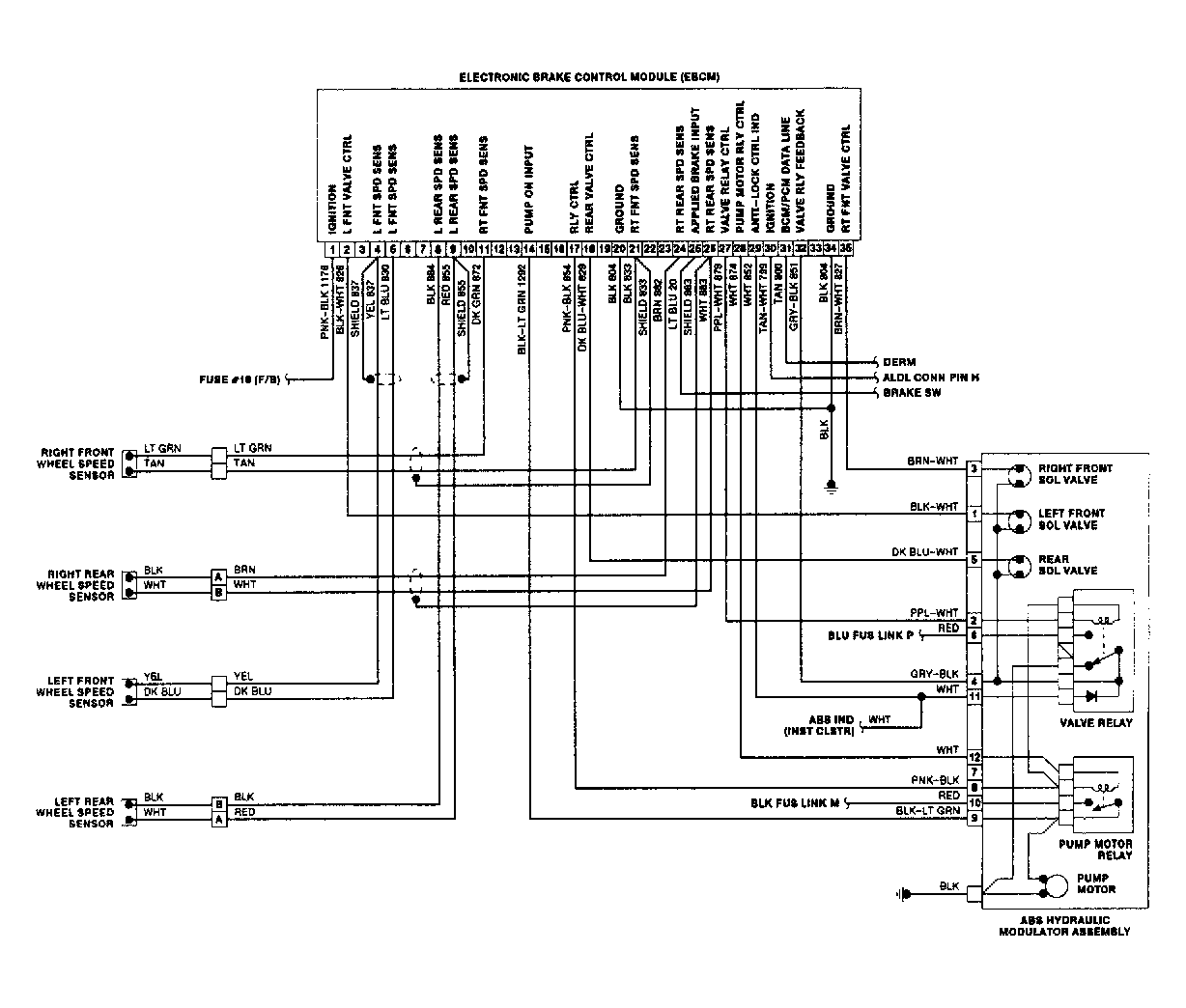

Fig 3: Anti-Lock Brake System Wiring Diagram (Eldorado & Seville)

Fig 4: Anti-Lock Brake System Wiring Diagram (Toronado & Trofeo)
