EBTCM Inputs: Notes

For EBTCM inputs, refer to Fig 1.

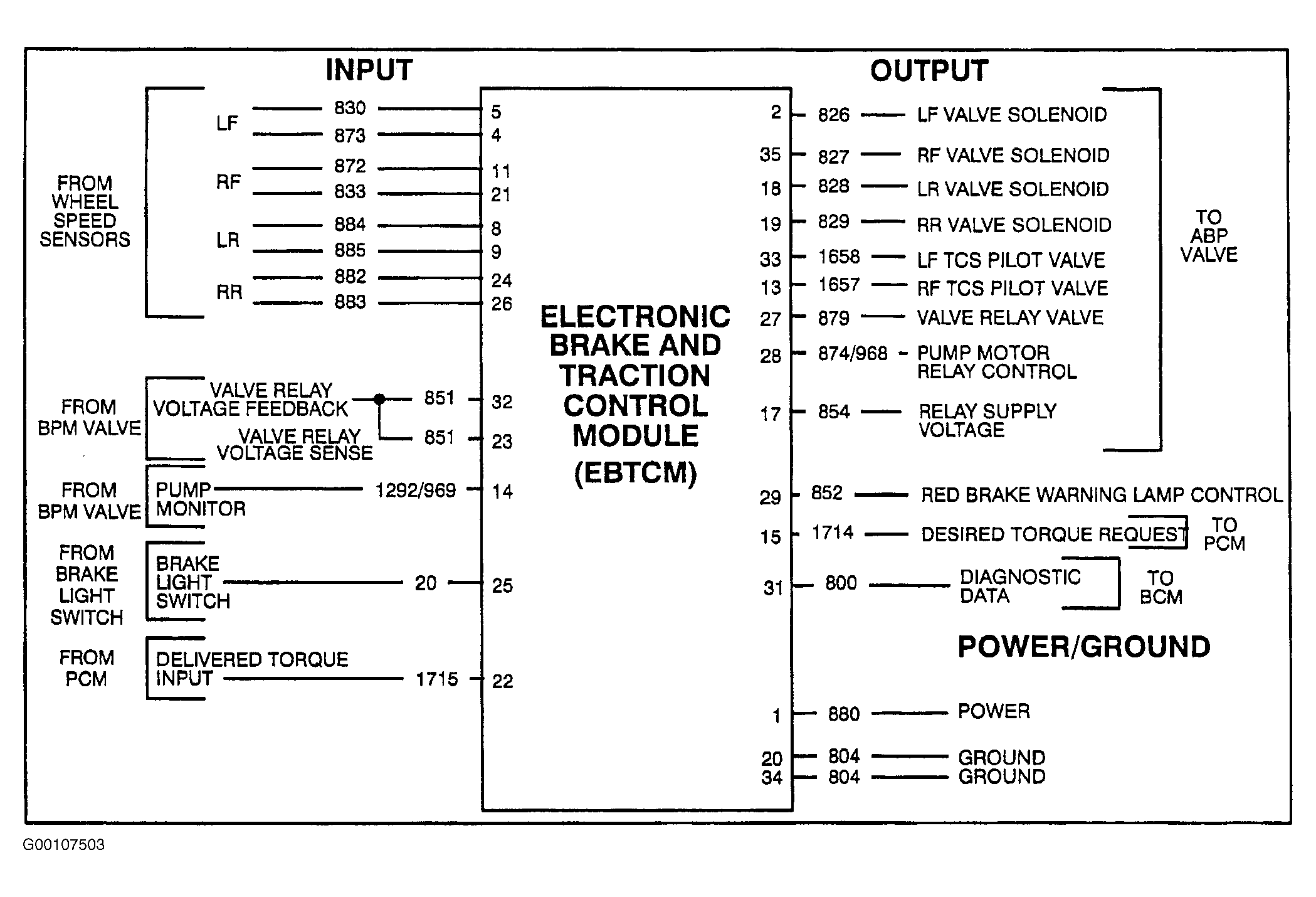

Fig 1: Identifying Electronic Brake & Traction Control Module Circuits
G00107503Courtesy of GENERAL MOTORS CORP.
