Test B: Power Mirror Switch Continuity Test
Test B: Power Mirror Switch Continuity Test

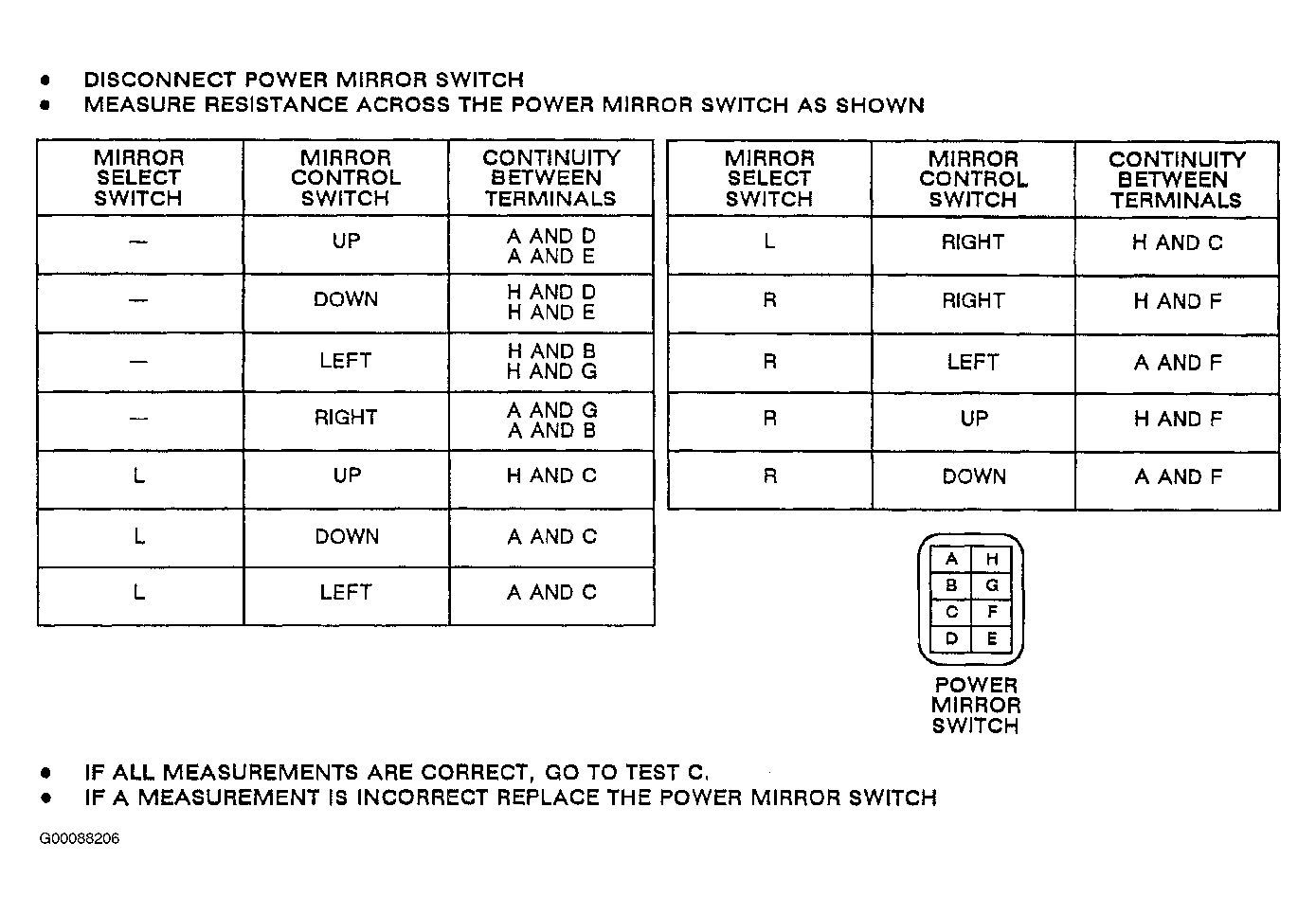

Fig 1: Power Mirror Switch Continuity Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
