Wiring Diagrams

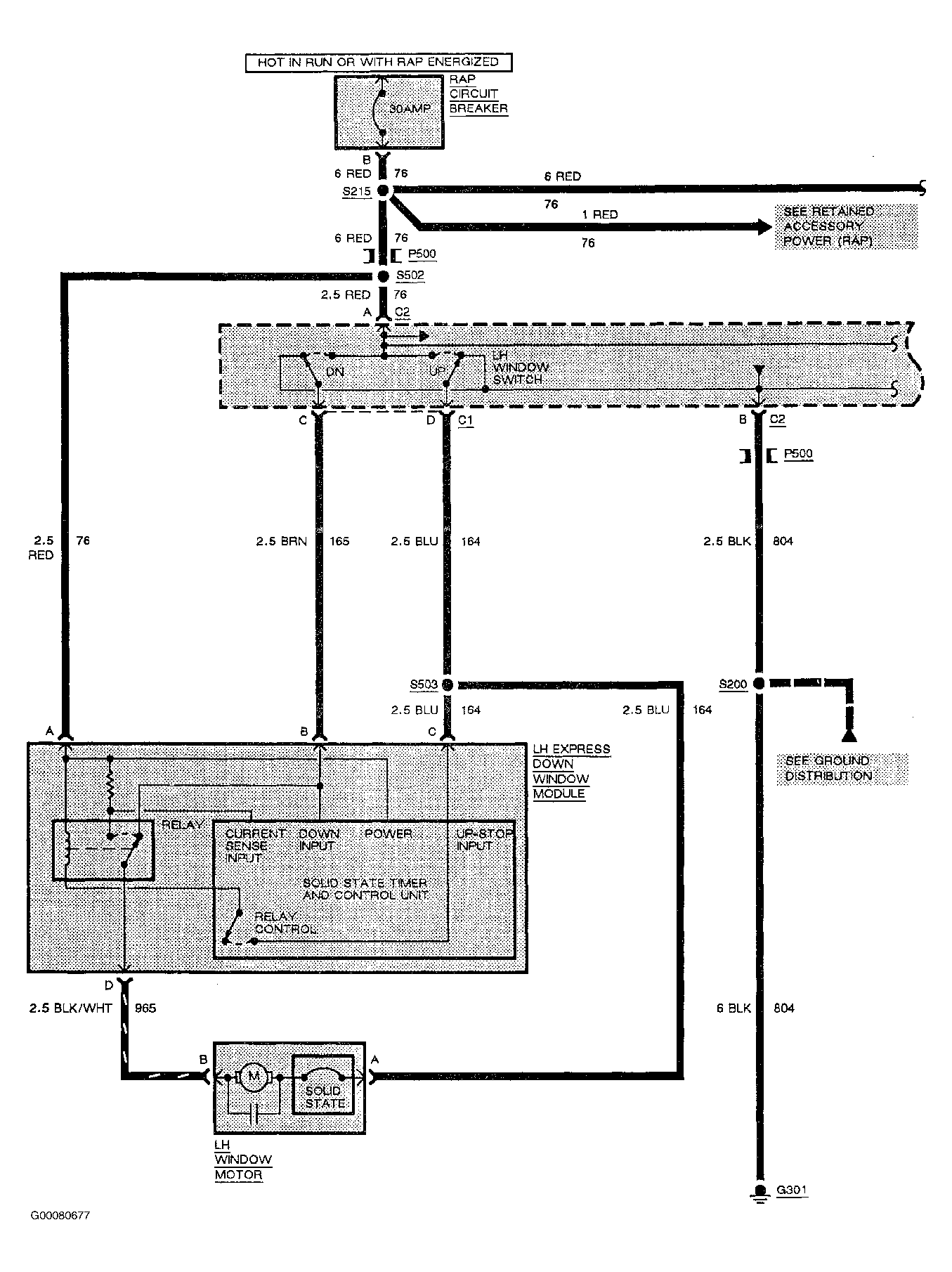

Fig 1: Power Window Wiring Diagram (1 Of 2)
G00080677Courtesy of GENERAL MOTORS CORP.

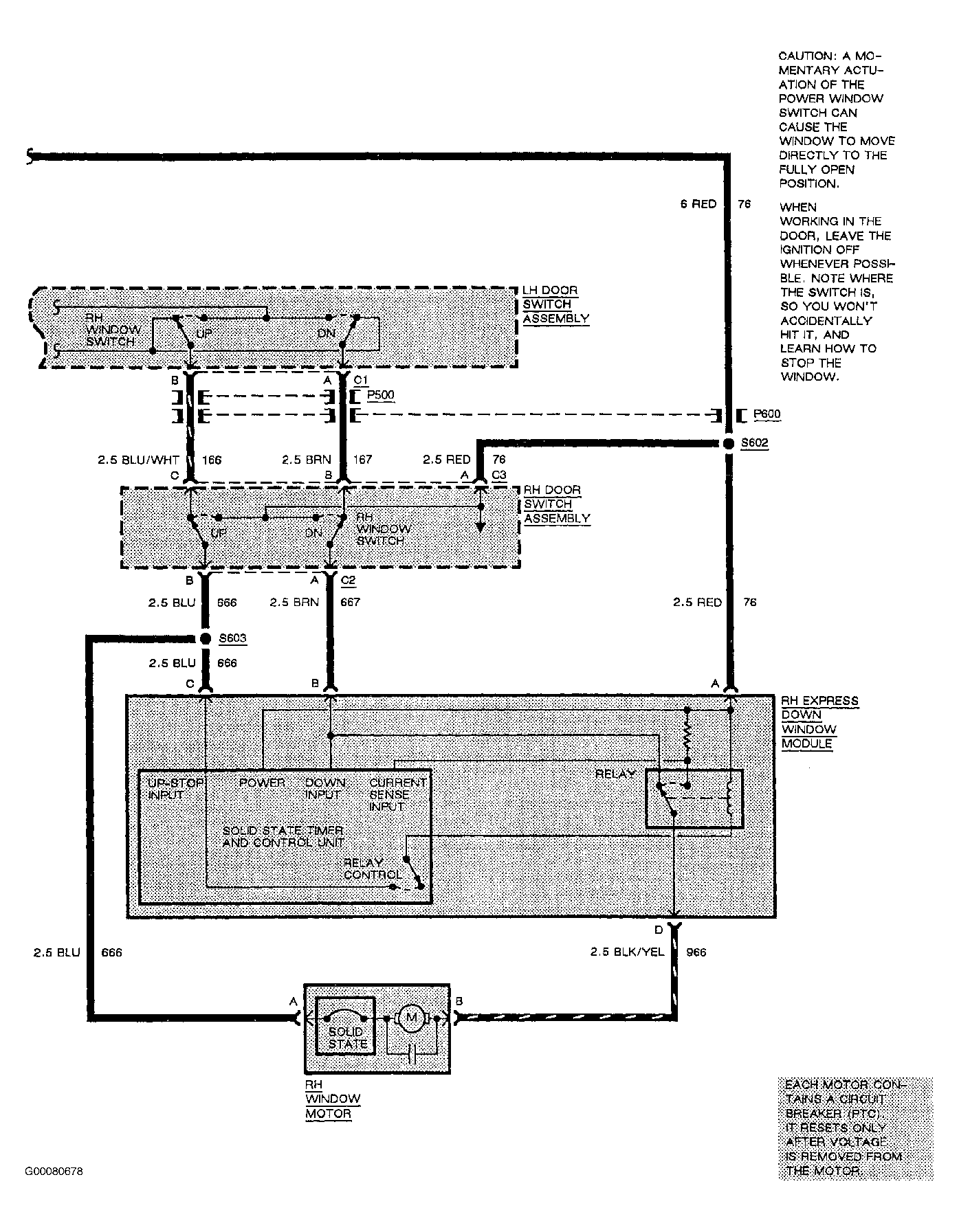

Fig 2: Power Window Wiring Diagram (1 Of 2)
G00080678Courtesy of GENERAL MOTORS CORP.
