Notes On Fault Tree

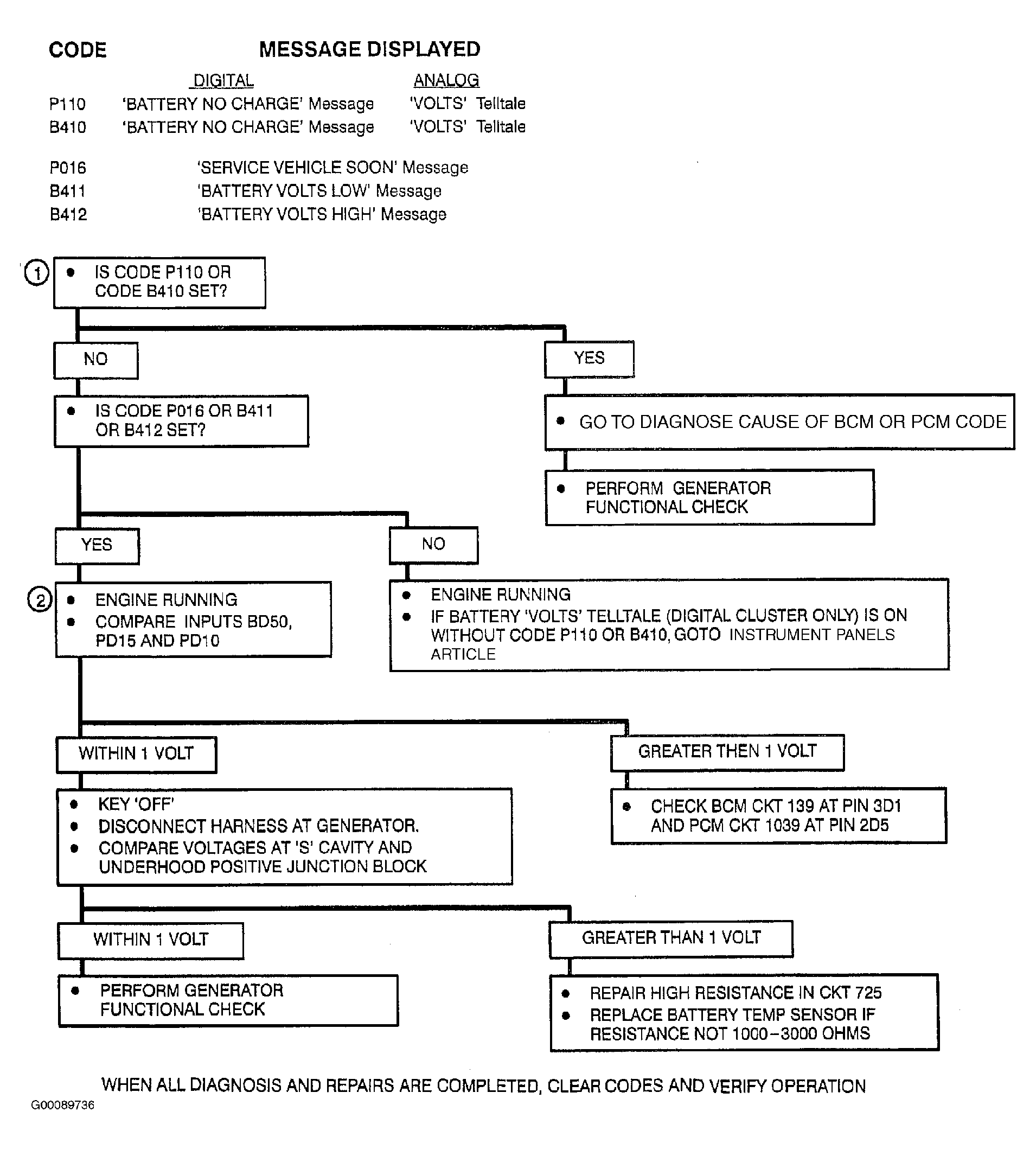

NOTE: Steps in this procedure correspond to circled numbers in flow chart. See Figure .

B410 will not set if P110 is set.
Verify that an out-of-range voltage condition exists in vehicle, not in just one circuit.
