Test K: Catalytic Converter Over Temperature Alarm Module
Test K: Catalytic Converter Over Temperature Alarm Module

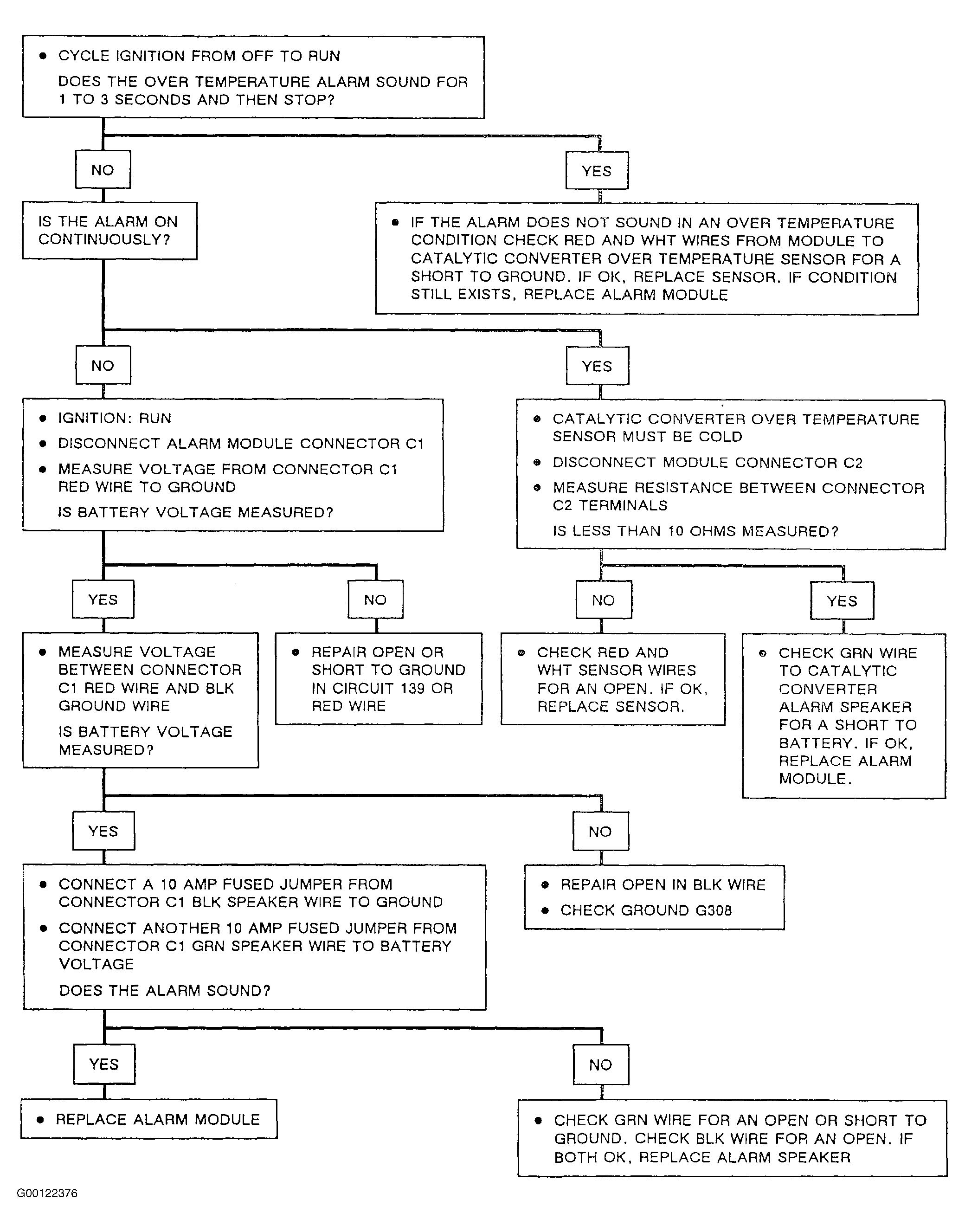

Fig 1: Test K: Catalytic Converter Over Temperature Alarm Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
