Self-Diagnostics System Check Chart B-4: Data Circuit Shorted: Description

You have been directed to this chart from chart B because one of the components on the dataline is shorting CKT 800. This chart will help determine which component it is faulty.

NOTE: For diagnostic flow chart, see Fig 1. For circuit identification see Figure.

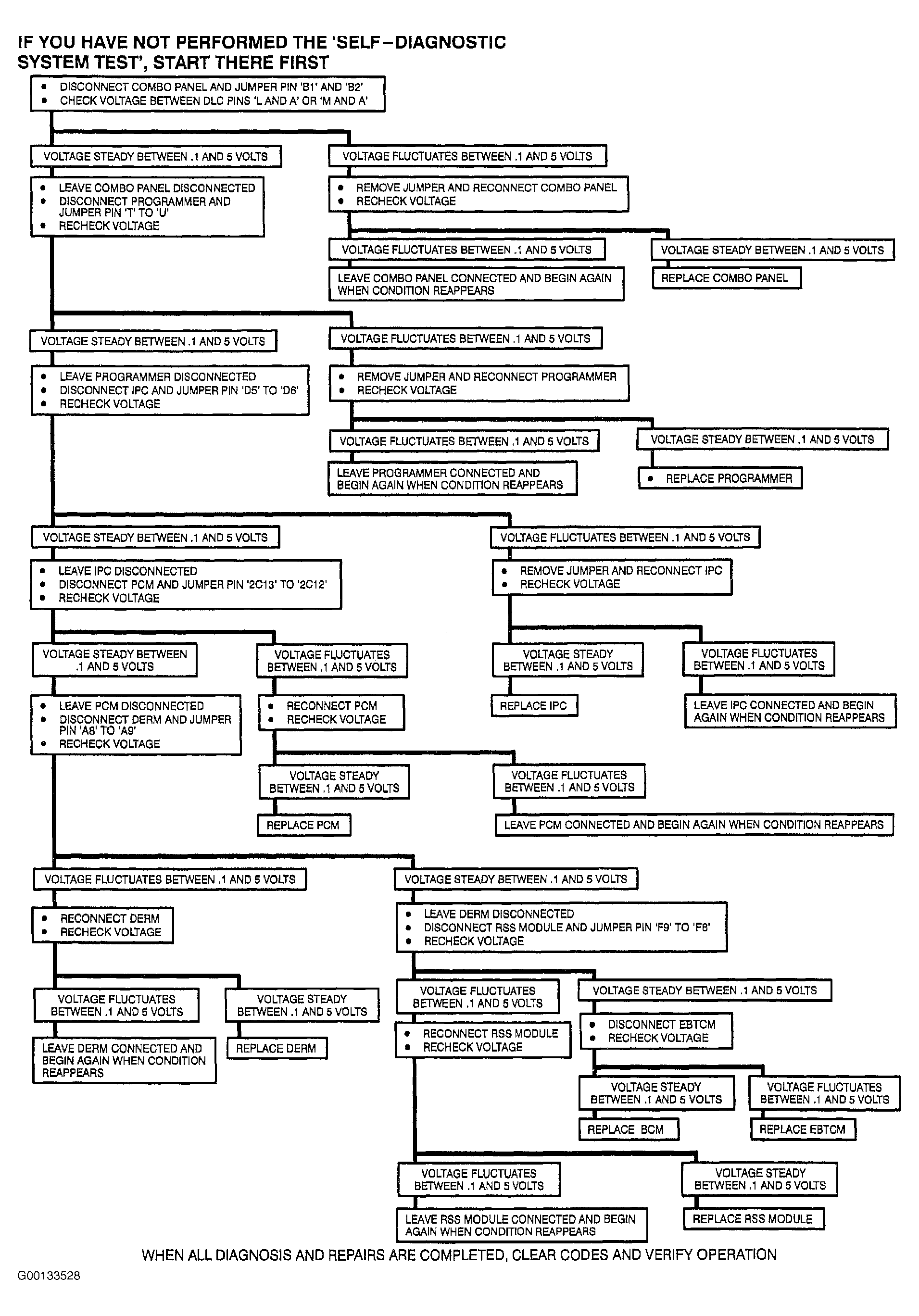

Fig 1: Self Diagnostic System Check Chart B-4: Data Circuit Shorted Flow Chart

Courtesy of GENERAL MOTORS CORP.
