Steering Column: Overhaul

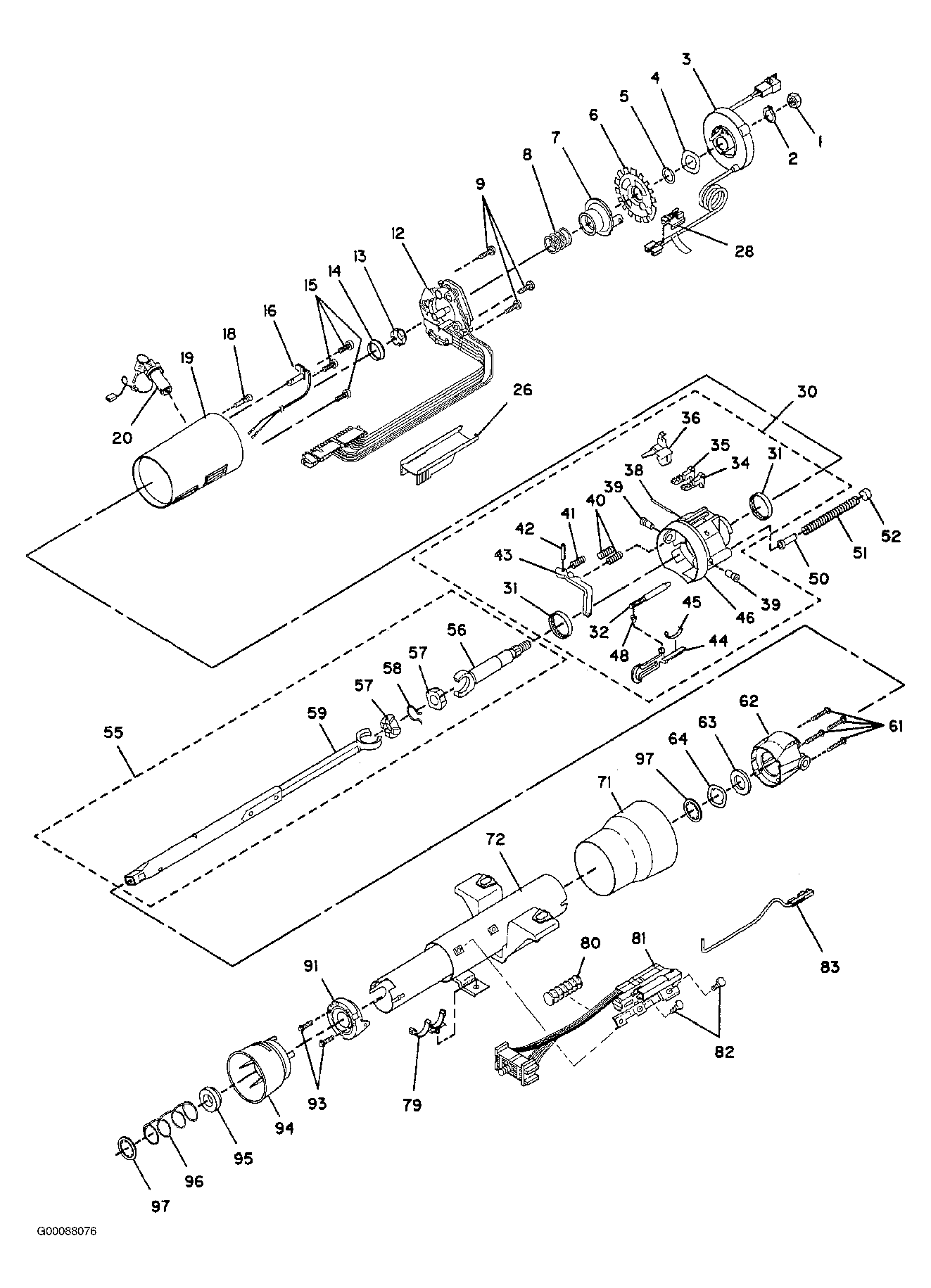

Fig 1: Exploded View Of Tilt Steering Column (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

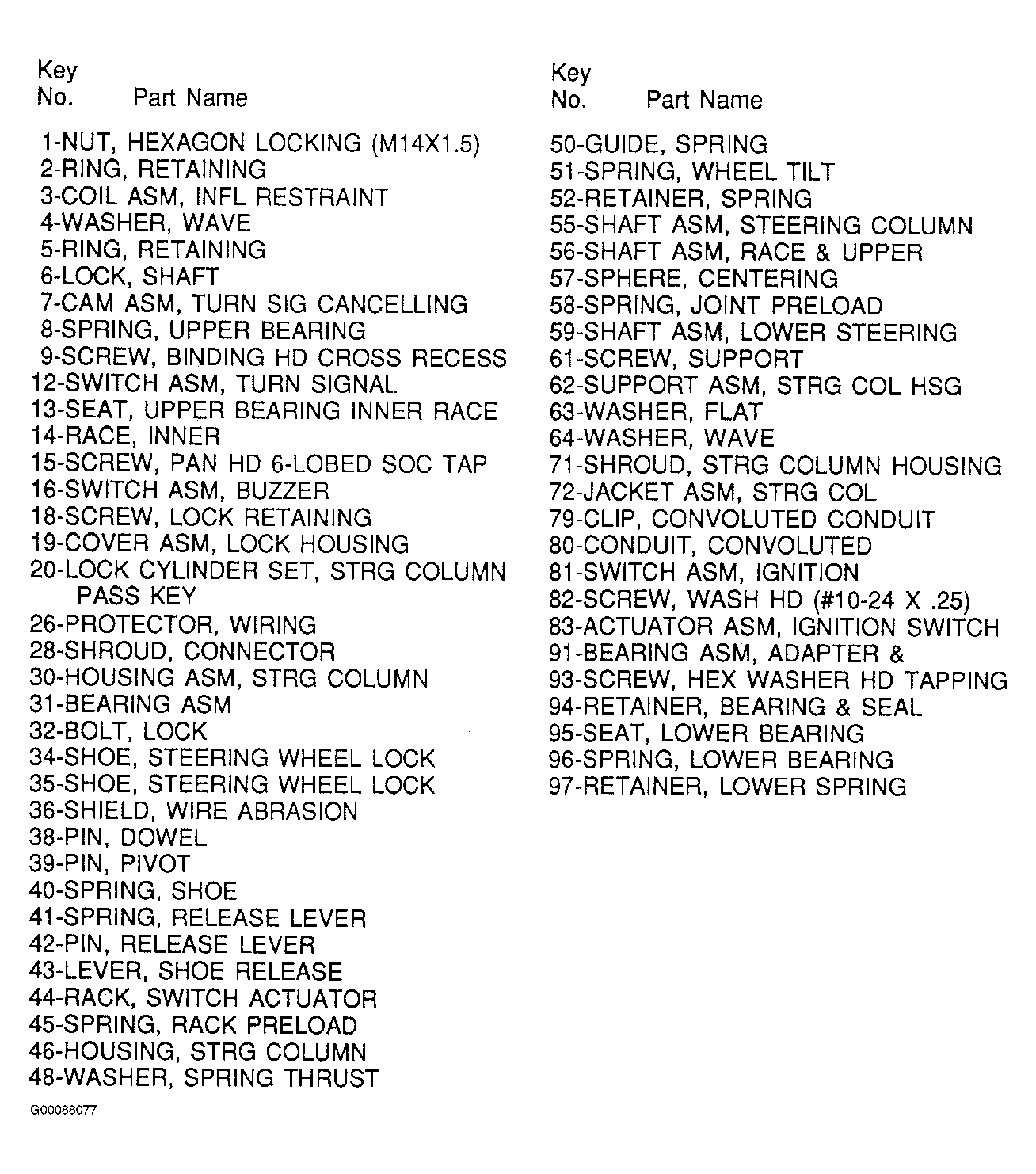

Fig 2: Exploded View Of Tilt Steering Column, Legend (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
