Speed Sensor: Installation

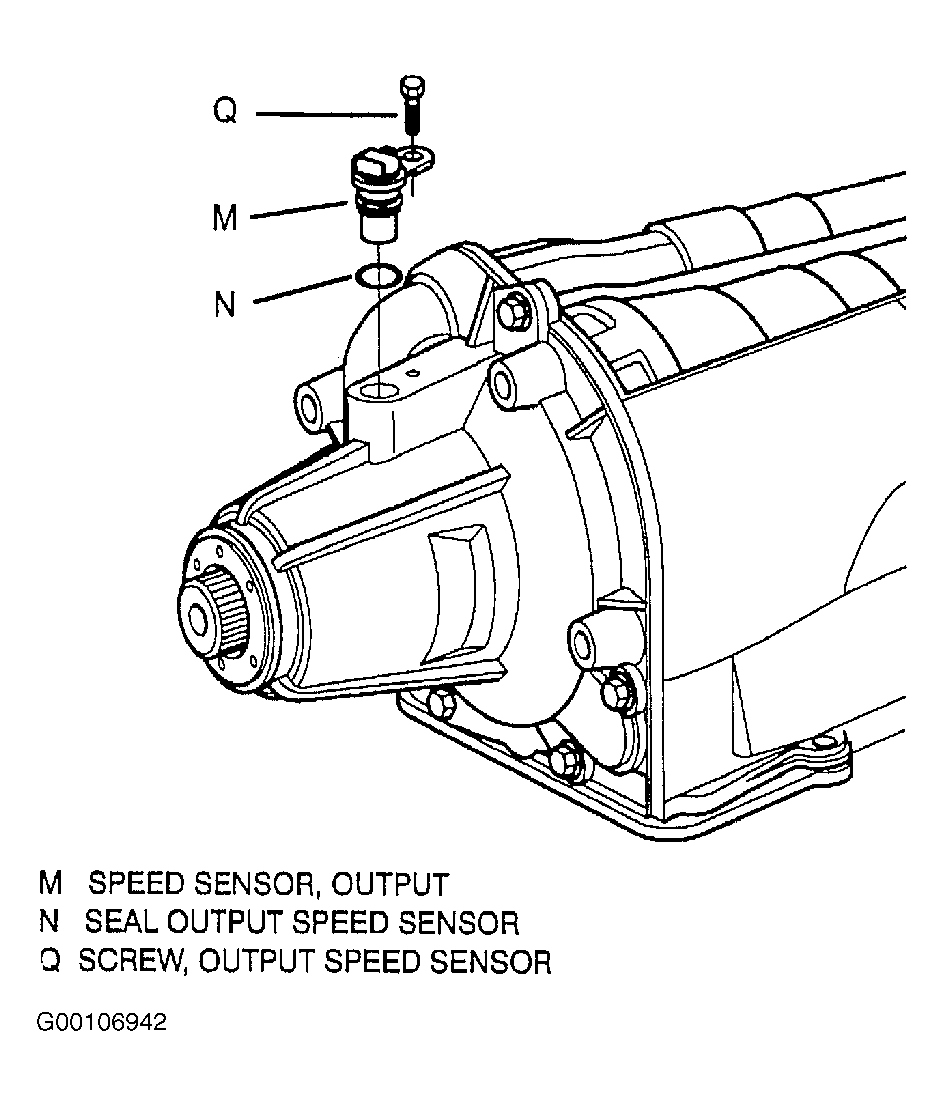

Install sensor and retaining bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS . See Figure .
Install electrical connector at sensor.
Install right front tire and wheel.
Lower vehicle.
