Wiring Diagrams

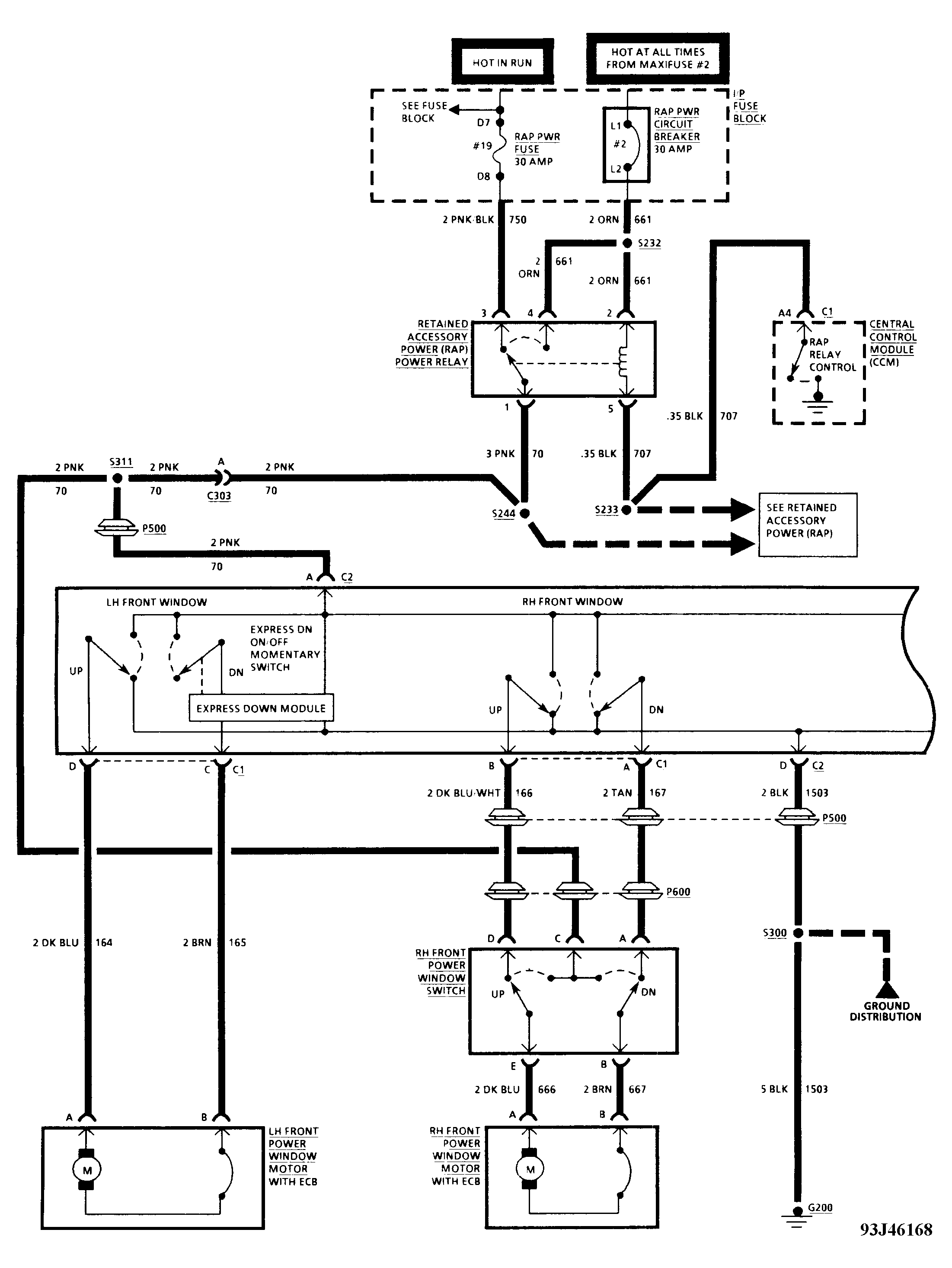

Fig 1: Power Windows Wiring Diagram (1 Of 2)
G93J46168Courtesy of GENERAL MOTORS CORP.

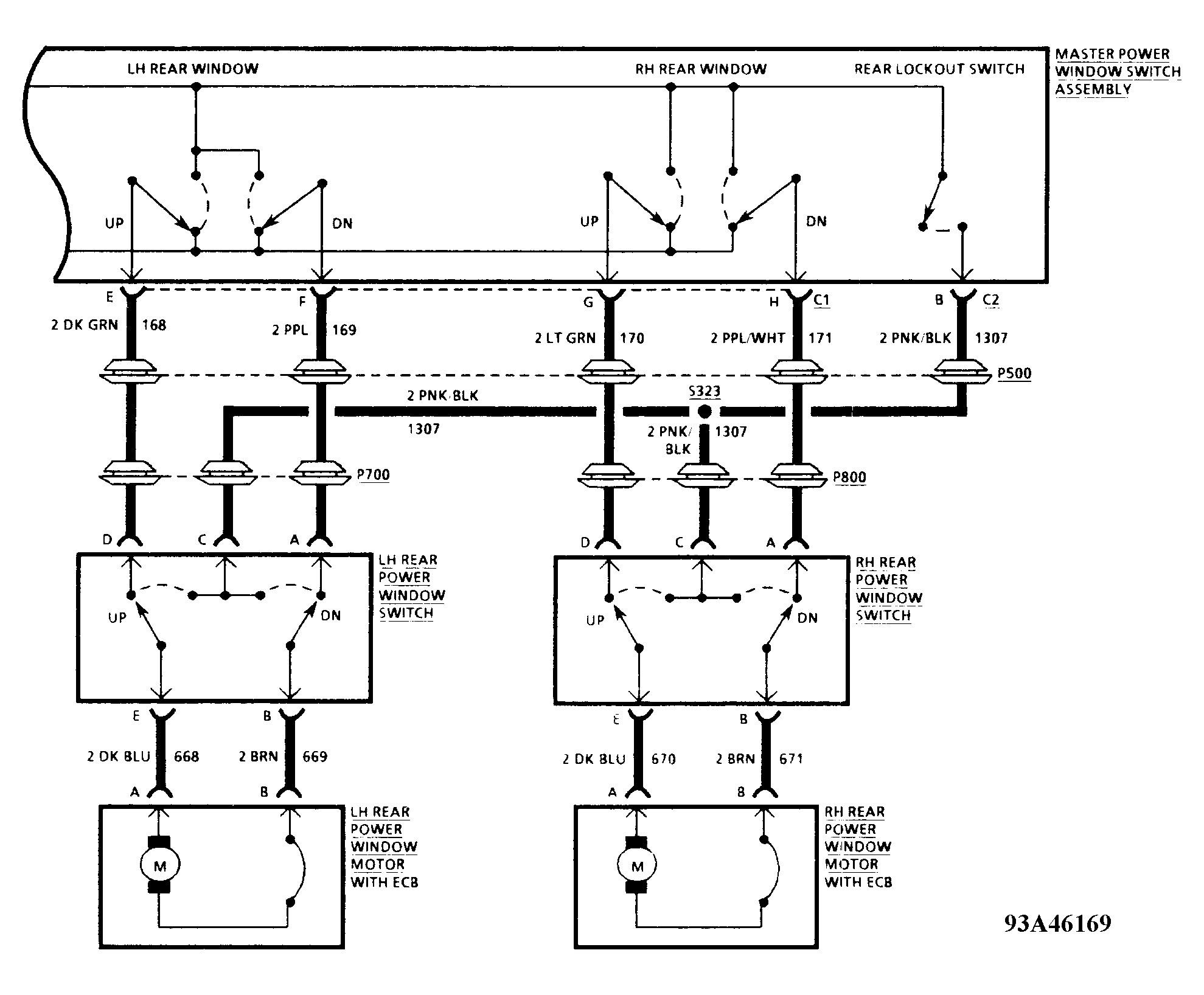

Fig 2: Power Windows Wiring Diagram (2 Of 2)
G93A46169Courtesy of GENERAL MOTORS CORP.
