Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| Cooling Fan Relay Block | In right rear engine compartment, on firewall. | ||
| Fuse/Relay Blocks | |||
| Engine Compartment | |||

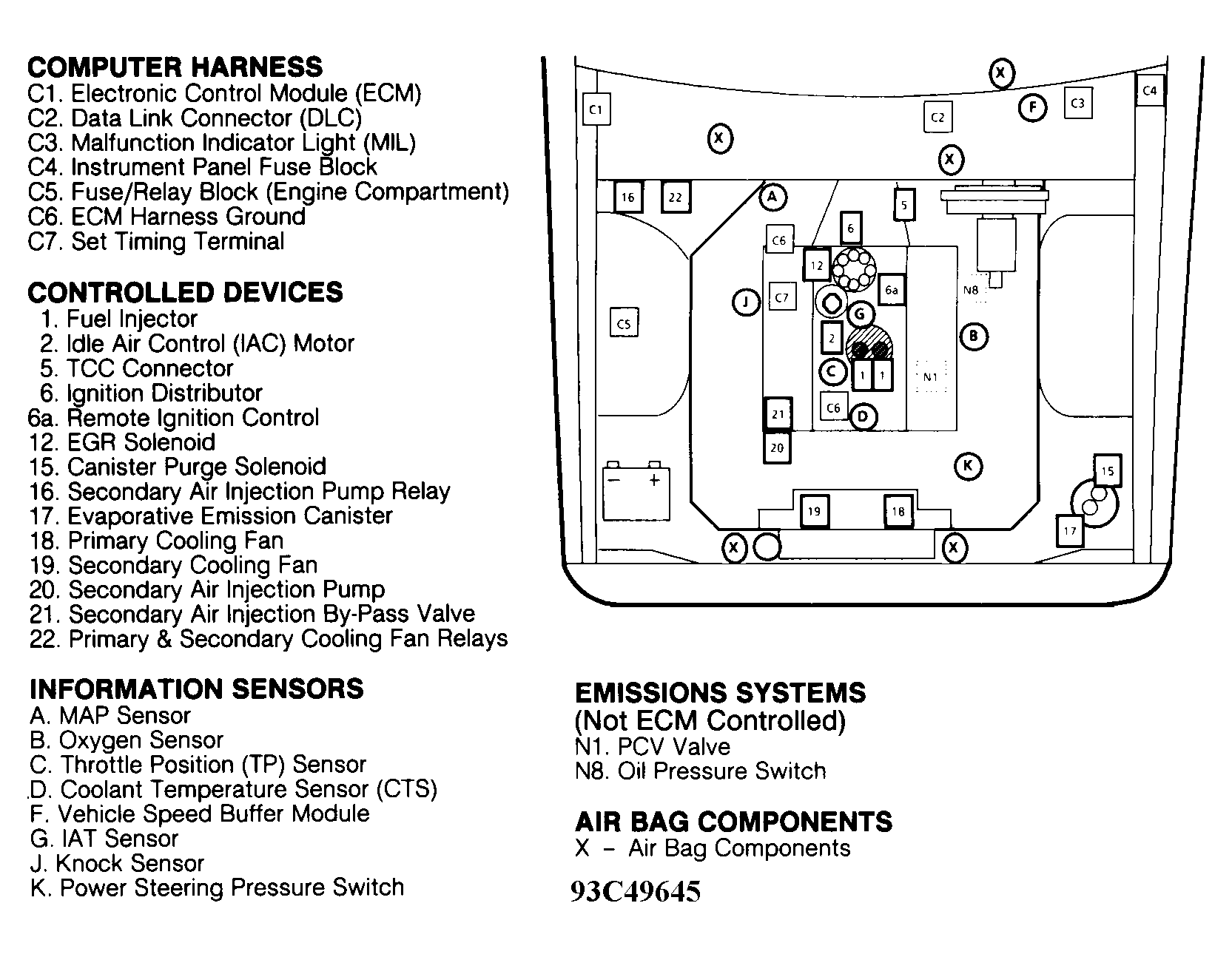

| Overhead Eng. Compartment View | On right wheelwell. See Figure . | ||
| View of Fuse Relay Block | On right wheelwell. See Figure . | ||
| Forward Lights | On front side of left front wheelhouse. | ||
| Instrument Panel Concealed Fuse | Behind instrument panel, left of steering column. | ||
| Instrument Panel Fuse Block | |||
| Overhead Eng. Compartment View | On left side of instrument panel. See Figure . | ||
| Left Side of Instrument Panel Wiring | On left side of instrument panel. See Figure . | ||

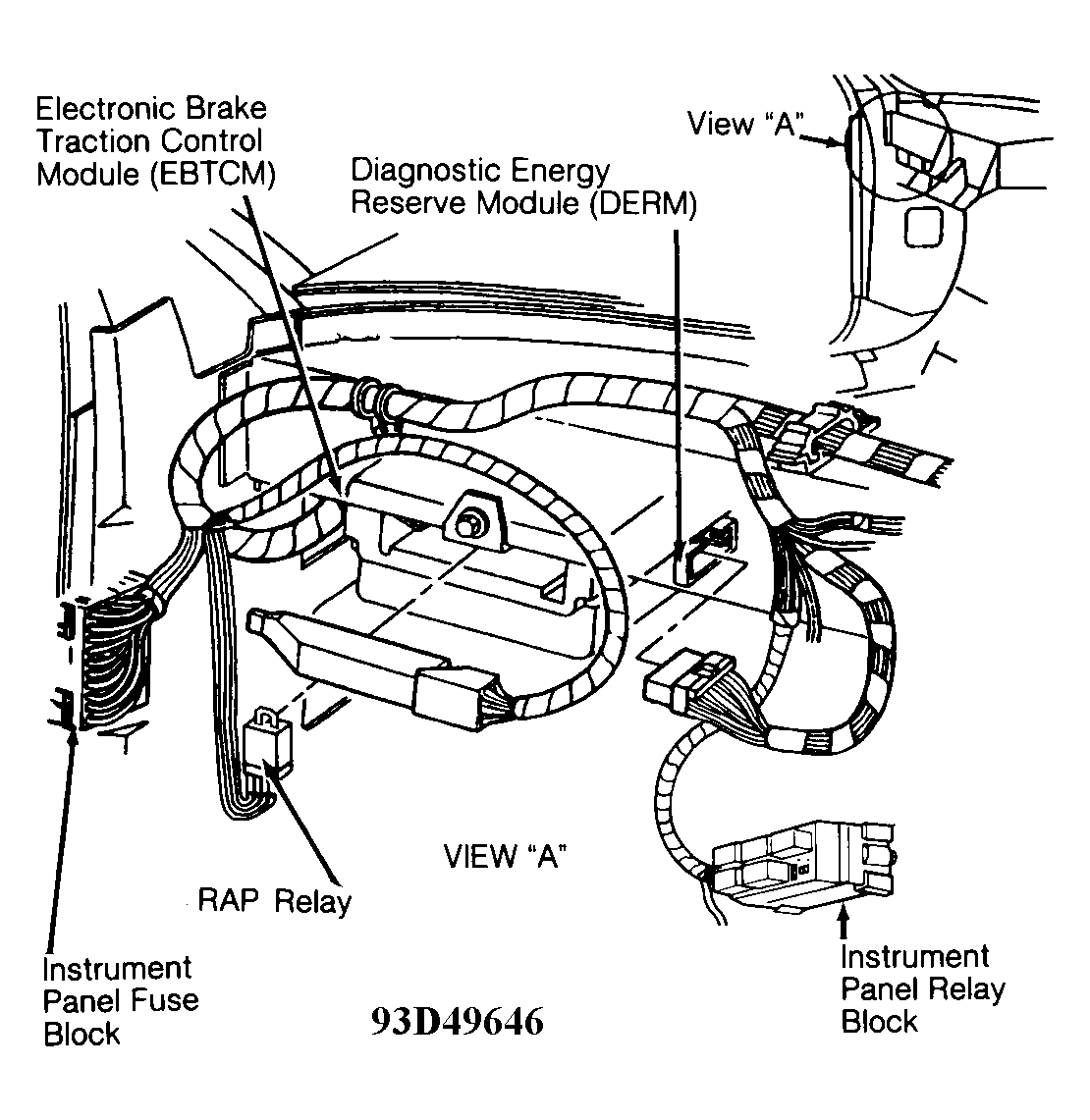

| Instrument Panel Relay Block | Under instrument panel, to left of steering column. See Figure . | ||
