Pcm Code P076 - Transaxle Pressure Control Solenoid Circuit

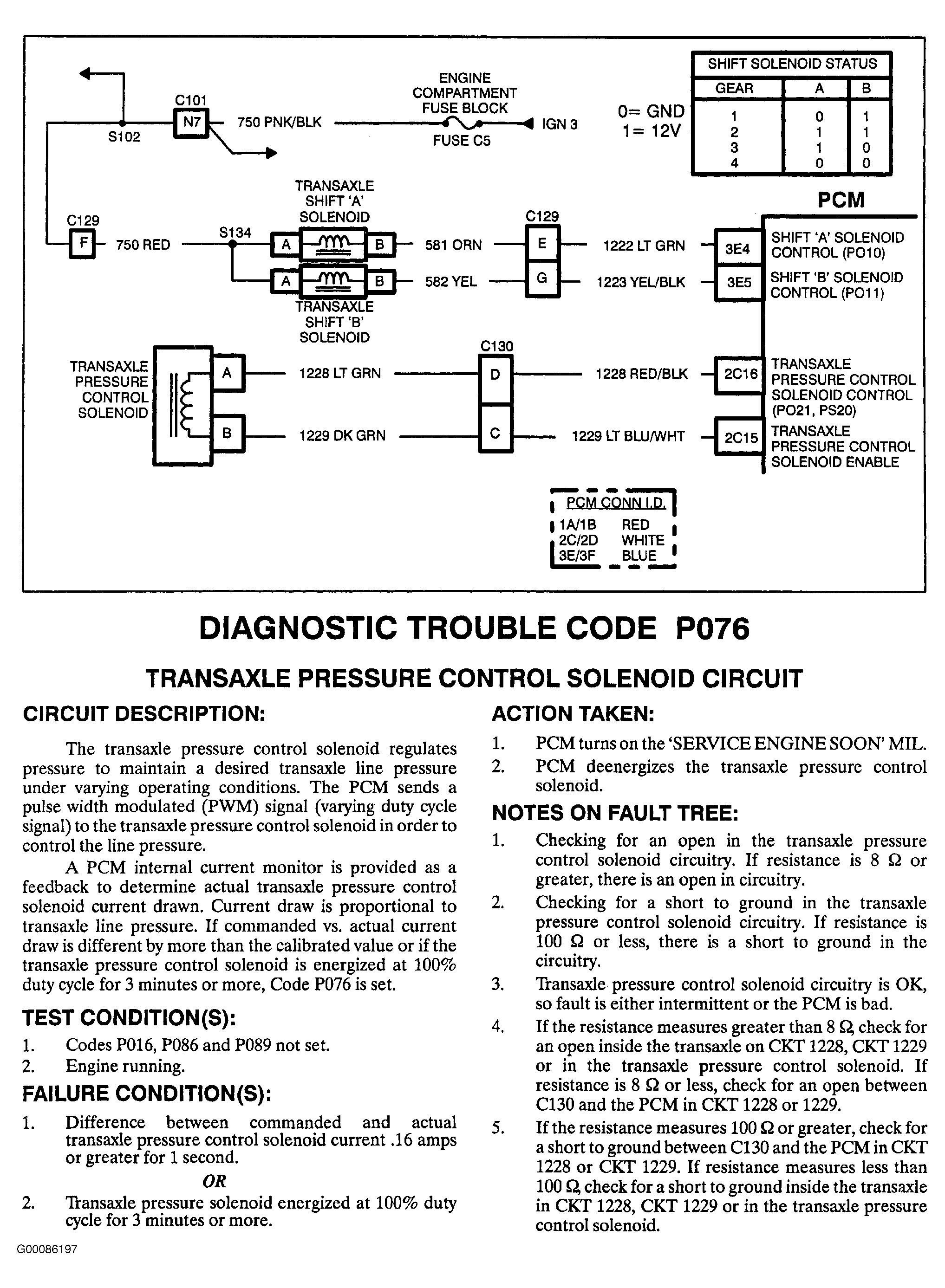

Fig 1: PCM Code P076 Schematic - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

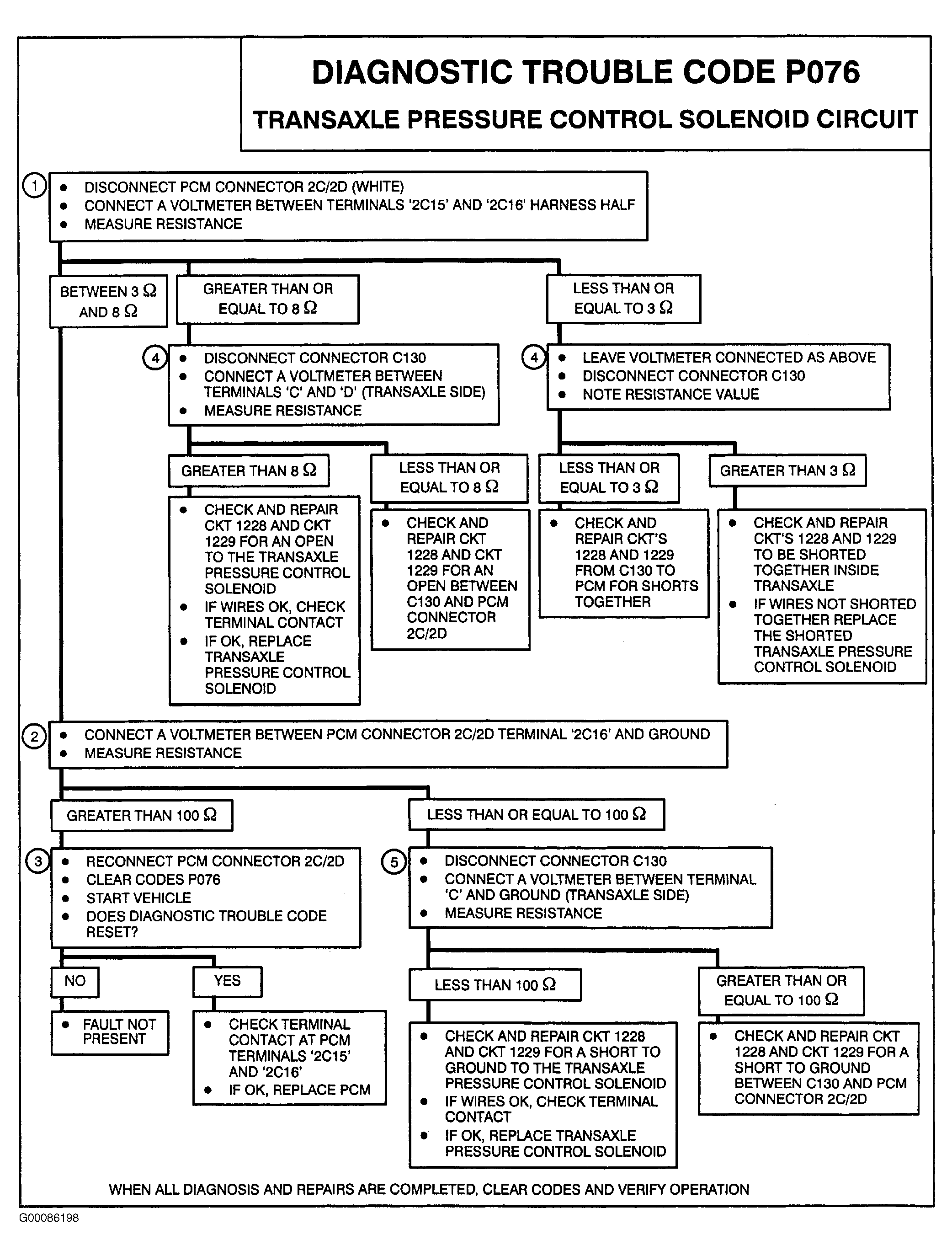

Fig 2: PCM Code P076 Flow Chart - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
