Pcm Code P083 - 24X Reference Signal High

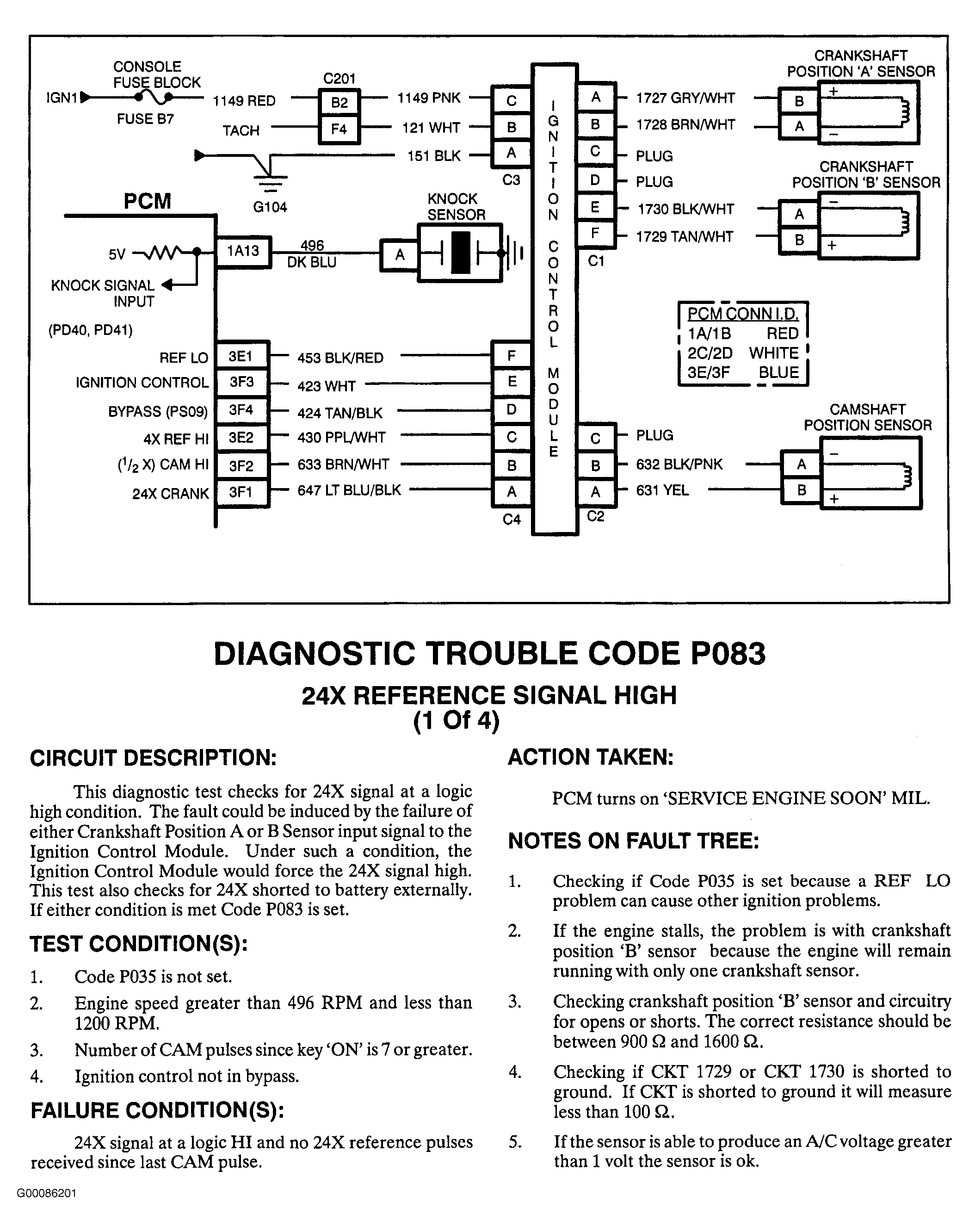

Fig 1: PCM Code P083 Schematic - (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

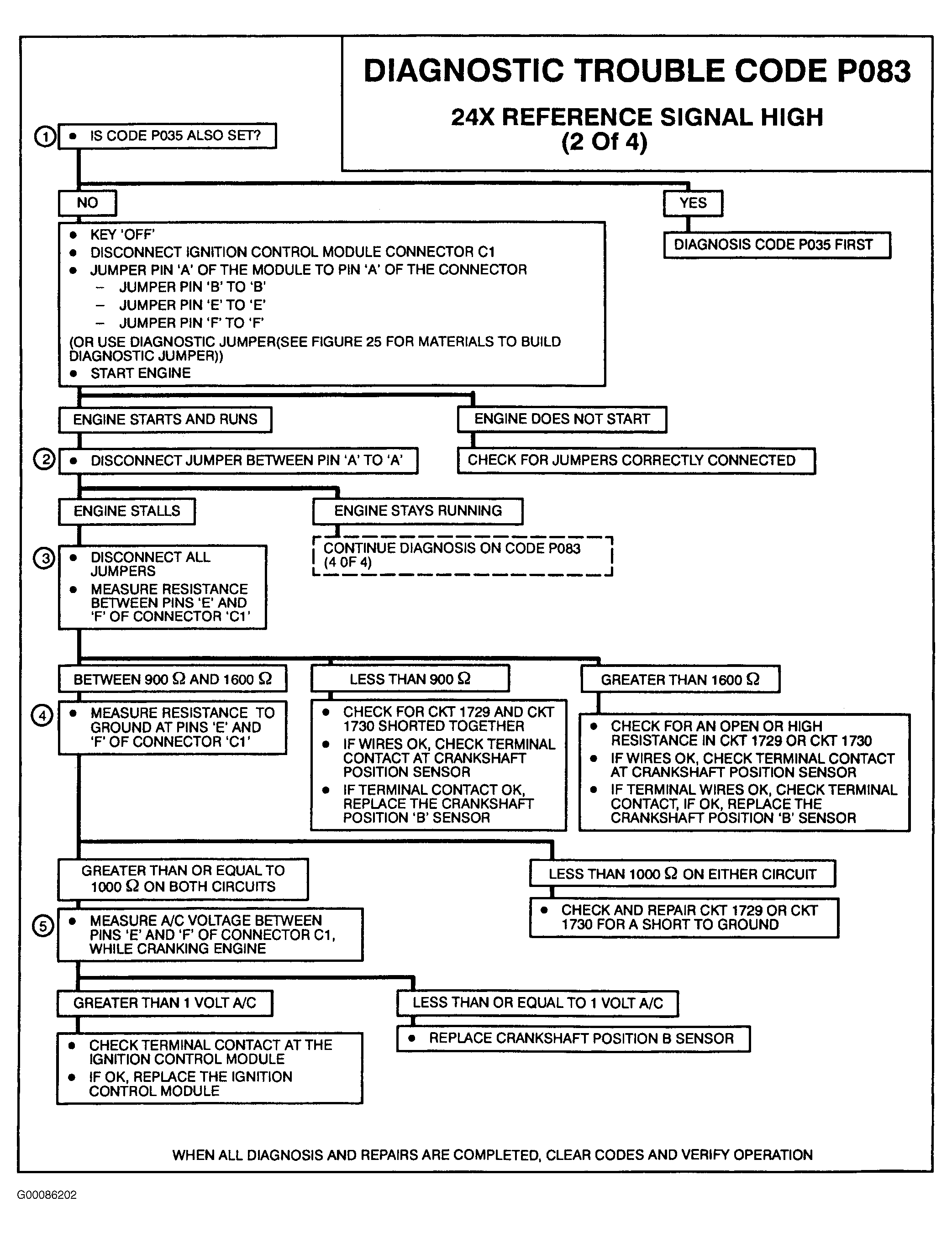

Fig 2: PCM Code P083 Flow Chart - (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

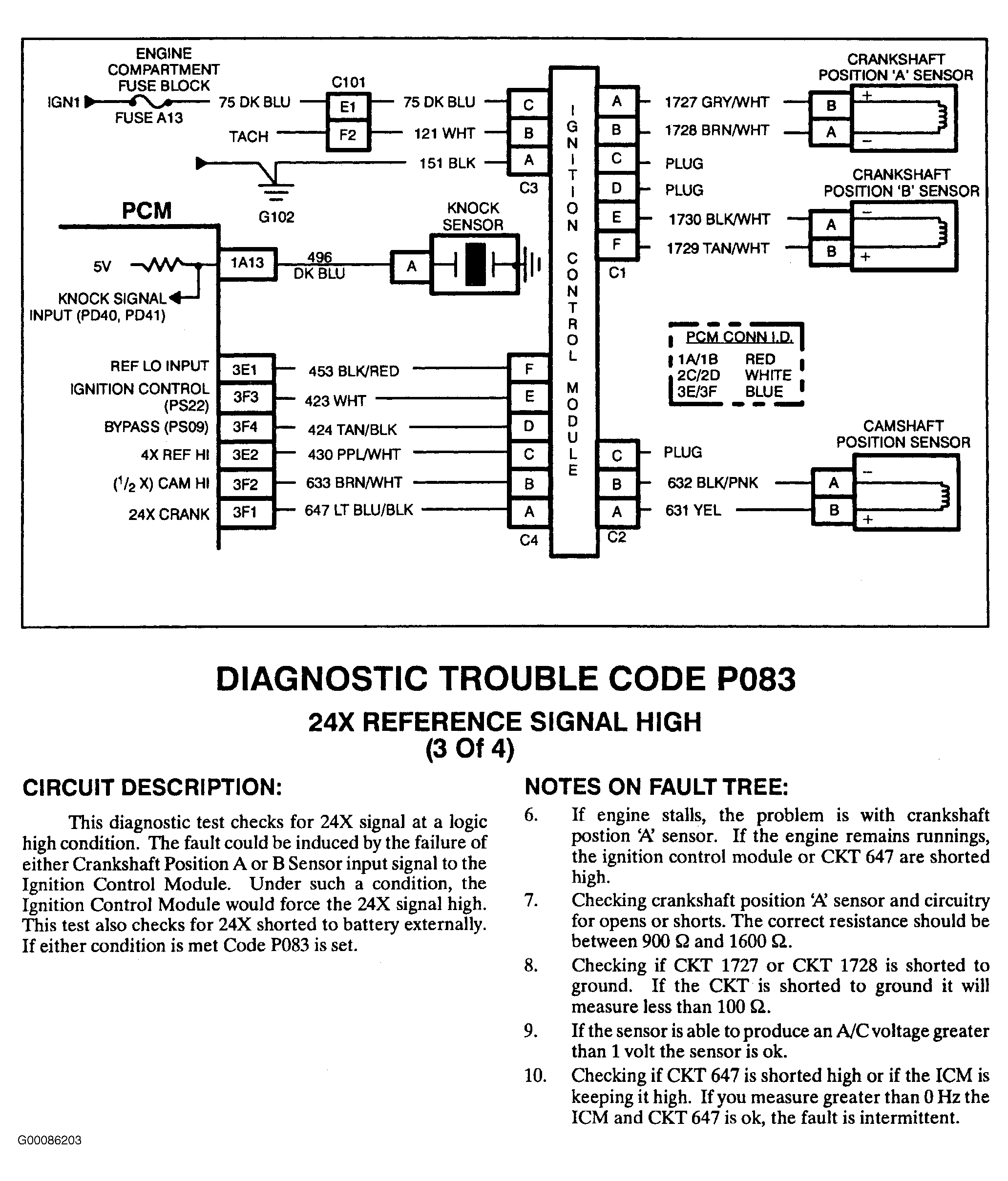

Fig 3: PCM Code P083 Schematic - (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

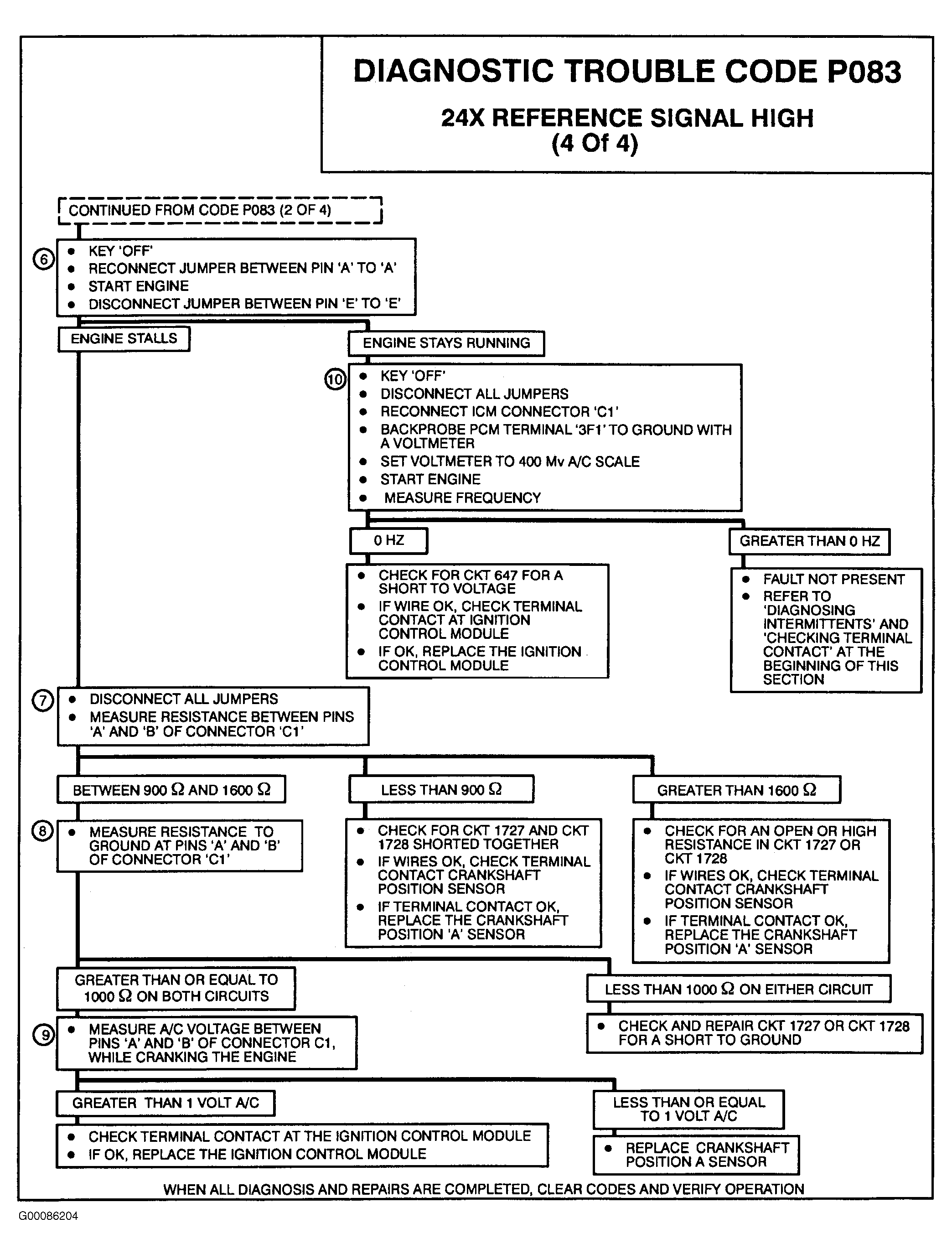

Fig 4: PCM Code P083 Flow Chart - (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
