Status Lights Display

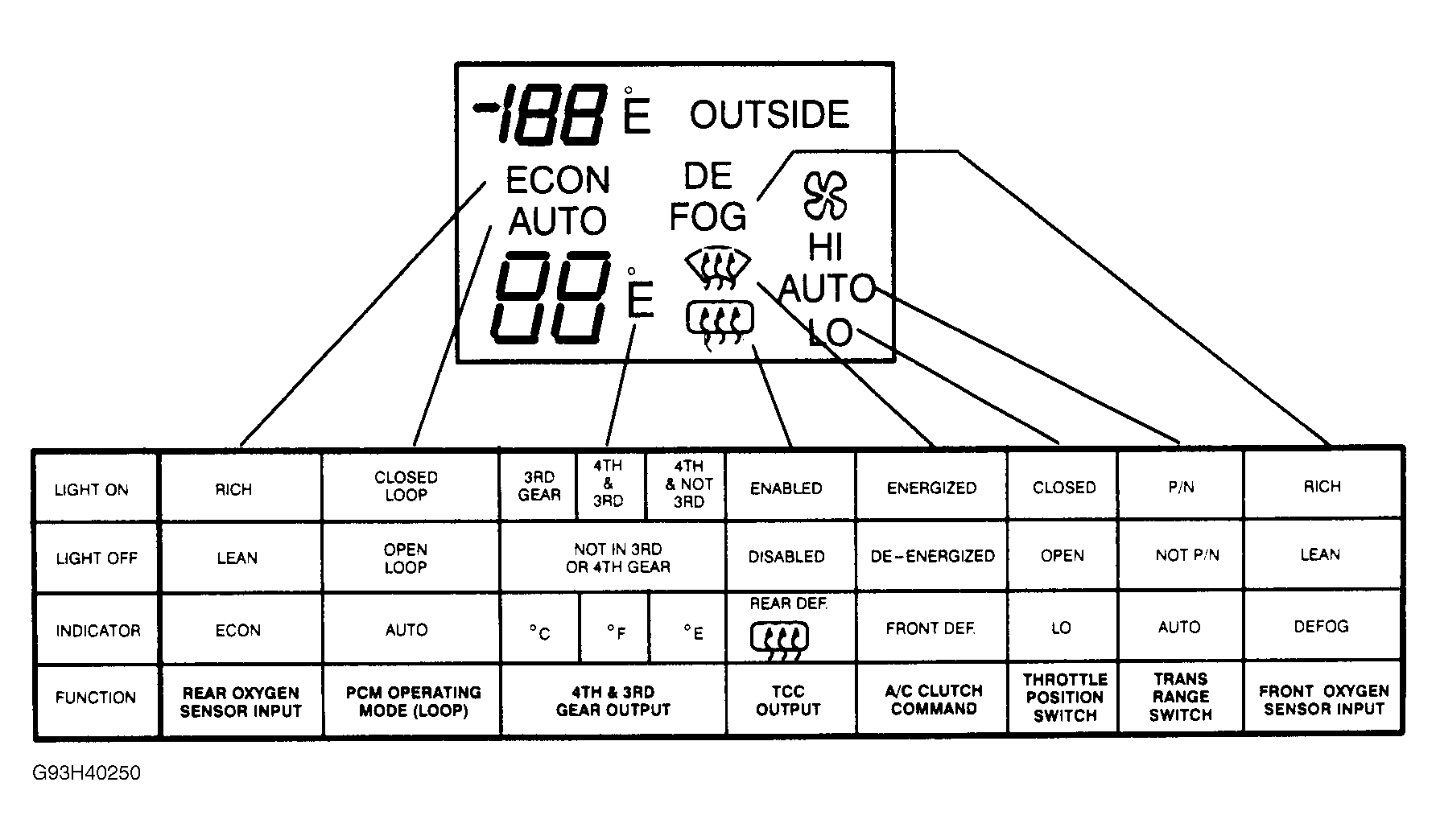

Upon entering PCM system level of self-diagnostic mode, indicator lights on DIC automatically indicate operational status of TCC, certain emission control components and A/C compressor operation. Operational status of these components is indicated by corresponding status light being on or off. See Fig 1 .
