Pcm Code P081 - Cam To 4X Reference Correlation Problem

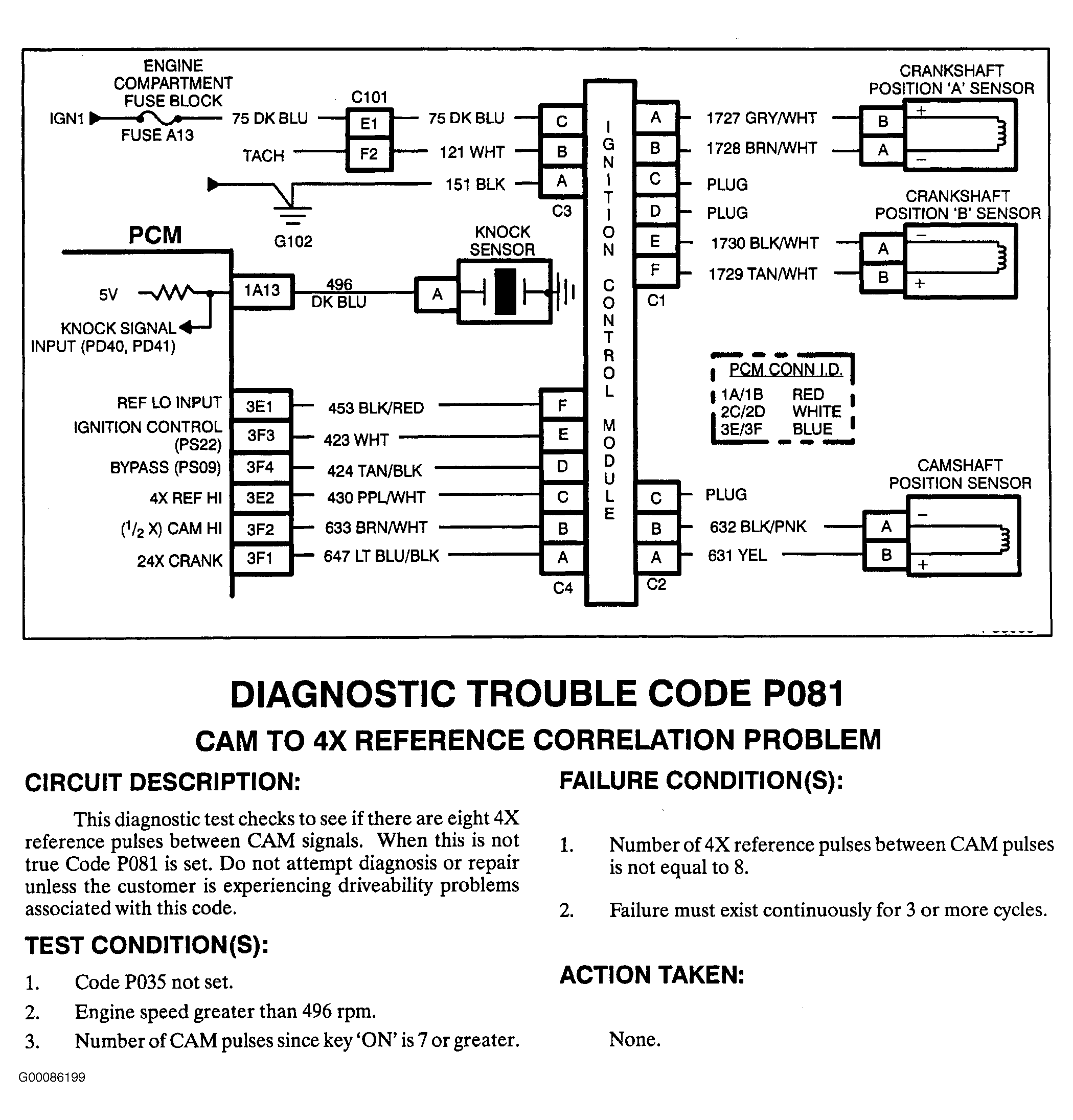

Fig 1: PCM Code P081 Schematic - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

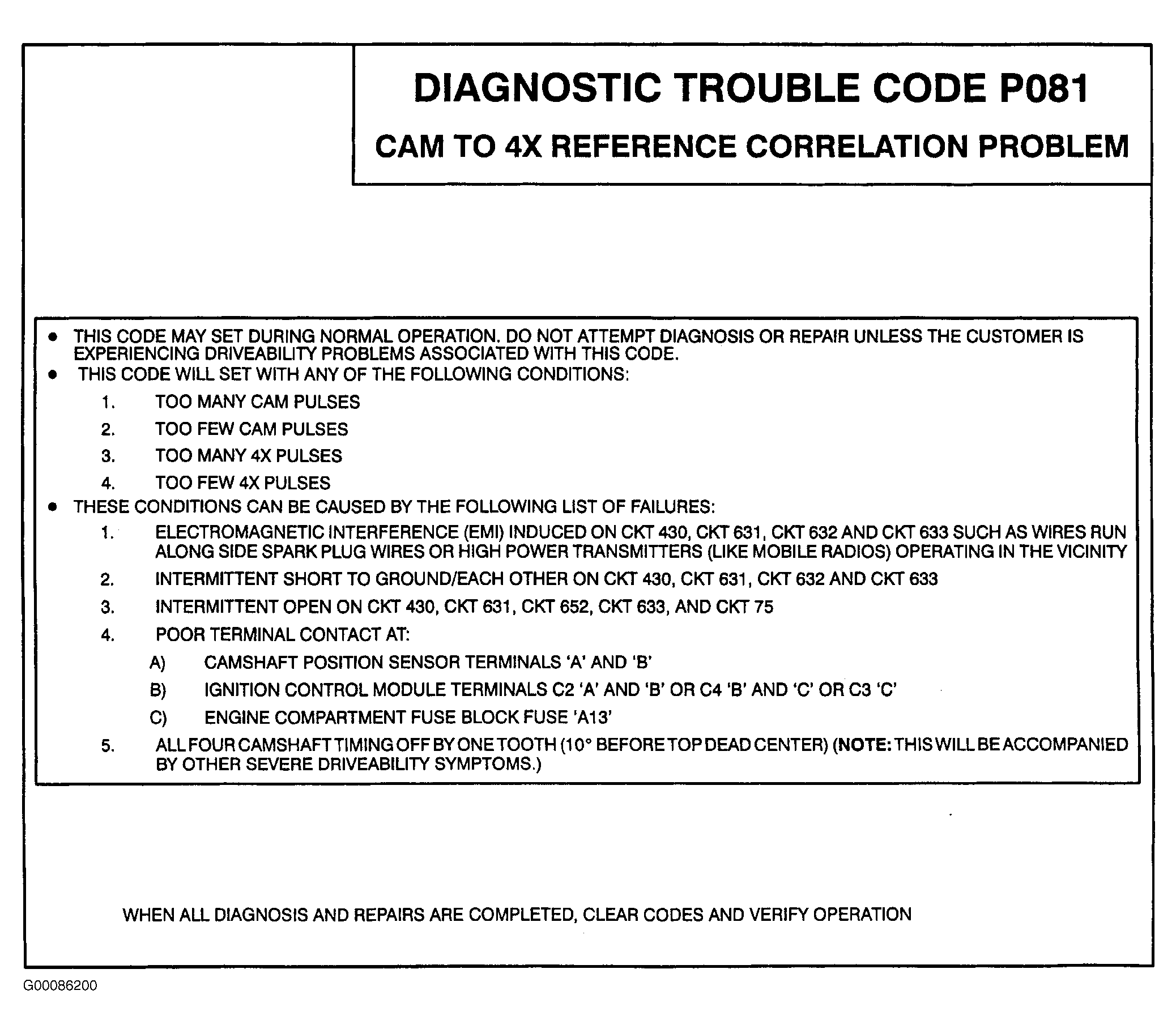

Fig 2: PCM Code P081 Definition - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
