Pcm Code P093 - Traction Control System PWM Link Failure

Fig 1: PCM Code P093 Schmatic - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

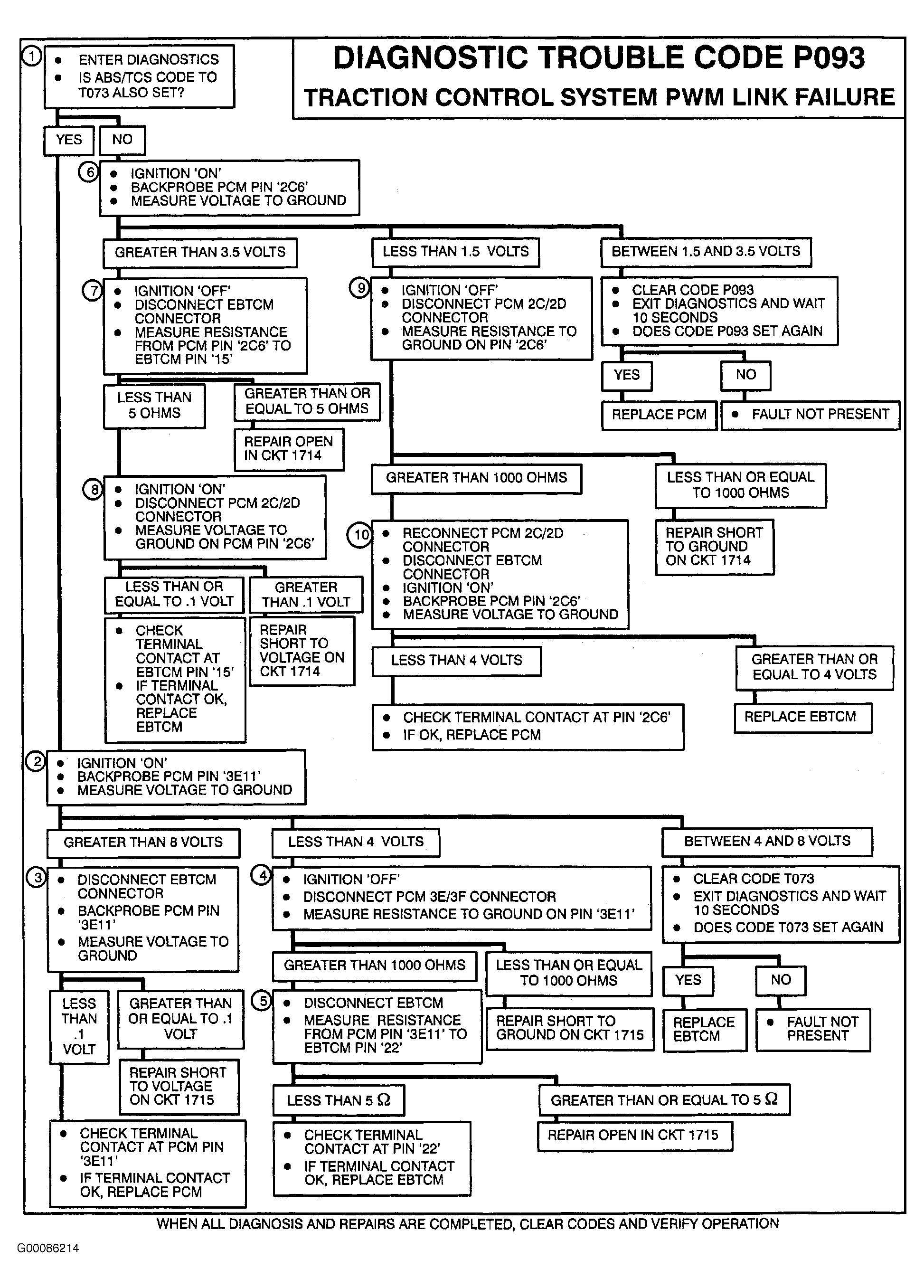

Fig 2: PCM Code P093 Flow Chart - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
