Component Locations
NOTE:
For more information on fuse and circuit breaker identification, see 1992 FUSES & CIRCUIT BREAKERS
, 1993 FUSES & CIRCUIT BREAKERS - FLEETWOOD
or 1993 FUSES & CIRCUIT BREAKERS - DEVILLE
article in ELECTRICAL.
COMPONENT LOCATIONS
| Component | Location |
|---|---|

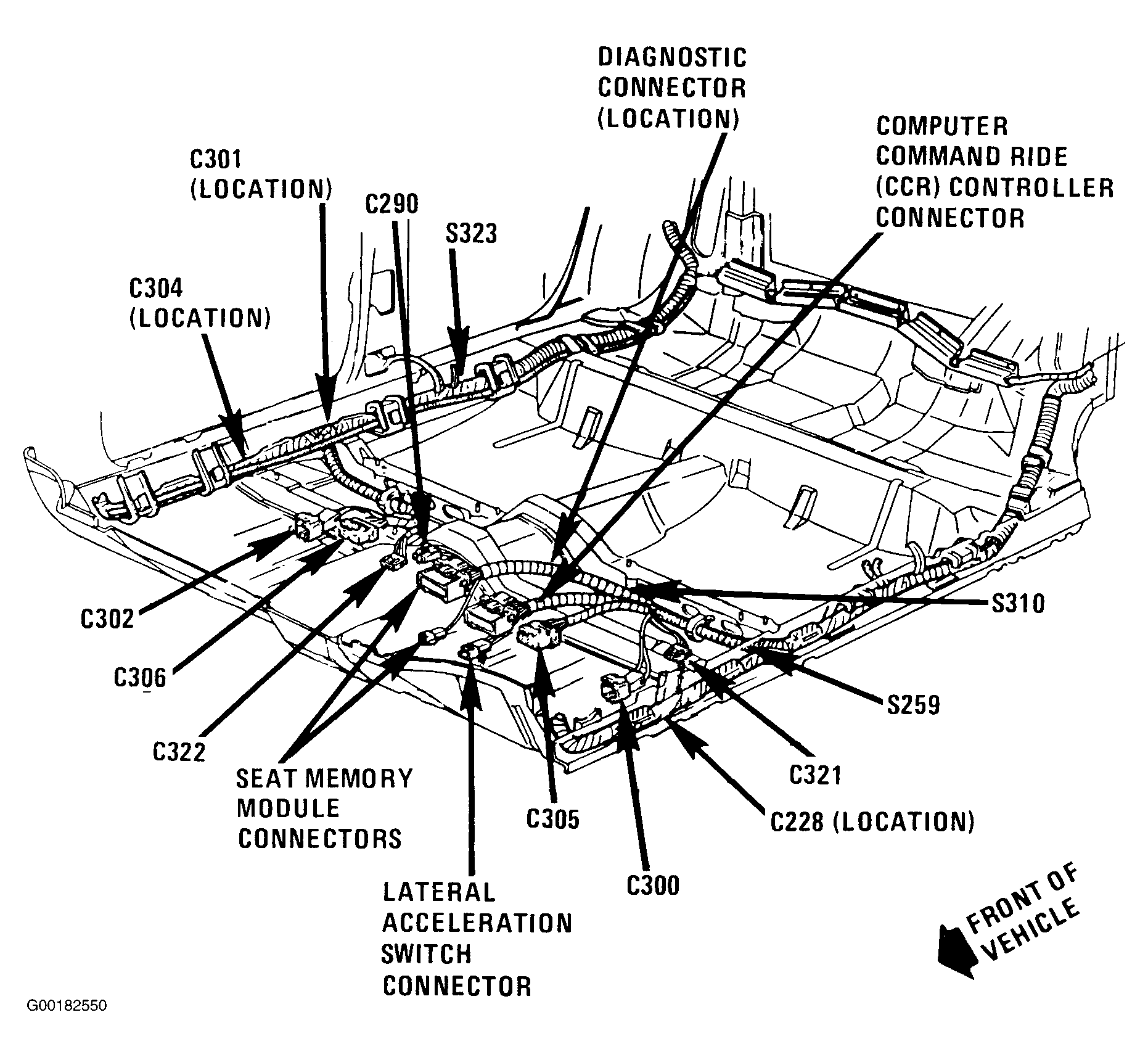

| Diagnostic Connector | Below Left Front Seat, Taped To Body Main Harness. See Fig 1 . |
| Forward/Back Motor | Below Respective Front Seat. See Fig 2 . |
| Forward/Back Motor Transmission Position Sensor | Below Respective Front Seat |
| Front Height Motor | Below Respective Front Seat. See Fig 2 . |
| Front Height Motor Transmission Position Sensor | Below Respective Front Seat |

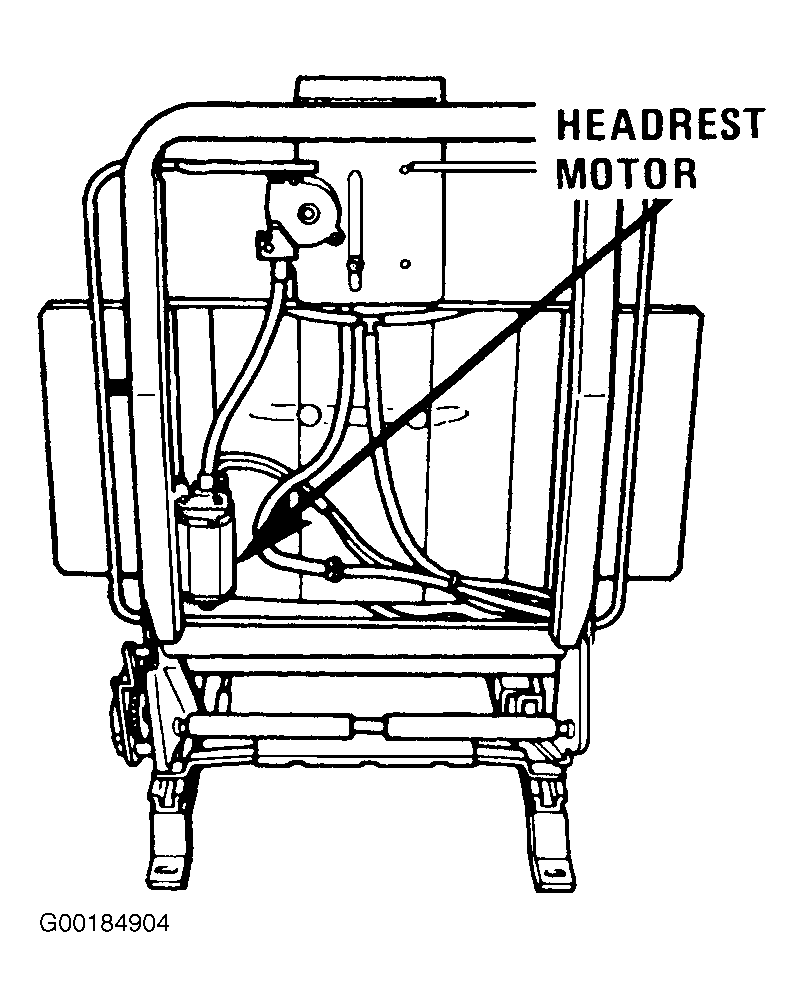

| Headrest Motor | Left Rear Portion Of Respective Front Seat. See Fig 3 . |

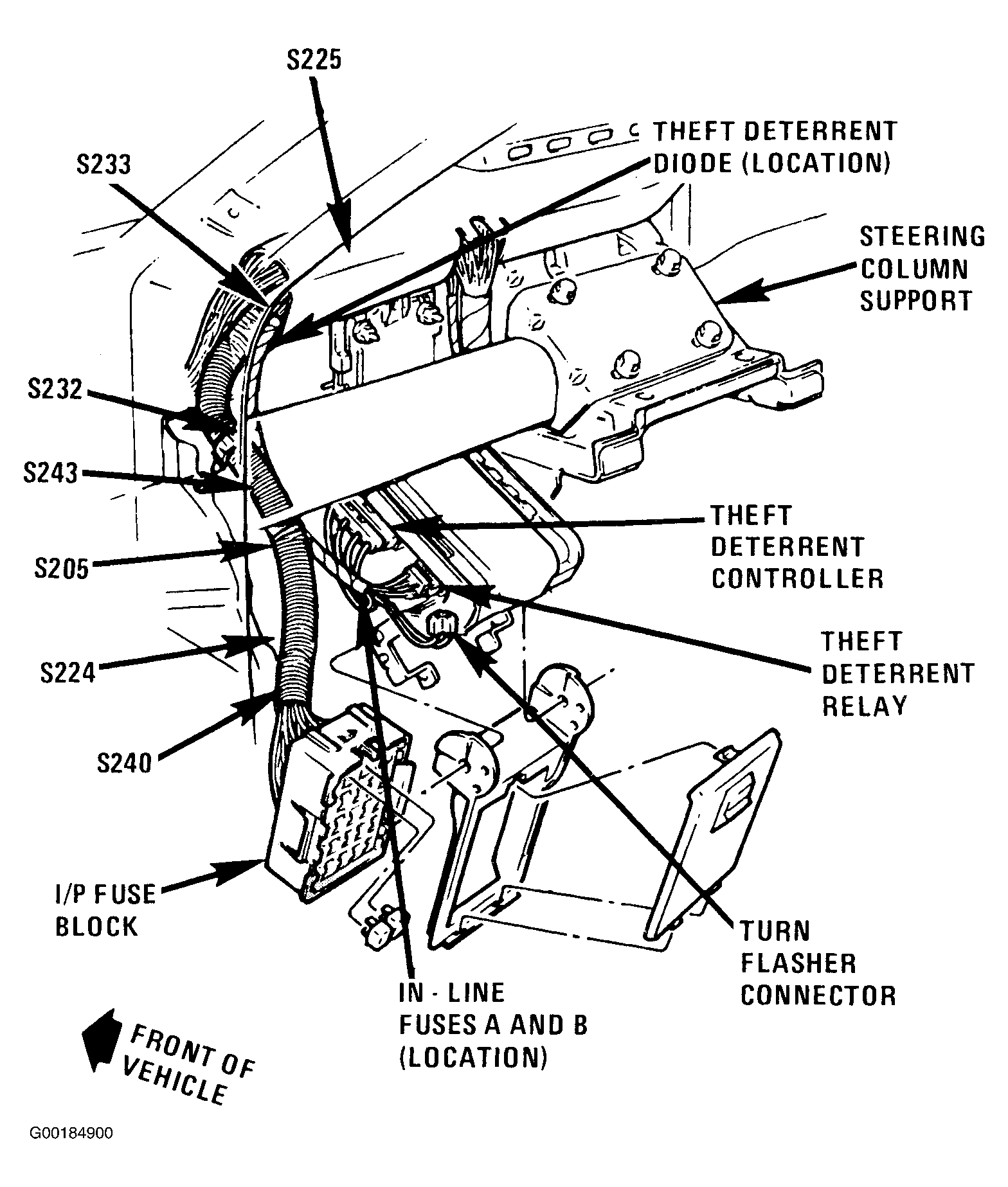

| Instrument Panel (Instrument Panel) Fuse Block | Left Side Of Instrument Panel, Behind Access Door. See Fig 4 . |
| Lower Lumbar Heater | Below Rear Of Respective Front Seat |

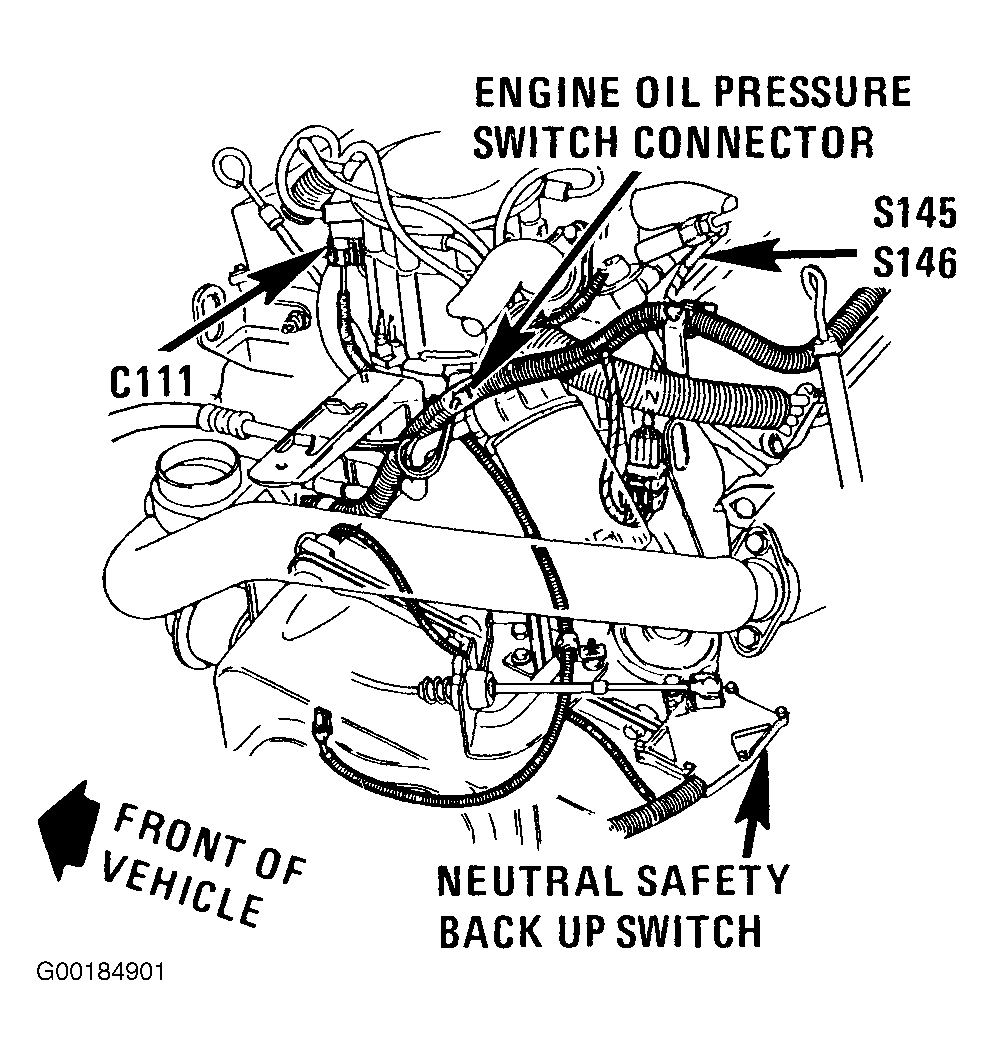

| Neutral Safety Backup Switch | Left Rear Of Engine, Top Of Transaxle. See Fig 5 . |

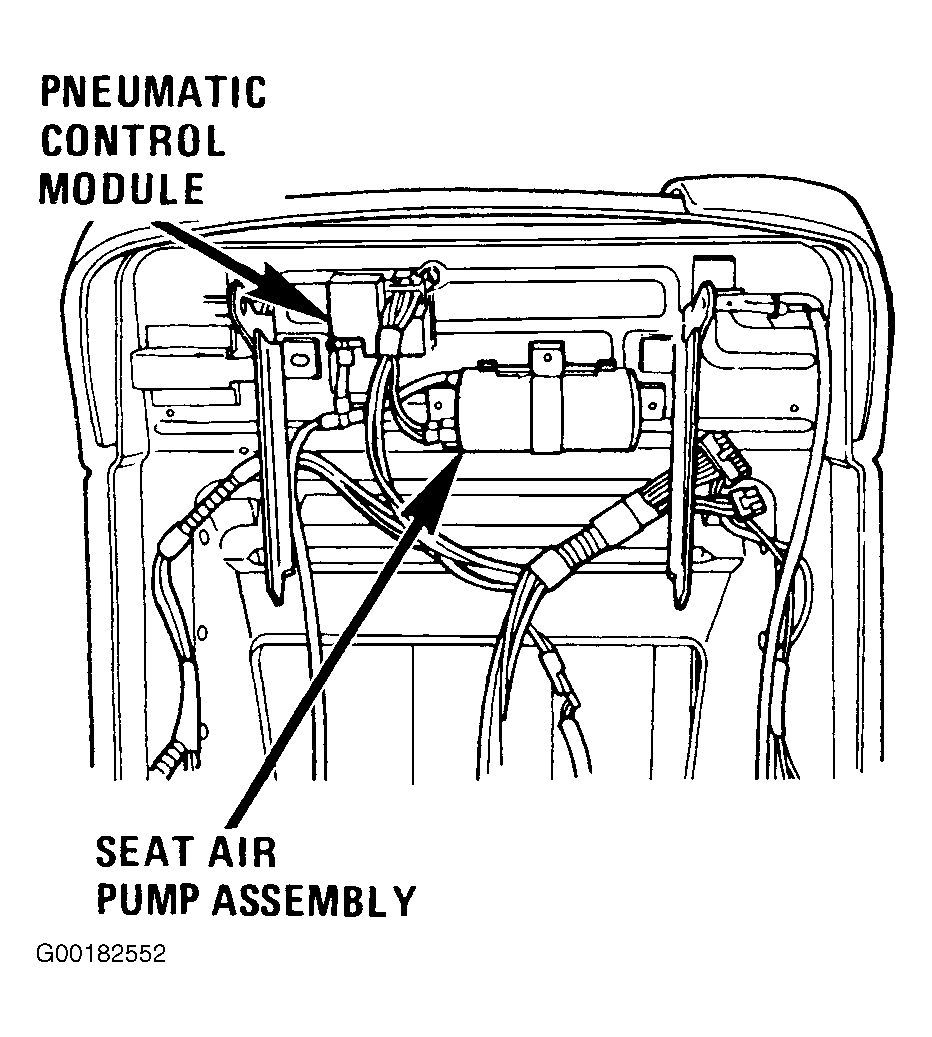

| Pneumatic Control Module | Under Respective Front Seat. See Fig 6 . |
| Rear Height Motor | Below Respective Front Seat. See Fig 2 . |
| Rear Height Motor Transmission Position Sensor | Below Respective Front Seat |
| Seat Air Pump Assembly | Under Respective Front Seat. See Fig 6 . |
| Seat Bottom Heater | Below Rear Of Respective Front Seat |

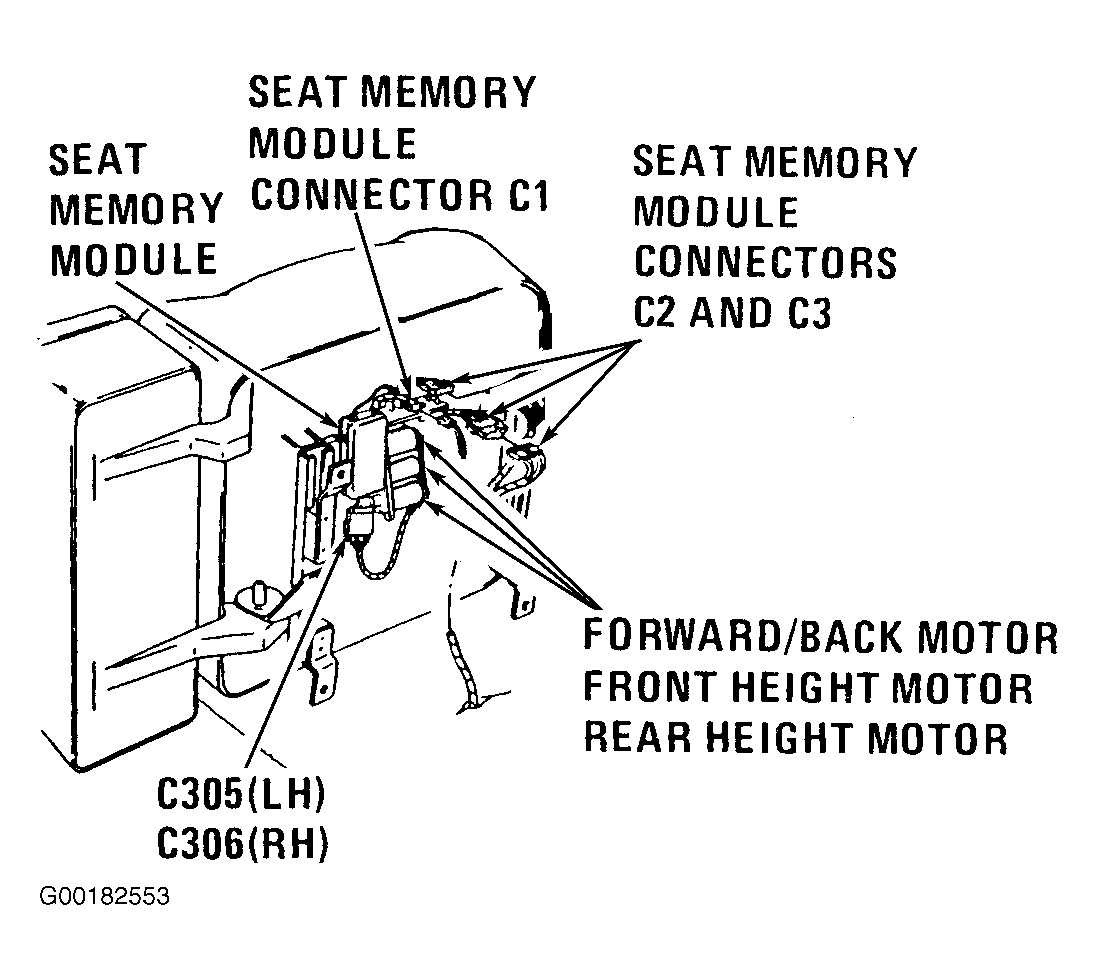

| Seat Memory Module | Under Right Side Of Left Front Seat. See Fig 1 and Fig 2 . |

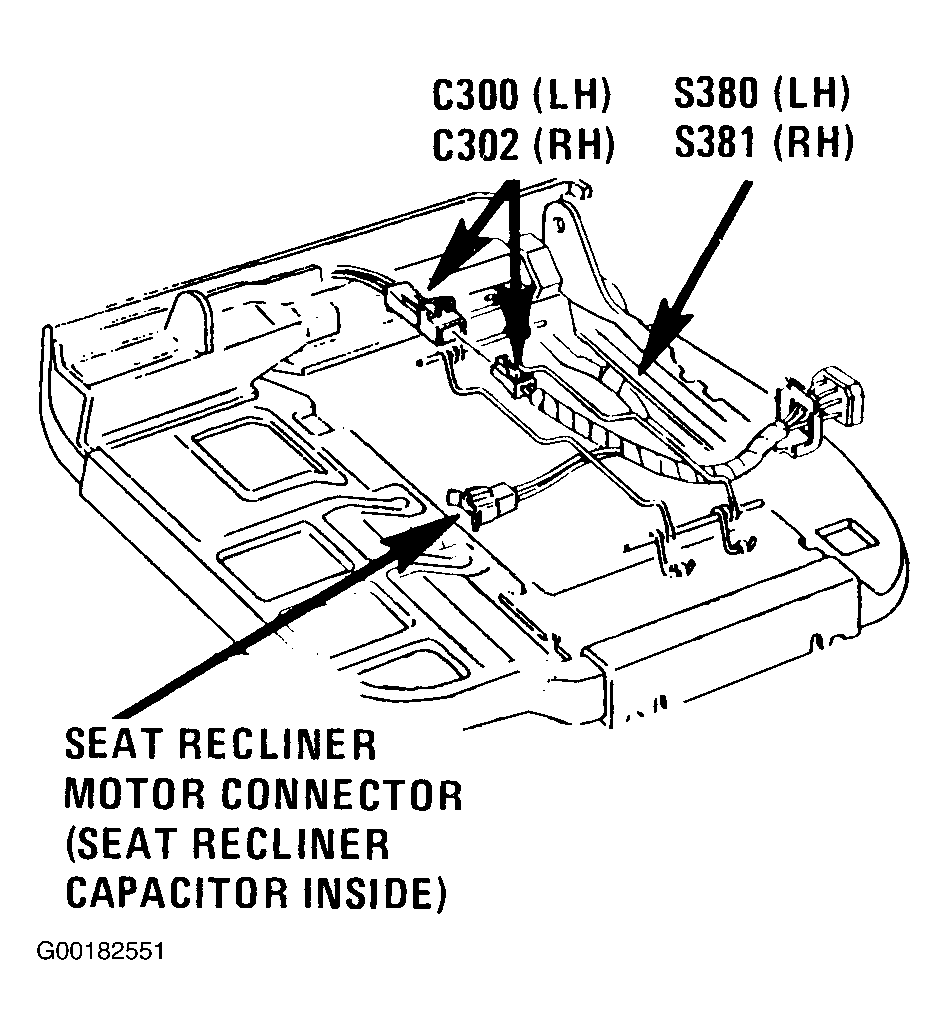

| Seat Recliner Capacitors | Under Respective Front Seats, In Seat Recliner Motor Connectors. See Fig 7 . |
| Seat Recliner Motors | Under Respective Front Seats. See Fig 7 . |
| Seat Solenoid/Valve Assembly | Under Respective Front Seat |
| C109 (7 Cavities) | Left Side Of Engine Compartment, Left Of Transaxle |
| C228 (10 Cavities) | At Left Front Door Sill |
| C290 (8 Cavities) | Below Center Console |
| C300 (2 Cavities) | Below Left Front Seat |
| C301 (10 Cavities) | At Right Front Door Sill |
| C302 (2 Cavities) | Below Right Front Seat |
| C304 (10 Cavities) | Bottom Of Right Shroud, At Door Sill |
| C305 (6 Cavities) | Below Left Front Seat |
| C306 (6 Cavities) | Below Right Front Seat |
| C321 (4 Cavities) | Below Left Front Seat |
| C322 (4 Cavities) | Below Right Front Seat |
| C326 (2 Cavities) | Below Rear Of Left Front Seat |
| C327 (2 Cavities) | Below Rear Of Left Front Seat, At Lower Lumbar Heater |
| C328 (2 Cavities) | Below Rear Of Right Front Seat |
| C329 (2 Cavities) | Below Rear Of Right Front Seat, At Lower Lumbar Heater |

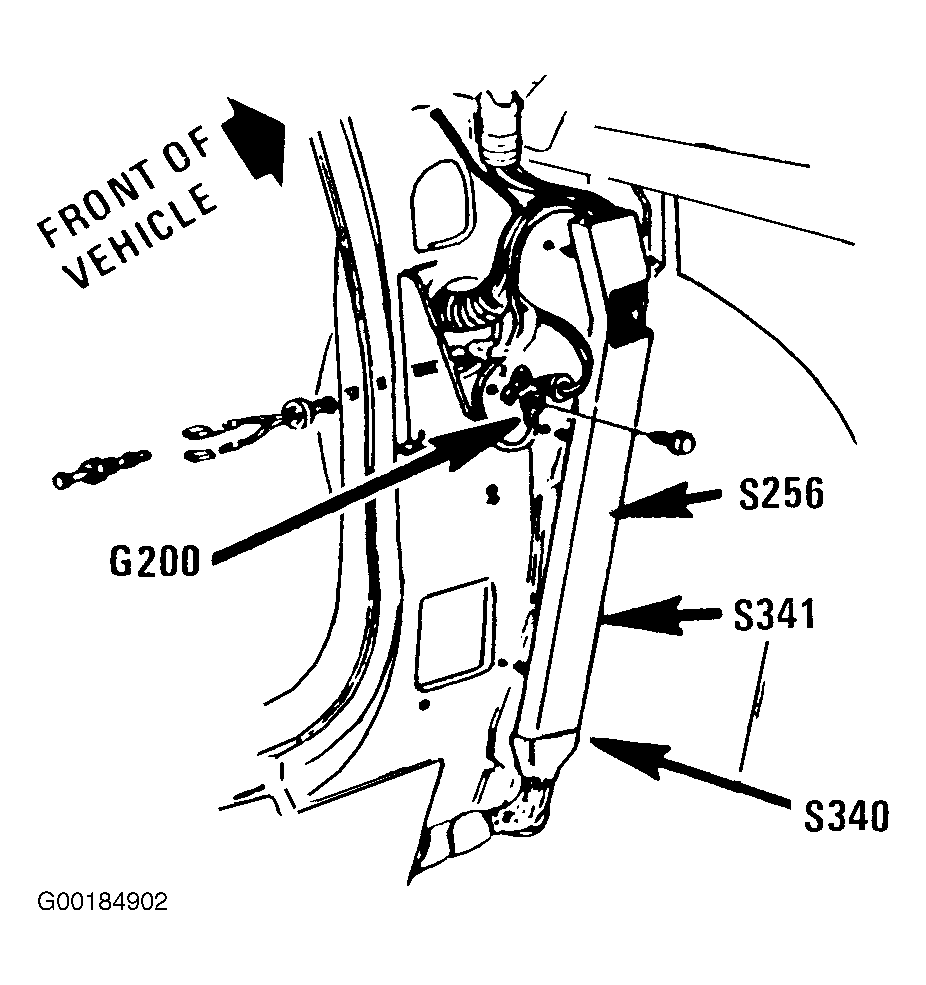

| G200 | Top Of Left Shroud, Behind Kick Panel. See Fig 8 . |

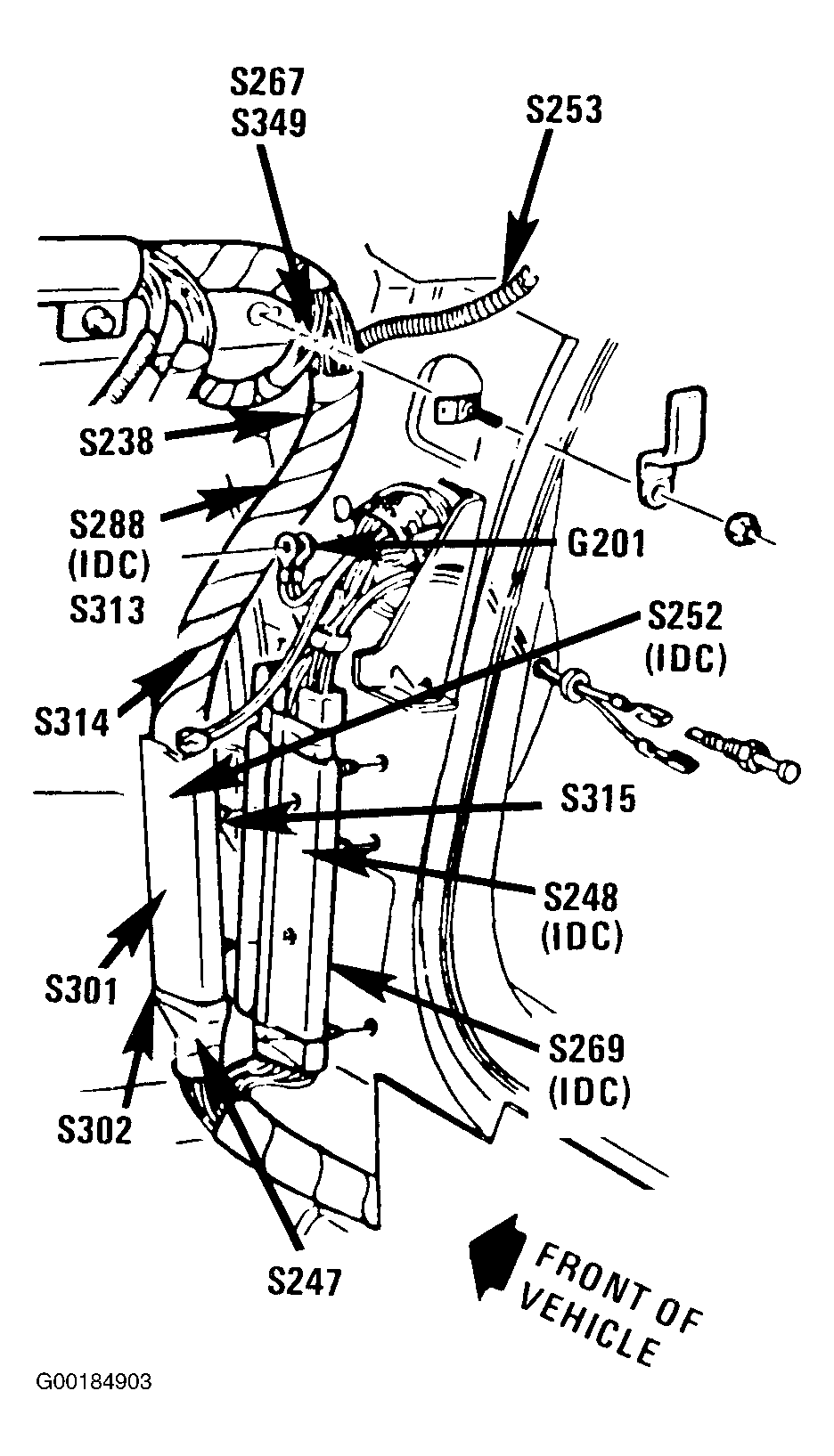

| G201 | Top Of Right Shroud, Behind Kick Panel. See Fig 9 . |
| P100 | Left Rear Of Engine Compartment, Front Of Dash |
| P500 | Front Of Left Front Door, Near Shroud |
| P600 | Front Of Right Front Door, Near Shroud |
| S208 | Body Main Harness, Behind Center Of Instrument Panel |
| S224 | Body Main Harness, Behind Instrument Panel, Left Of Steering Column |
| S225 | Body Main Harness, Behind Fuse Block |
| S229 (IDC) | Body Main Harness, Behind Left Side Of Instrument Panel, In Dash Channel Near Top Of Shroud |
| S238 | Body Main Harness, Top Of Right Shroud |
| S239 | Body Main Harness, Behind Instrument Panel, Left Of Steering Column |
| S248 (IDC) | Body Main Harness, Middle Of Right Shroud |
| S252 (IDC) | Body Main Harness, Middle Of Right Shroud |
| S275 | Memory Seat Jumper Harness, Below Left Front Seat |
| S276 | Memory Seat Jumper Harness, Below Left Front Seat |
| S310 | Body Main Harness, Below Left Front Seat |
| S380 | Power Seat Recliner Harness, Under Left Front Seat |
| S381 | Power Seat Recliner Harness, Under Right Front Seat |
