Notes On Intermittents

Manipulate related wiring while in output function PO07 and listen for solenoid to cycle or stop cycling. Do this slowly as this function cycles solenoid on and off every 3 seconds.

Fig 1: Code P061 Schematic (DeVille)

Courtesy of GENERAL MOTORS CORP.

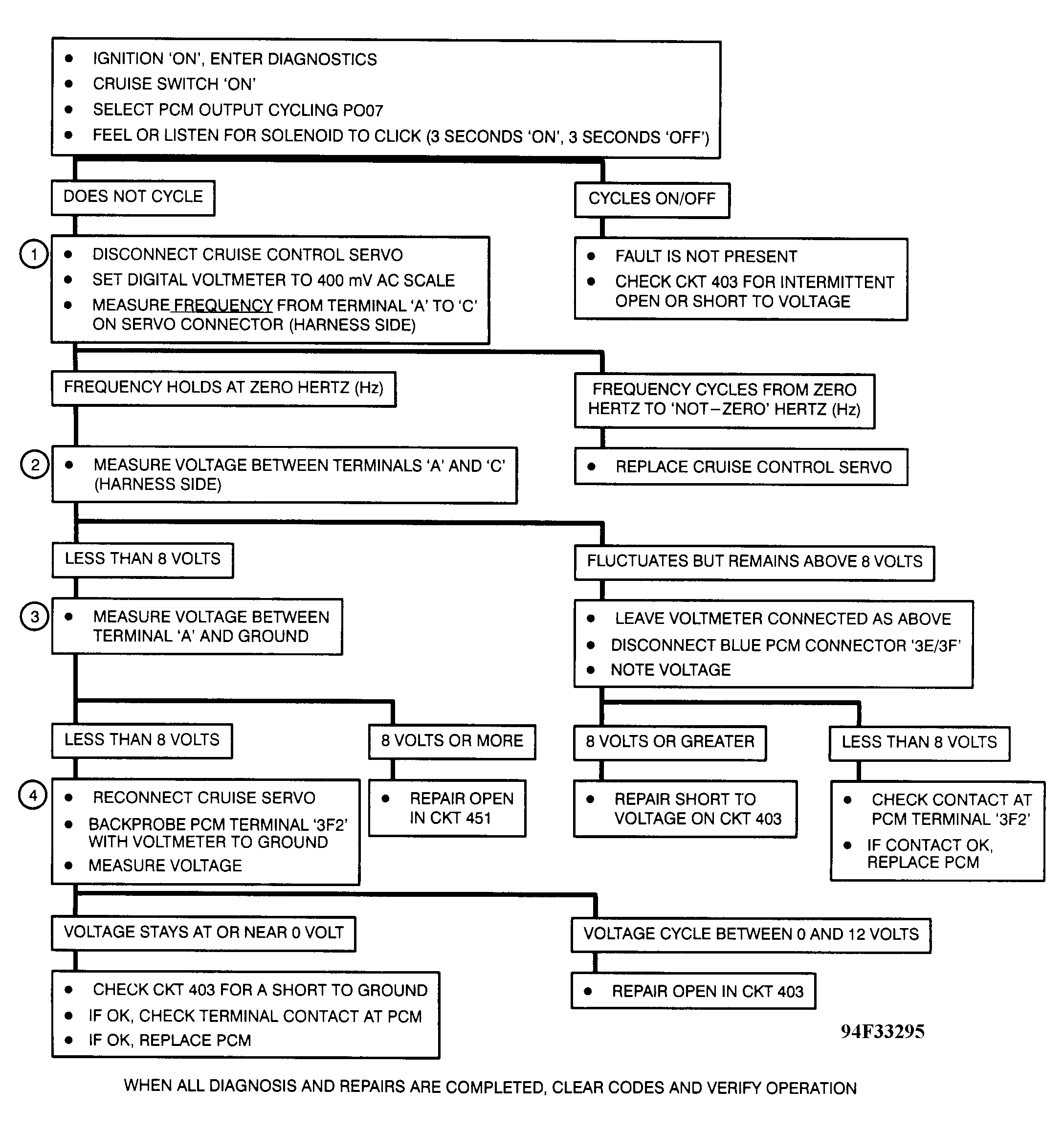

Fig 2: Code P061 Flow Chart (DeVille)

Courtesy of GENERAL MOTORS CORP.
