Abs/TCS Functional Check Charts

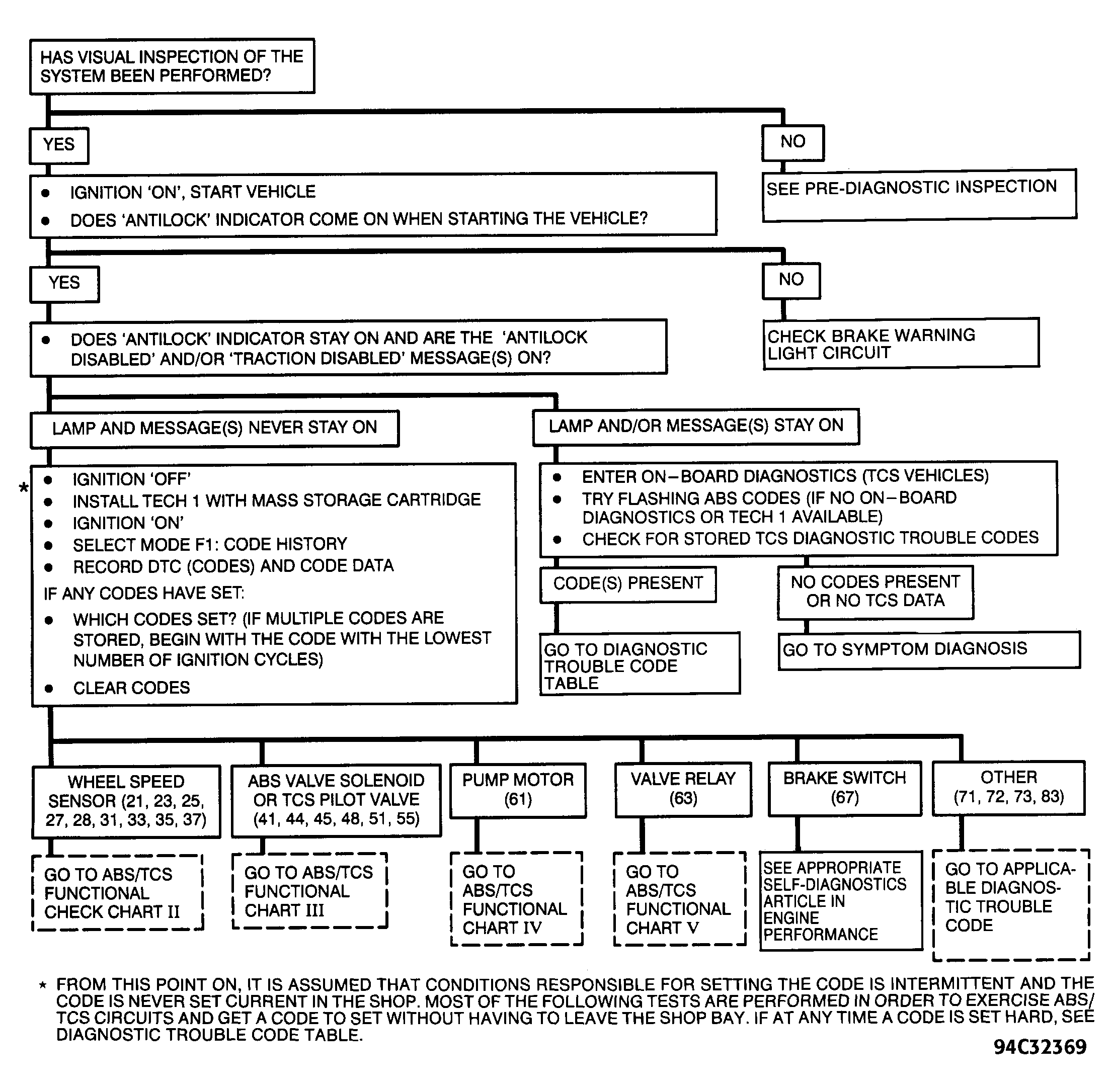

Fig 1: ABS/TCS FUNCTIONAL CHECK CHARTS #1

Courtesy of GENERAL MOTORS CORP.

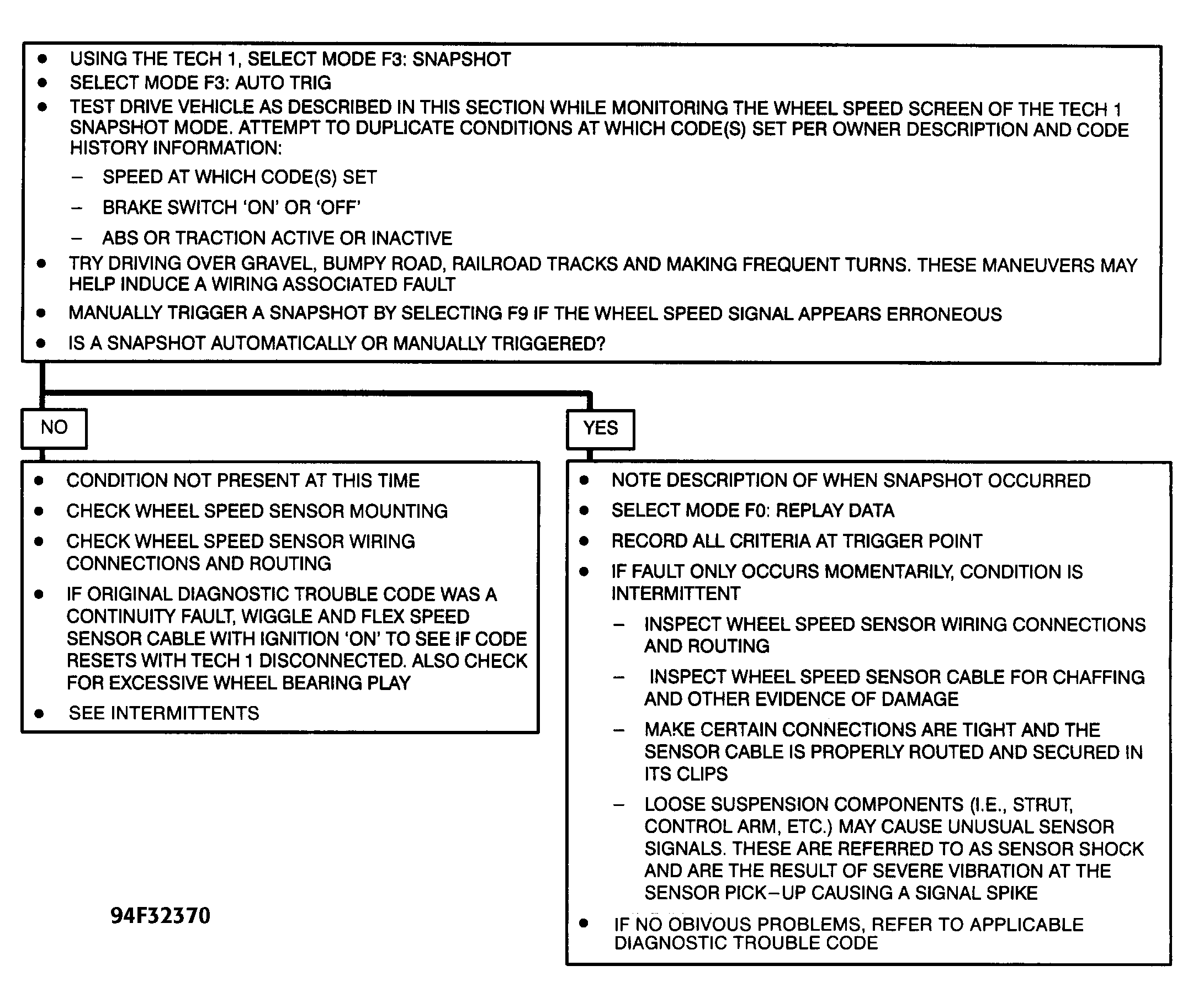

Fig 2: ABS/TCS FUNCTIONAL CHECK CHARTS #2

Courtesy of GENERAL MOTORS CORP.

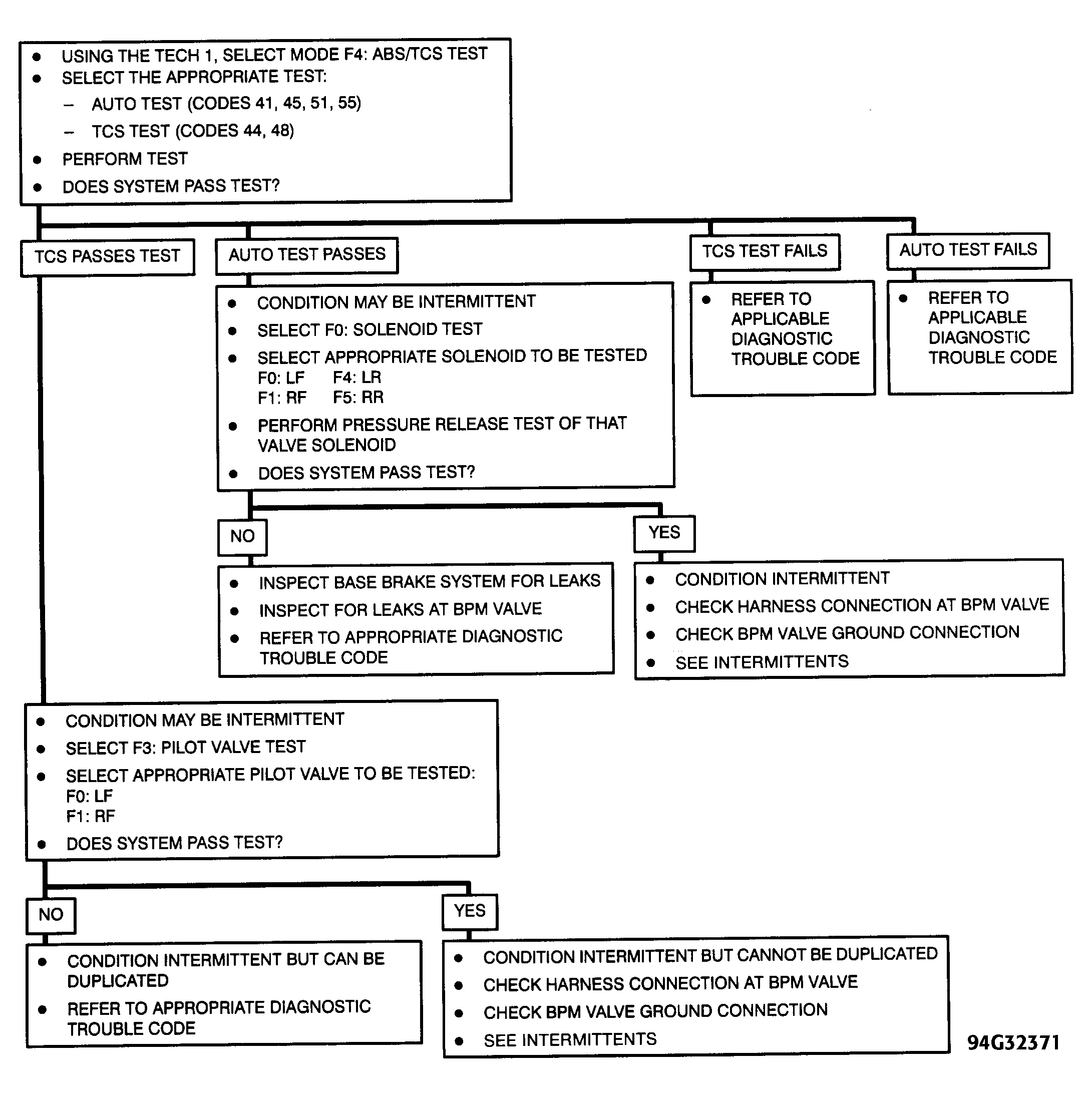

Fig 3: ABS/TCS FUNCTIONAL CHECK CHARTS #3

Courtesy of GENERAL MOTORS CORP.

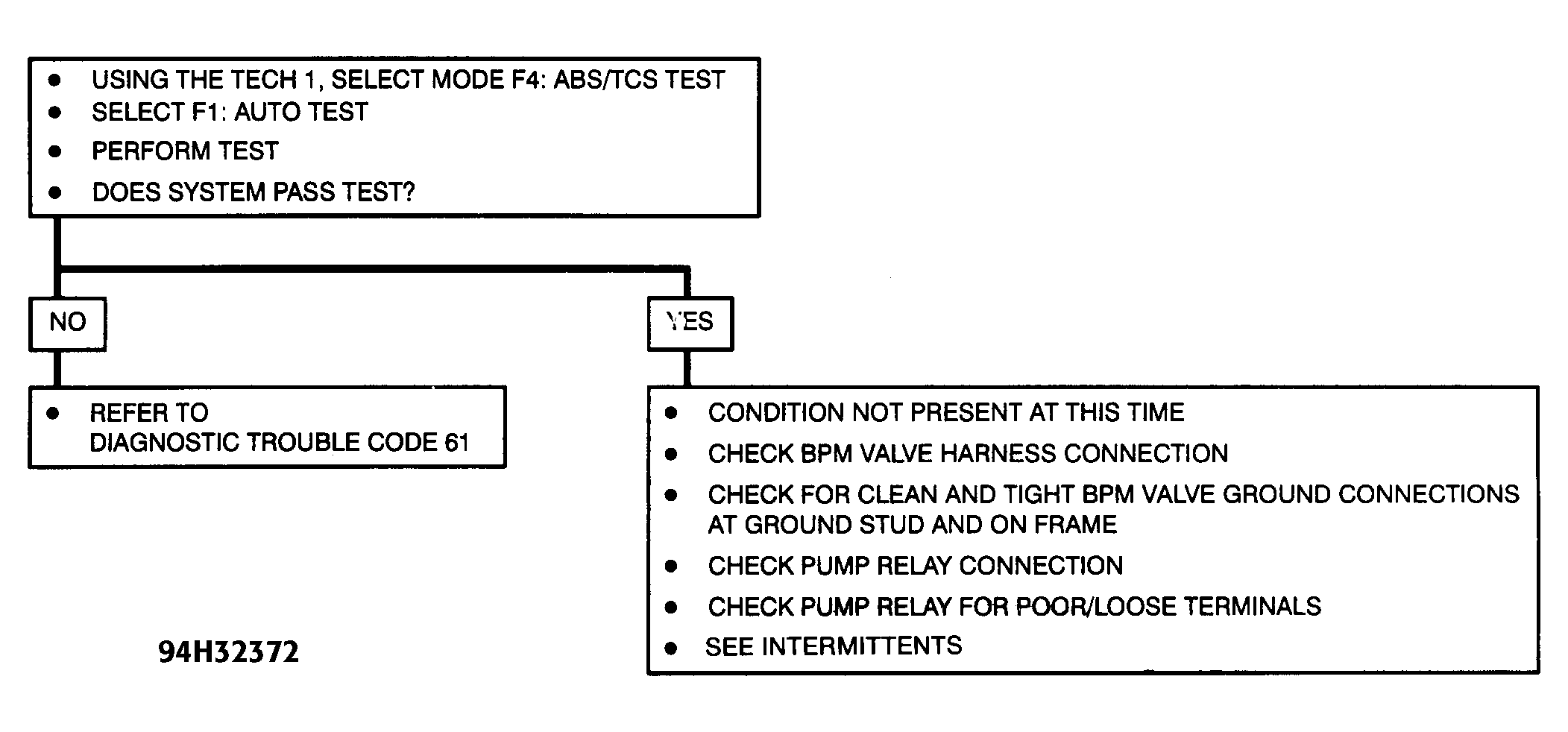

Fig 4: ABS/TCS FUNCTIONAL CHECK CHARTS #4

Courtesy of GENERAL MOTORS CORP.

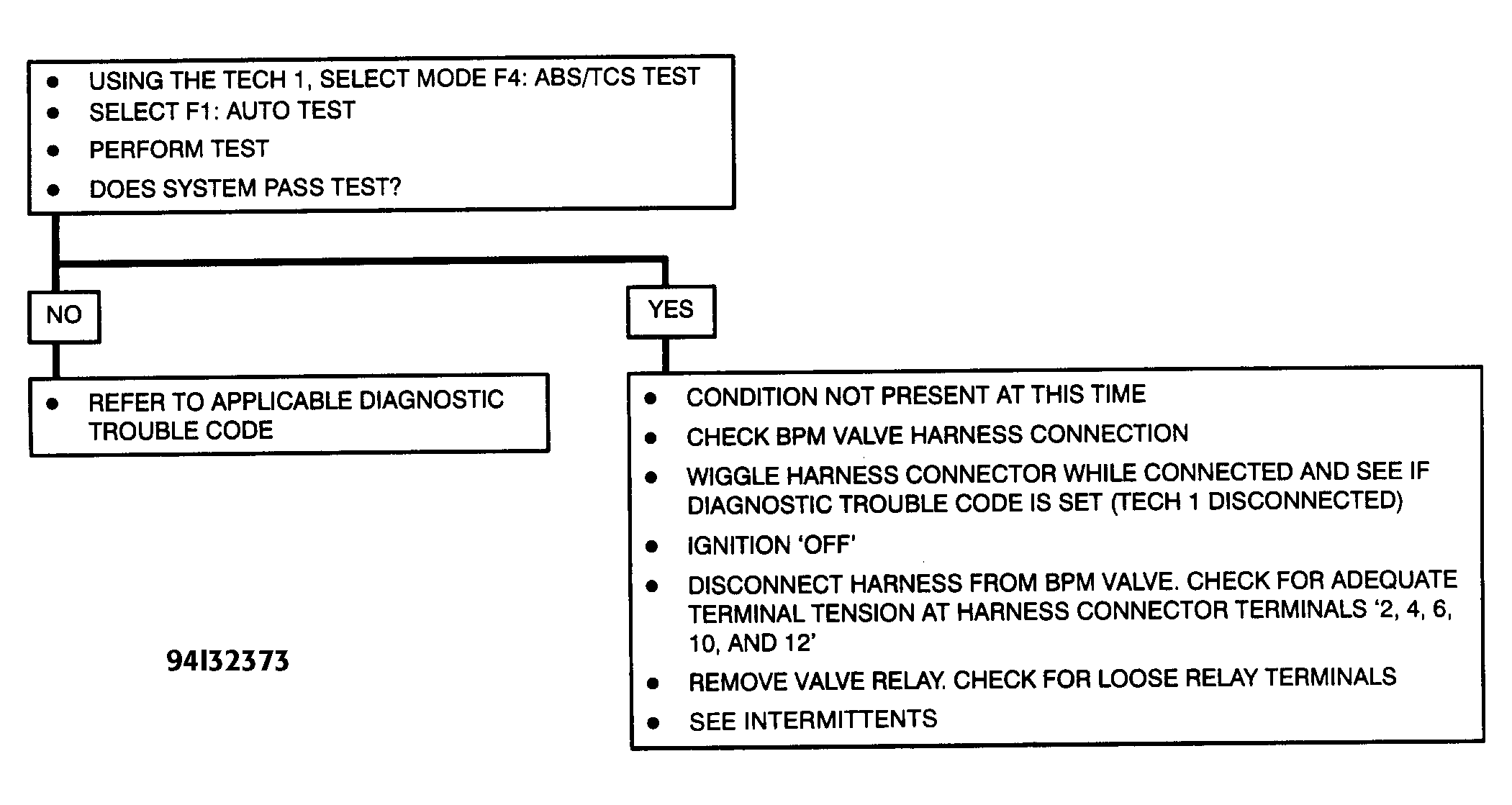

Fig 5: ABS/TCS FUNCTIONAL CHECK CHARTS #5

Courtesy of GENERAL MOTORS CORP.
