Removal & Installation

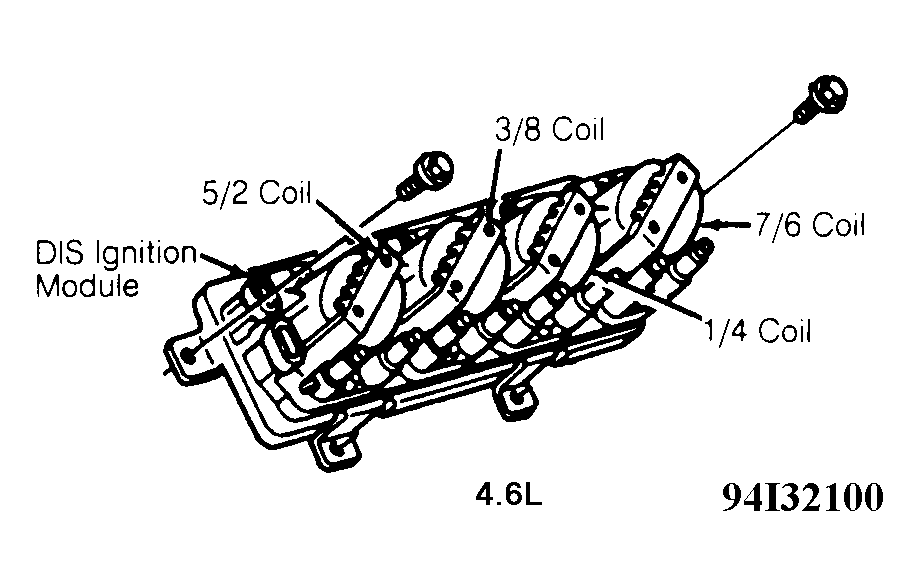

- Disconnect negative battery cable. Disconnect connectors at ignition module. See Fig 1
. Disconnect spark plug wires from coil pack. Remove coil pack/ignition module assembly. For ignition module location, see COMPONENT LOCATIONS in SYSTEM/COMPONENT TESTS
article in this section. Separate ignition coil(s) from ignition module (if possible).
- To install, reverse removal procedure. Tighten ignition module mounting bolts/nuts. Use new mounting bolts supplied with module. Tighten mounting bolts/nuts to specification. See TORQUE SPECIFICATIONS
.
Courtesy of GENERAL MOTORS CORP.
