Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

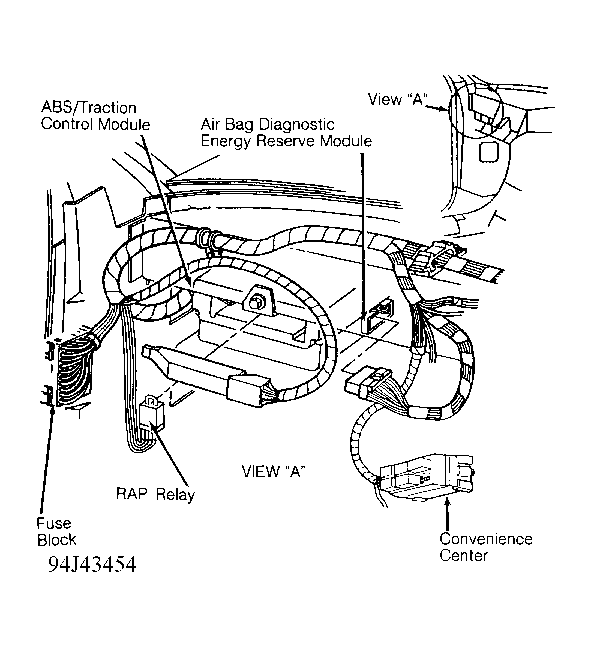

| ABS/Traction Control Module | Under left side of dash. See Figure . |
| Air Bag Diagnostic Energy Reserve Module | Under left side of dash. See Figure . |
| Blower Motor Control Module | Under right side of dash, near blower motor. |
| Catalytic Converter Temperature Alarm Module | Behind instrument panel gauges. |
| Central Control Module (CCM) | In luggage compartment, behind rear seat. |
| Cruise Control Module | On left rear of engine compartment, near brake master cylinder. |
| Driver Power Seat Memory Module | Under driver's seat, clipped to support bar. |
| Heated Seat Module | Under respective front seats, attached to seat support. |
| Ignition Coil Module | On top front of engine. |
| Powertrain Control Module (PCM) | Forward of left wheelwell, under air cleaner. See Figure . |
| Remote Control Door Lock Receiver/Theft Deterrent Module | Mounted under rear package shelf. |
| TPS Sensor Module | On right rear of engine compartment, near A/C accumulator. See Figure . |
