Code P067, Set/Coast Or Resume/ACCEL Input Shorted: Action

PCM disable cruise control.

1. Checks if PCM input data PI83 (SET/COAST) and PI84 (RESUME/ACCEL) will cycle from low to high to low. If inputs remain high, a short to voltage in system is present.
2. Checks if SET/COAST and/or RESUME/ACCEL switches are shorted to voltage.
3. Checks if circuit No. 84 is shorted to voltage.
4. Checks if circuit No. 87 is shorted to voltage.

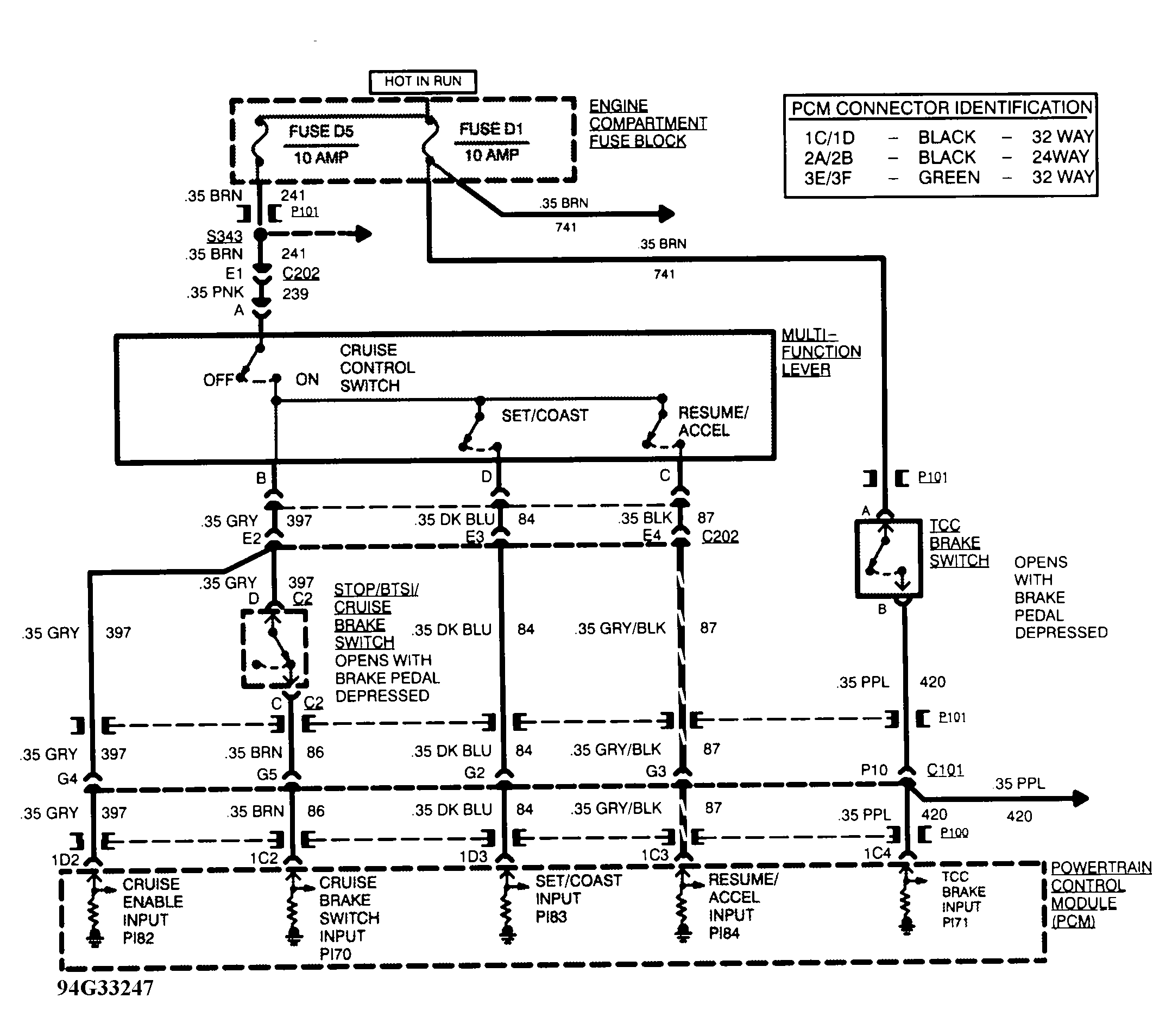

Fig 1: Code P067 Schematic, Set/Coast Or Resume/Accel. Input Shorted

Courtesy of GENERAL MOTORS CORP.

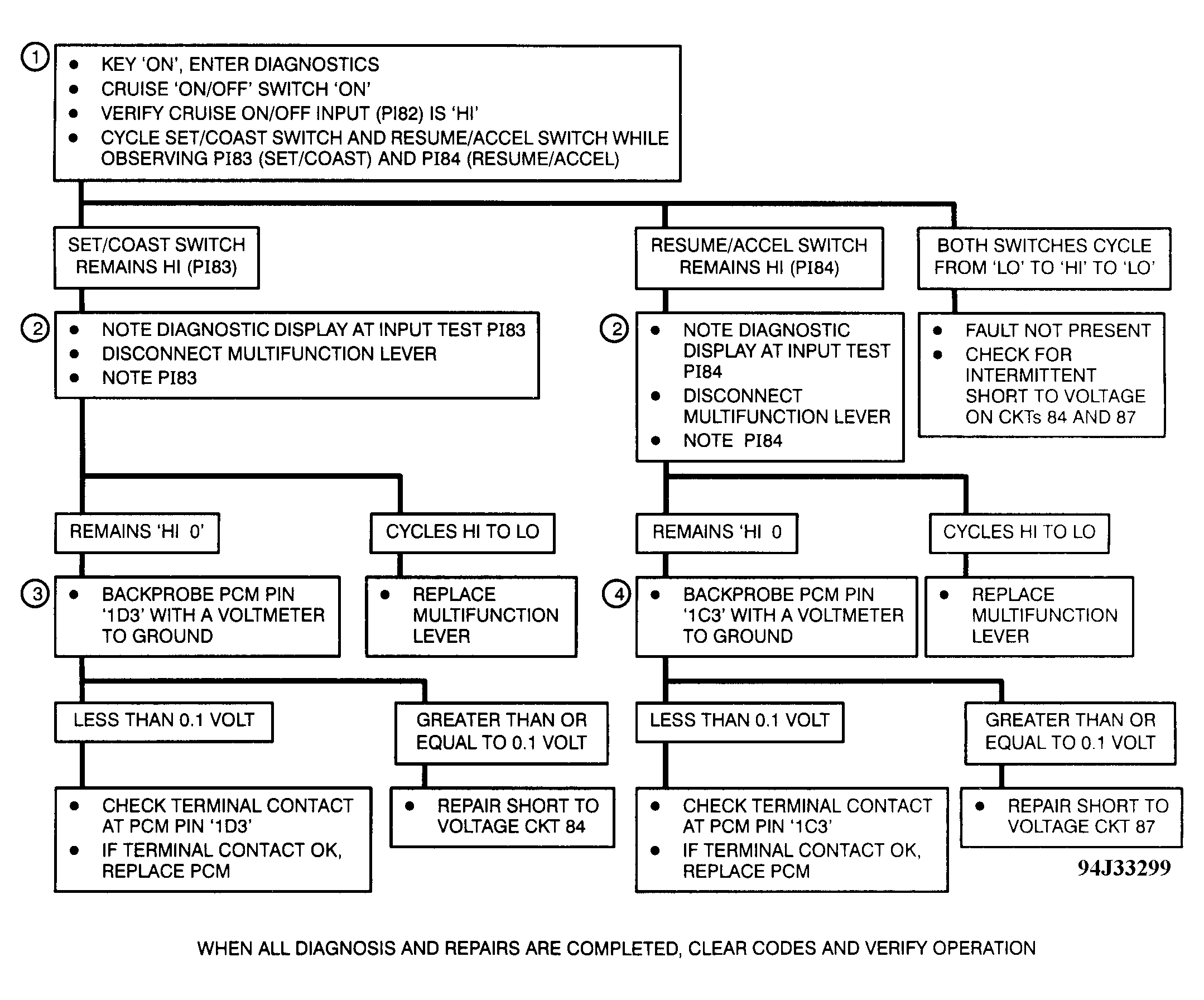

Fig 2: Code P067 Diagnostic Flow Chart, Set/Coast Or Resume/Accel. Input Shorted

Courtesy of GENERAL MOTORS CORP.
