Home › Cadillac › 1995 › Eldorado Base › Repair and Diagnosis › Engine Performance › System › Engine Controls - System/Component Tests › Component Locations

Component Locations

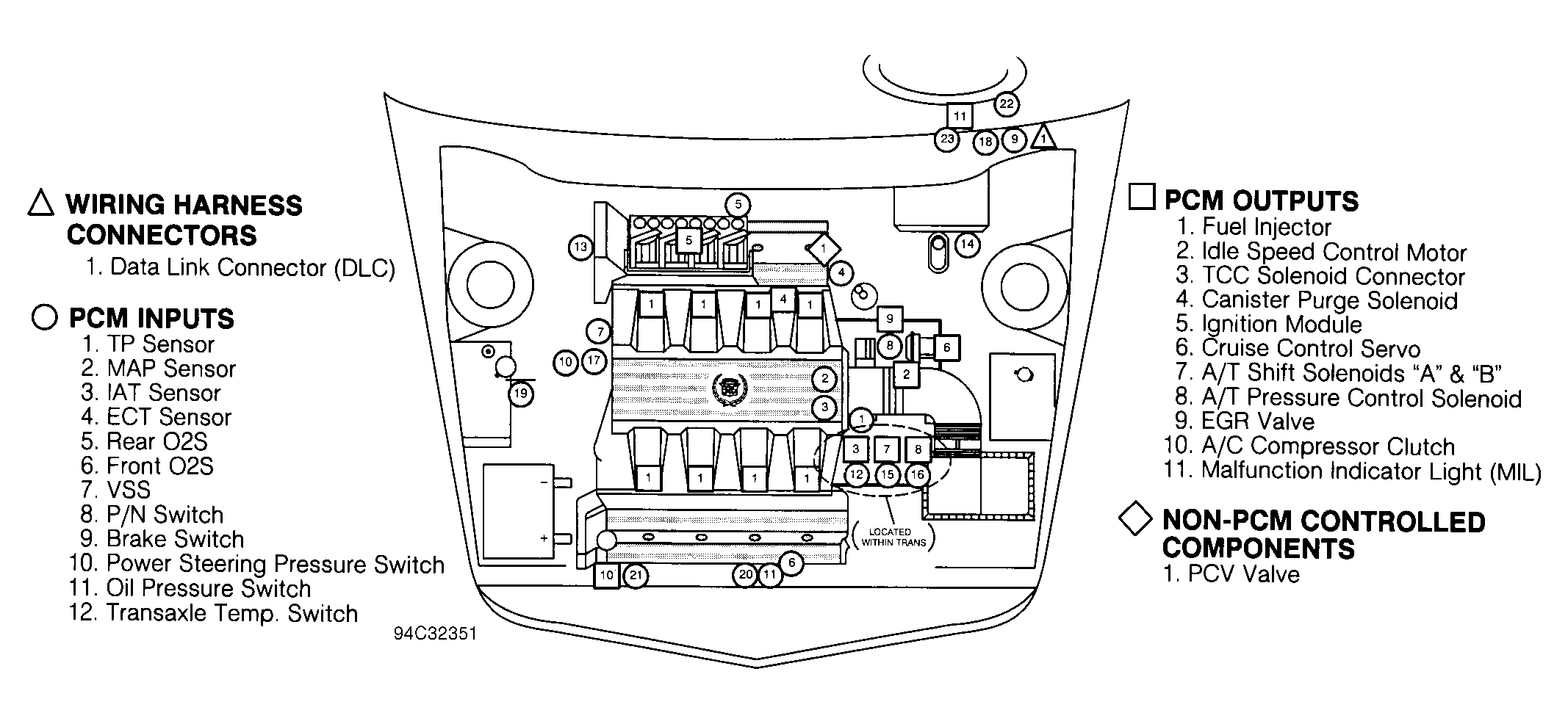

Fig 1: Component Locations (Eldorado)
G94C32351Courtesy of GENERAL MOTORS CORP.
