Note On Intermittents

Manipulate circuits No. 1230 and 1231. Look for EMI sources, such as sensor wires running along spark plug cables or high power transmitters in vicinity.

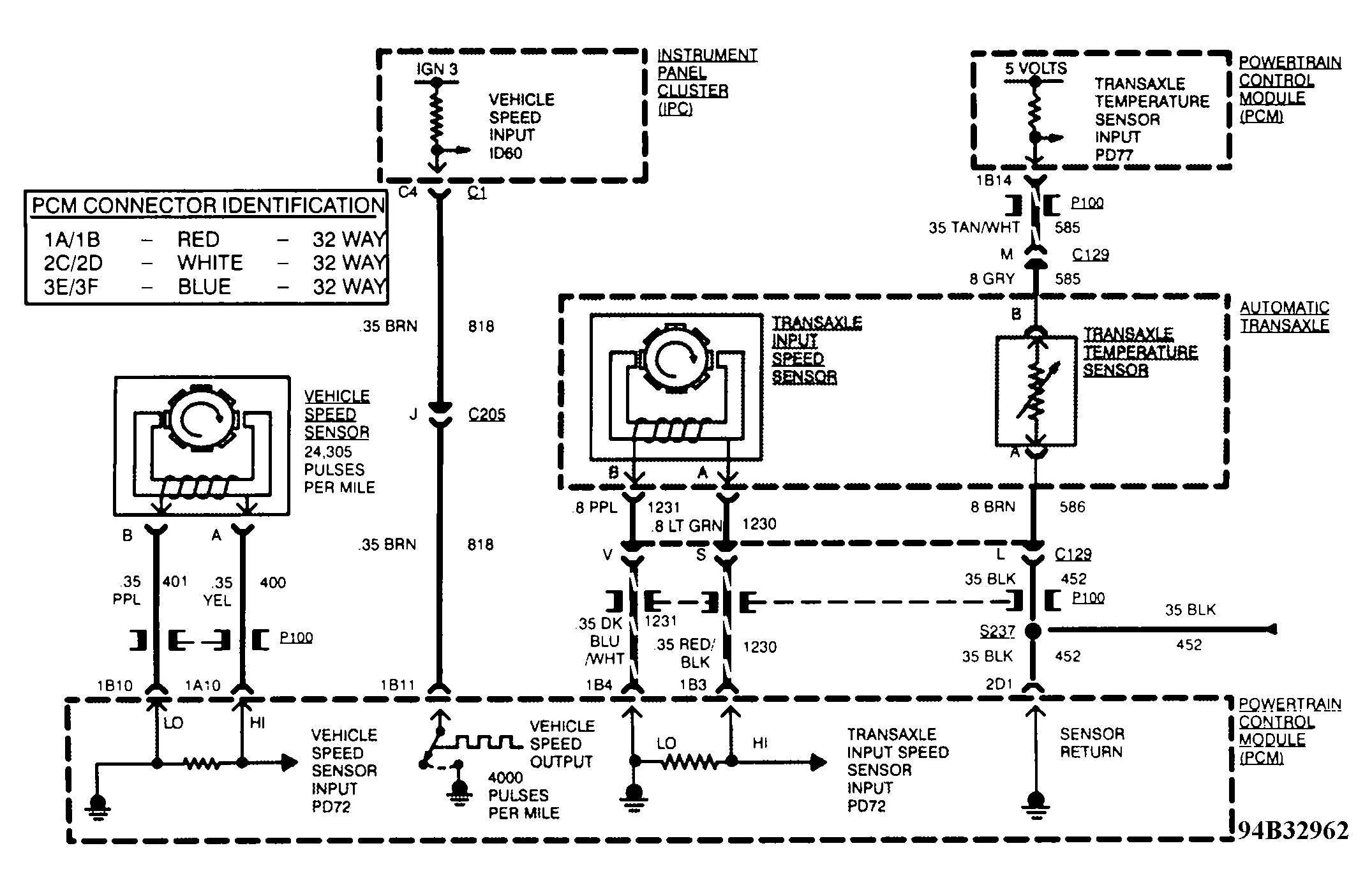

Fig 1: Code P056 Schematic, Transaxle Input Speed Sensor Circuit Problem

Courtesy of GENERAL MOTORS CORP.

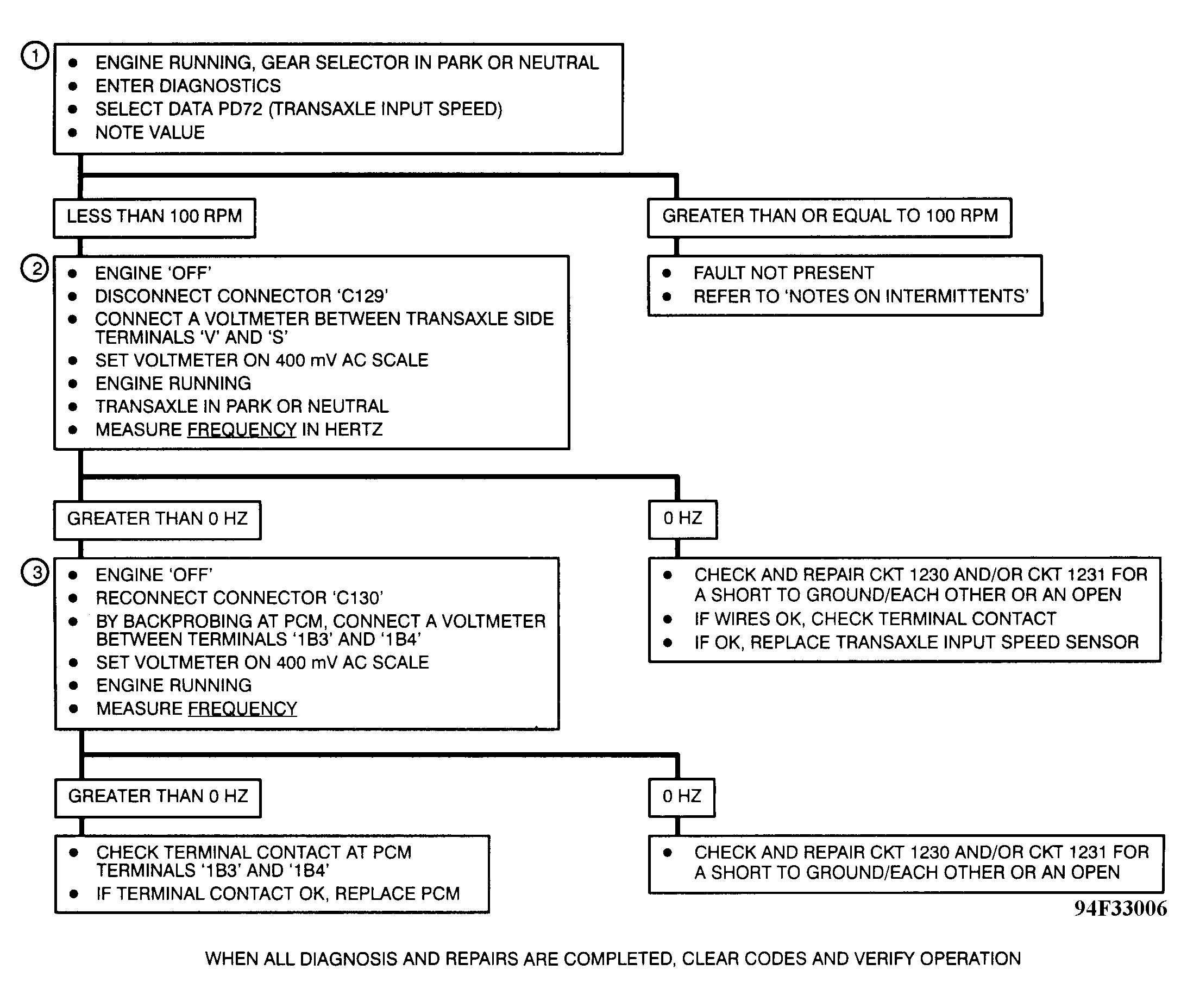

Fig 2: Code P056 Diagnostic Flow Chart, Transaxle Input Speed Sensor Circuit Problem

Courtesy of GENERAL MOTORS CORP.
