Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

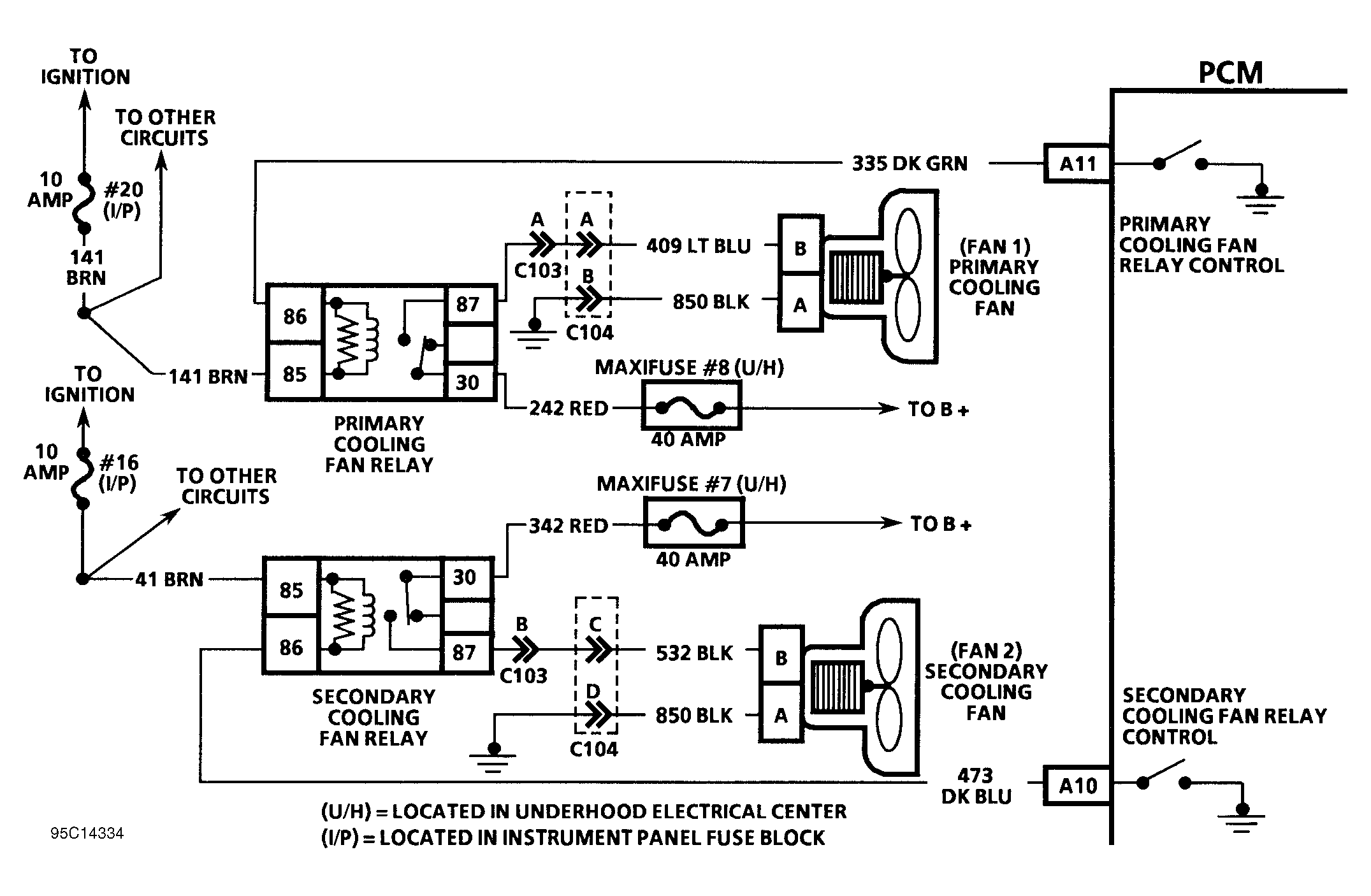

Fig 1: Code 78 Schematic (Fleetwood) Secondary Cooling Fan Driver

Fig 2: Code 78 Diagnostic Flow Chart (Fleetwood) Secondary Cooling Fan Driver
