System Check
System Check

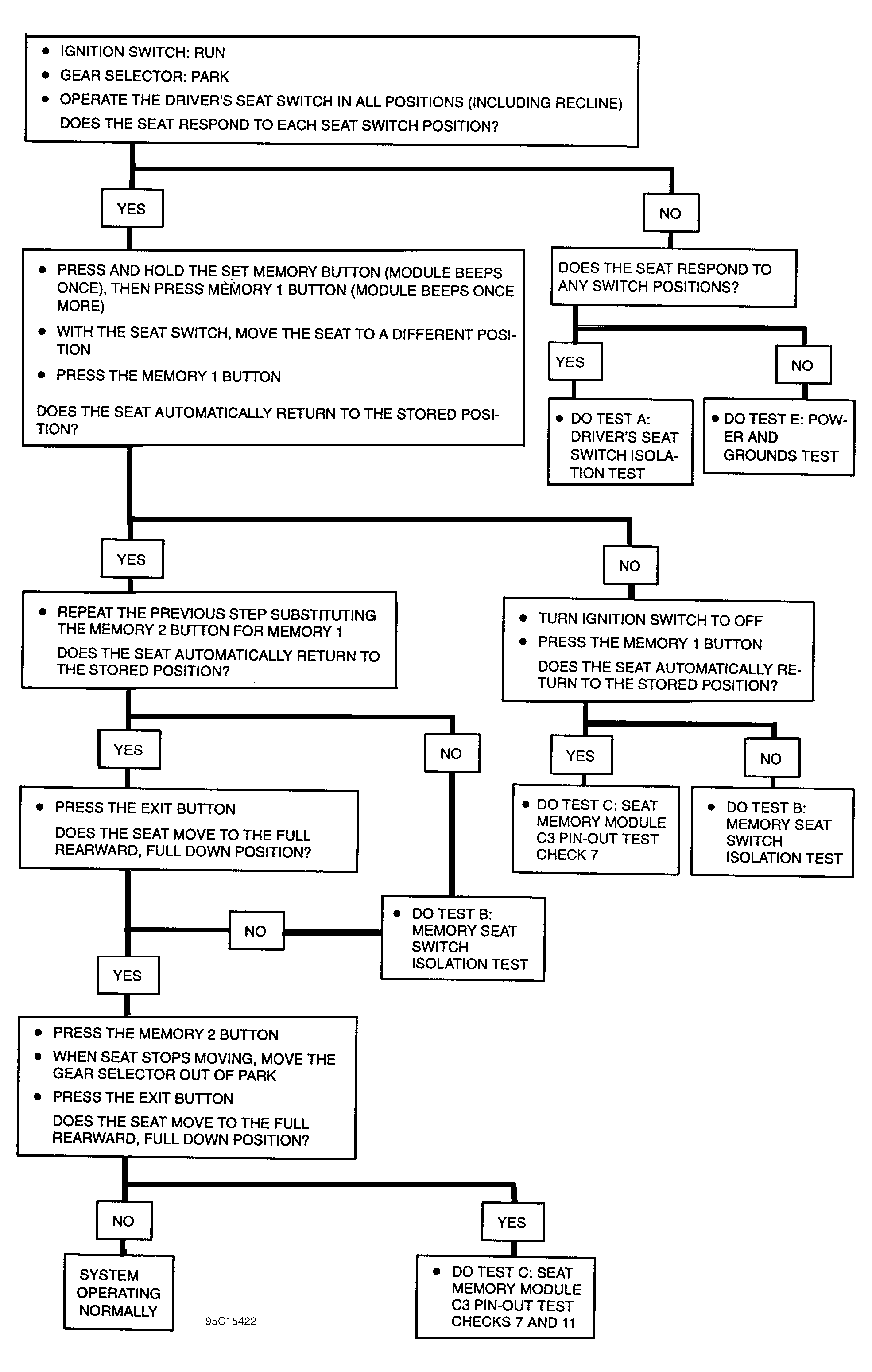

Fig 1: System Check
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
