Removal & Installation

Move seat to full up position. Remove seat. See POWER SEAT  . Disconnect electrical connector. Remove bolt and memory module. See Fig 1 . To install, reverse removal procedure.

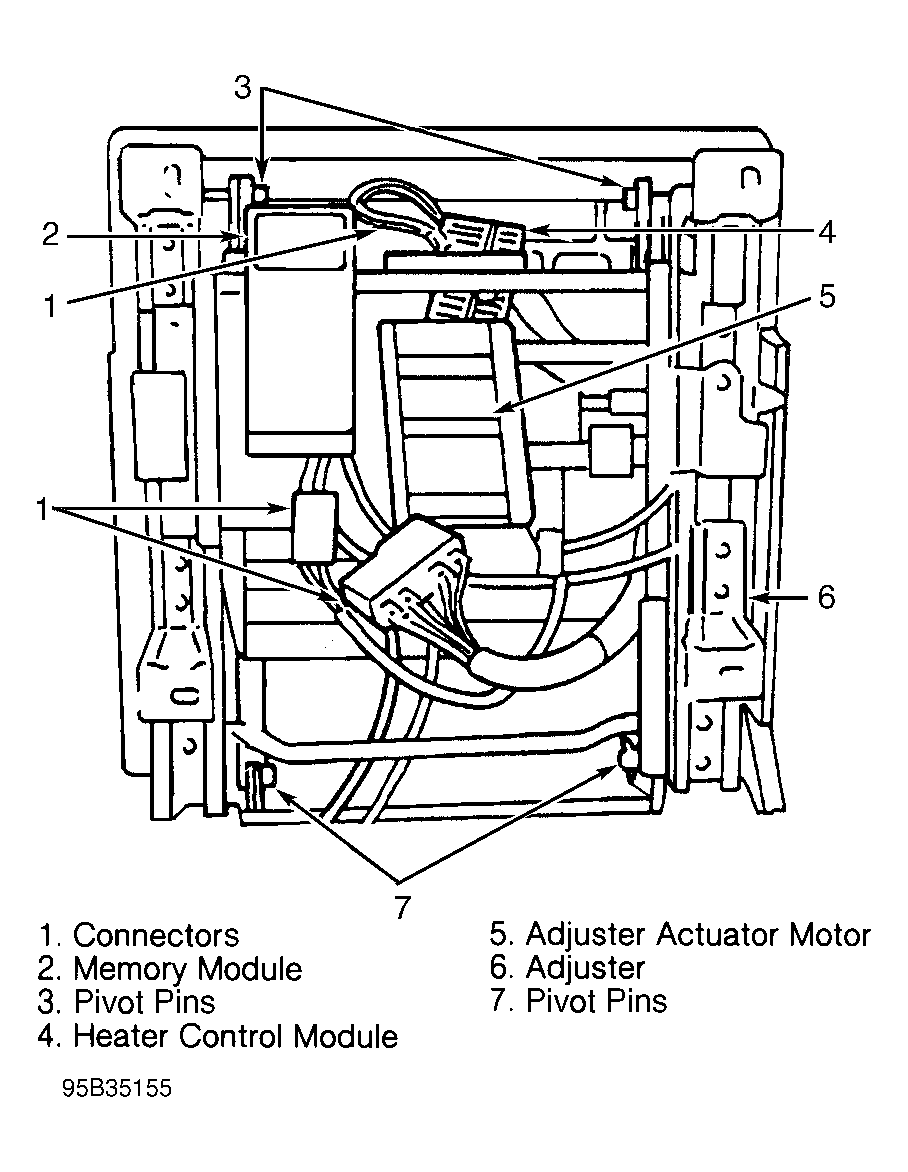

Fig 1: Locating Memory & Heater Components (Fleetwood)

Courtesy of GENERAL MOTORS CORP.
