Throttle Cable
- To adjust throttle cable, press and hold throttle cable adjuster button. Position throttle cable adjuster in non-adjusted position. Pull cable housing away from adjuster so housing will be at its longest position.

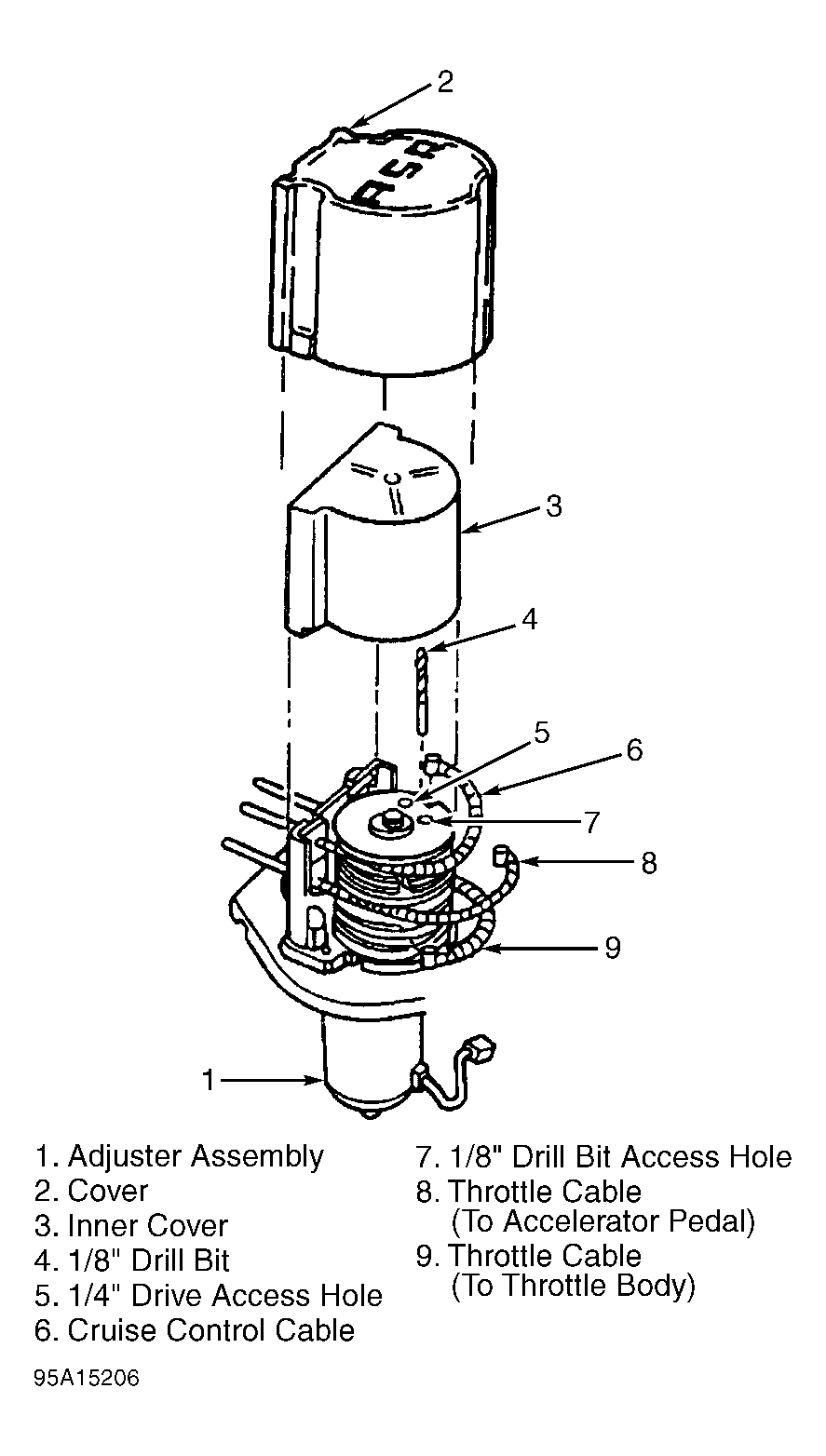

- Release throttle cable adjuster button. Remove cable adjuster covers. See Fig 1
. Insert 1/8" drill bit (shank first) into hole in top of adjuster assembly. See Fig 1
.
- Using a 1/4" ratchet and extension, insert extension through top hole of first cam and into square hole of second cam. Rotate all 3 cams until adjuster assembly is at wide open throttle. Several clicks of throttle cable adjuster should be heard. If clicks are not heard, repeat adjustment procedure.
Courtesy of GENERAL MOTORS CORP.
