Home › Cadillac › 1996 › Seville SLS › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System › Abs/TCS Functional Check Charts › Abs/TCS Functional Check Chart I

Abs/TCS Functional Check Chart I

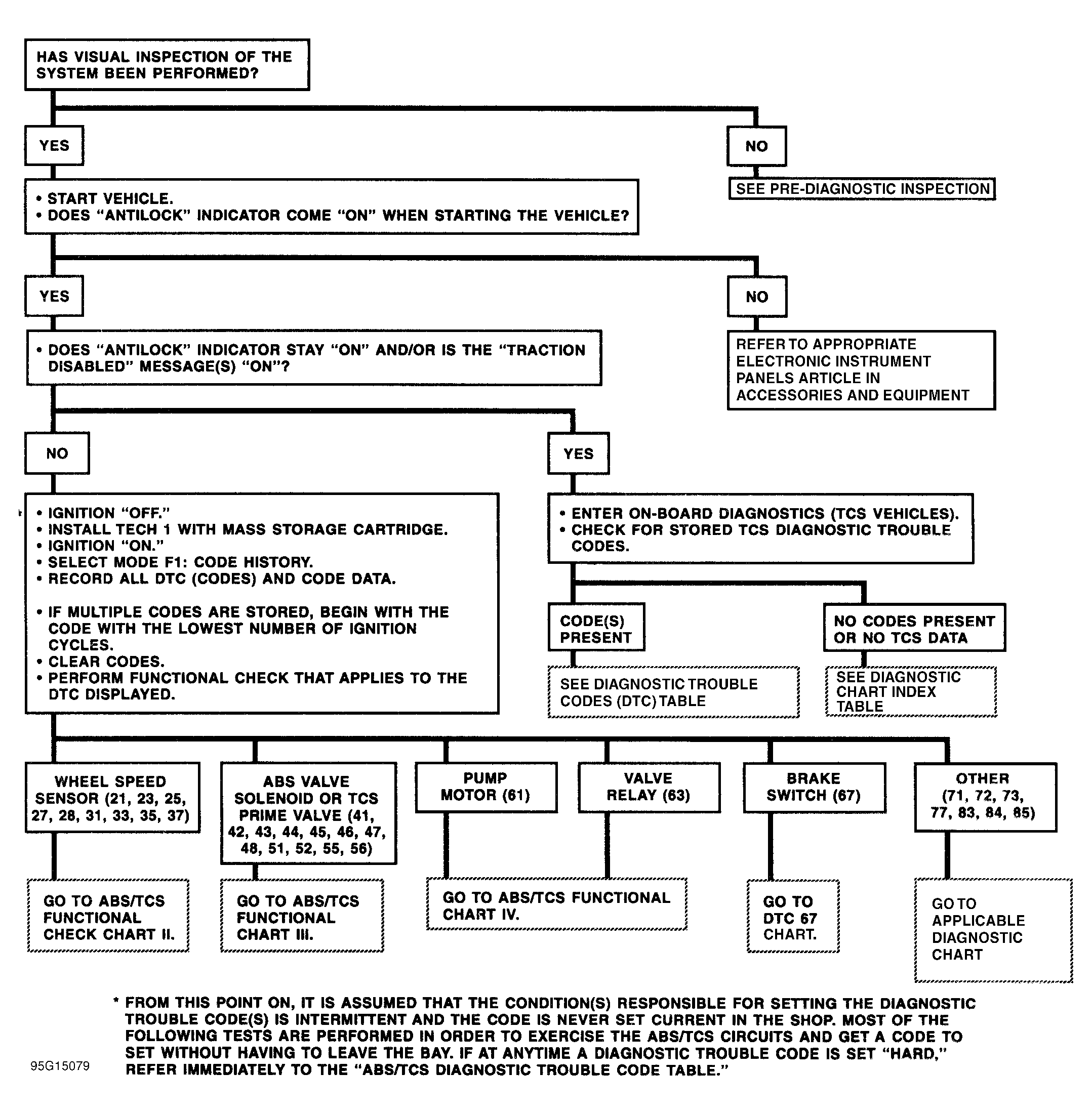

Fig 1: ABS/TCS Functional Check Chart I
G95G15079Courtesy of GENERAL MOTORS CORP.
