Component Locations

WARNING: This page is about a different car, the 1995 Buick Riviera. However, it is still accessible from the selected car via links, so may be relevant.

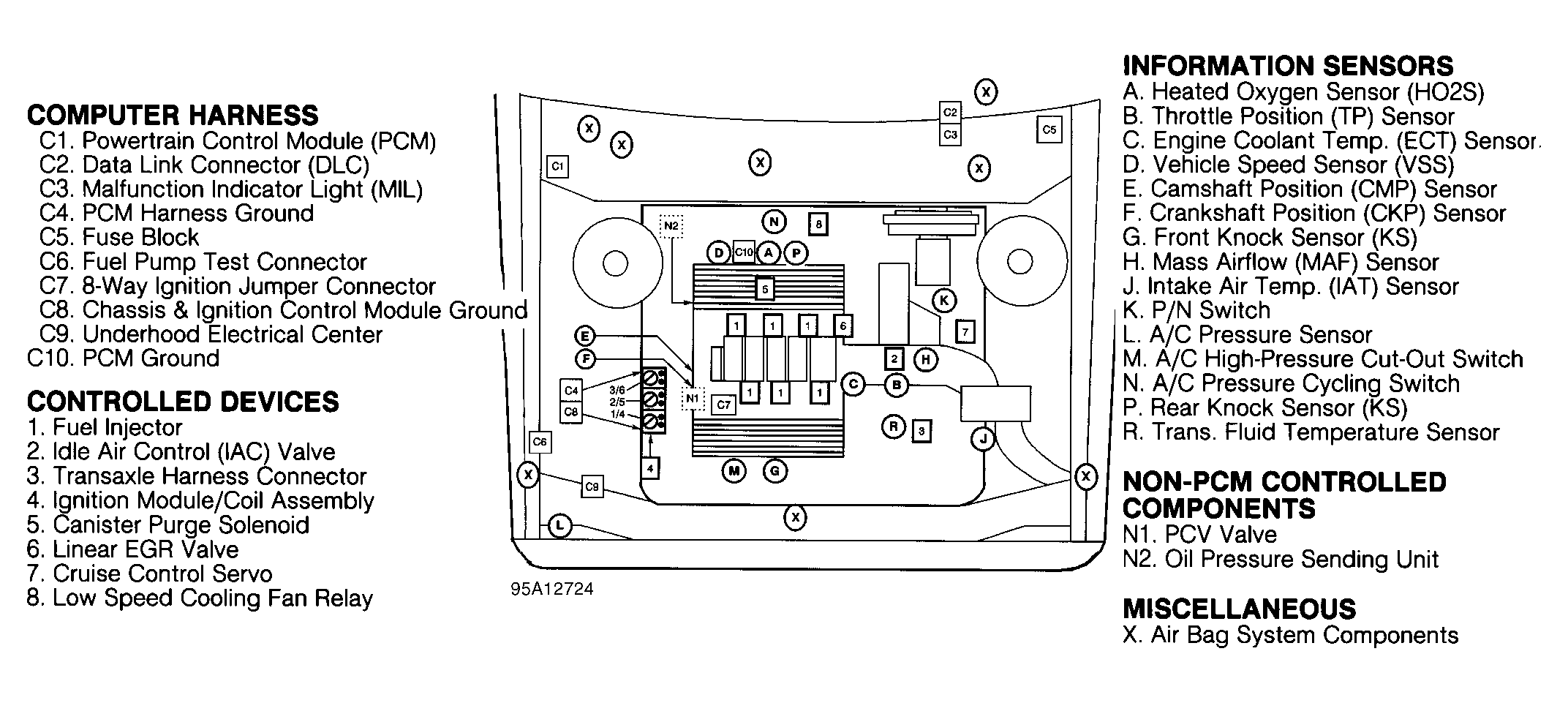

Fig 1: Component Locations (3.8L VIN K)

Courtesy of GENERAL MOTORS CORP.

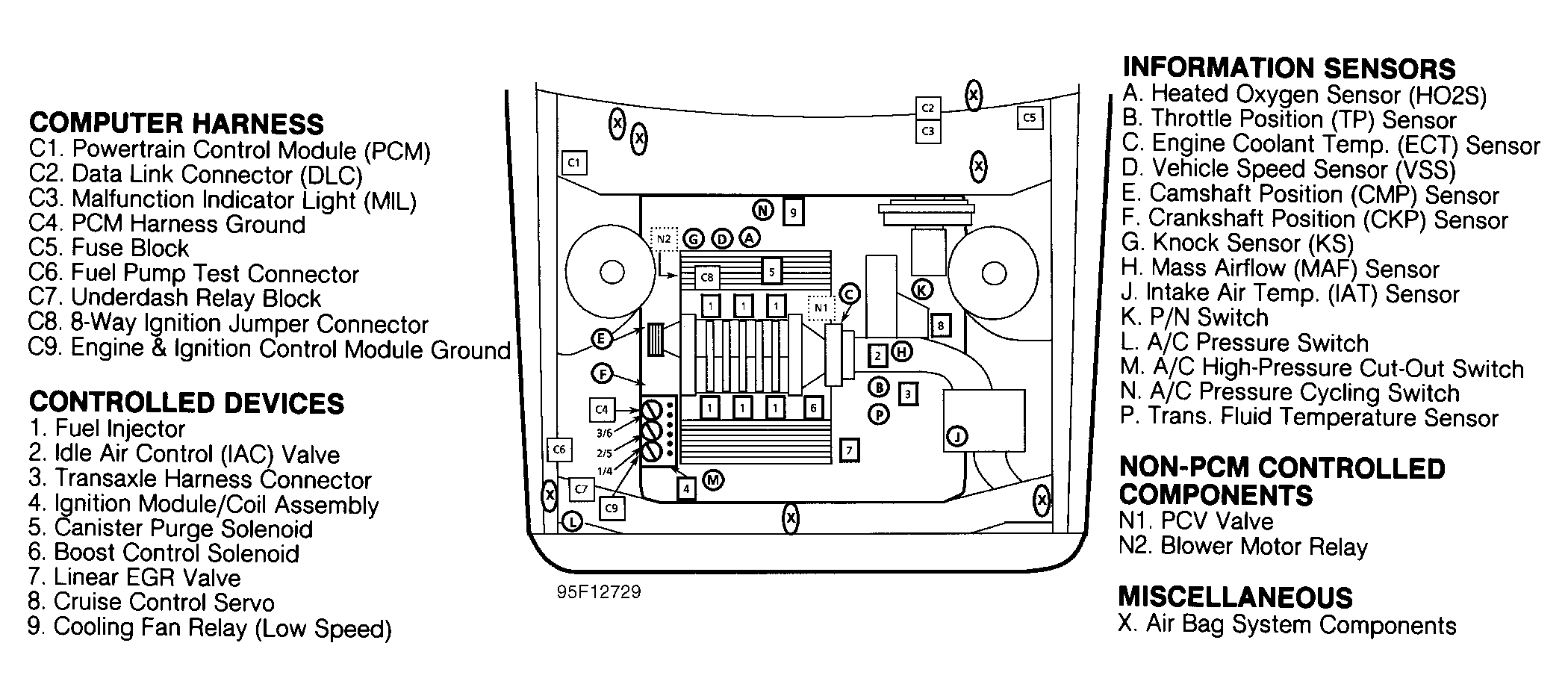

Fig 2: Component Locations (3.8L VIN 1)

Courtesy of GENERAL MOTORS CORP.
