Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

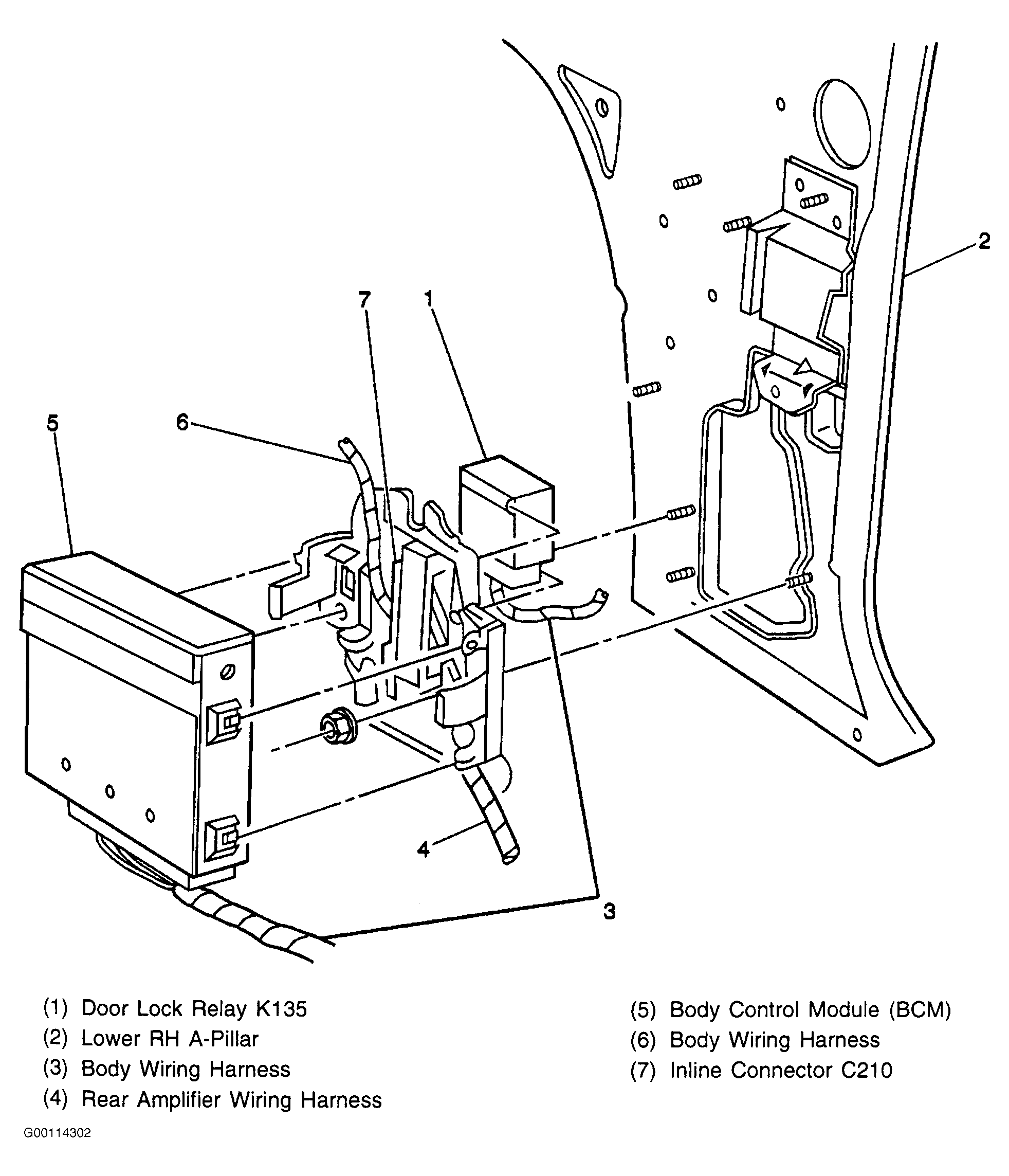

| Body Control Module (BCM) | Mounted On Right A-Pillar, Behind Trim Panel. See Fig 1 |
| Door Lock Relay | Mounted On Lower Right A-Pillar, Behind BCM. See Fig 1 |

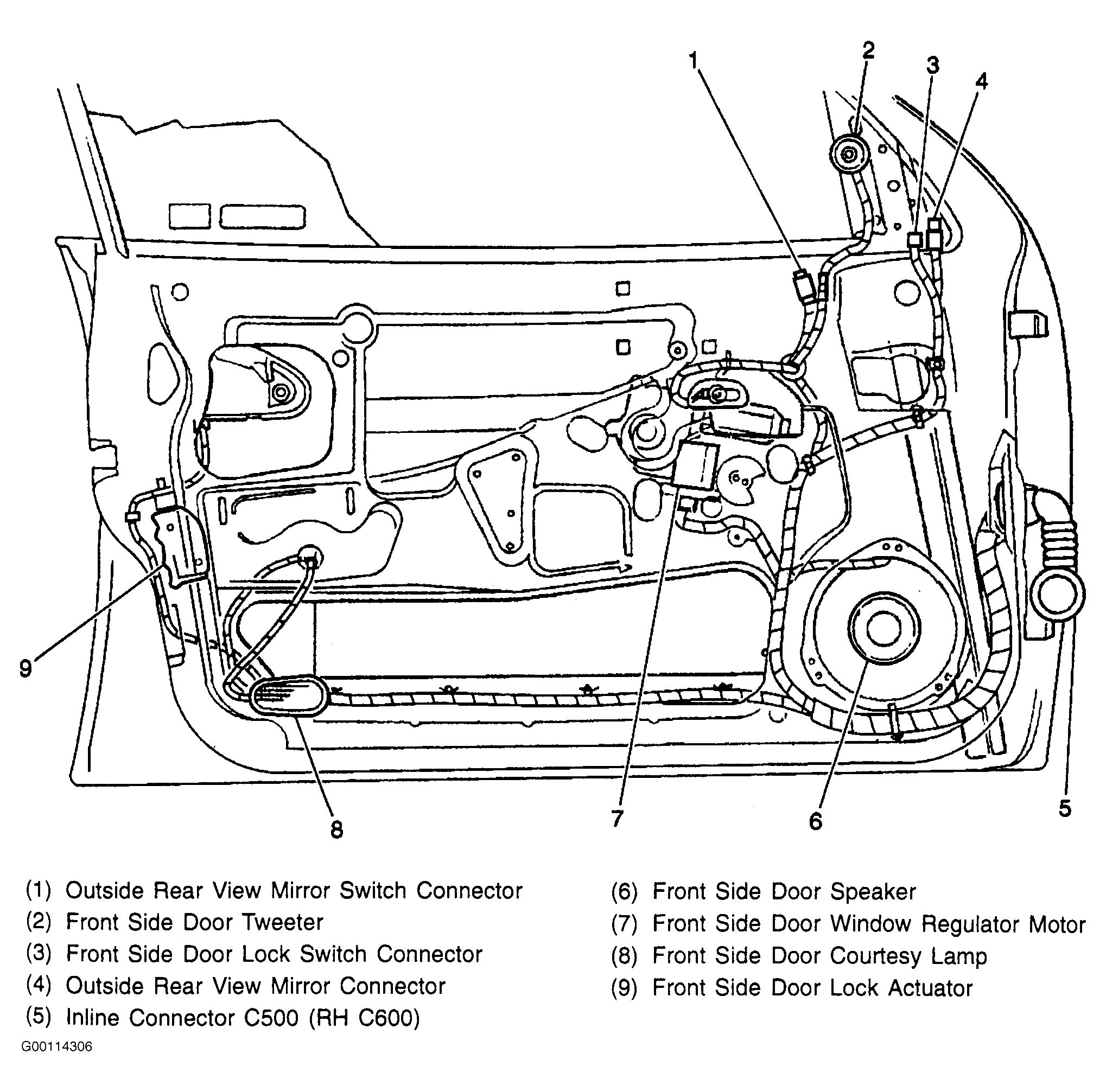

| Front Side Door Lock Actuator (Left) | Mounted Inside Of Left Front Side Door. See Fig 2 |
| Front Side Door Lock Actuator (Right) | Mounted Inside Of Right Front Side Door. See Fig 2 |
| Front Side Door Lock Switch (Left) | Mounted To Inside Left Front Side Door Trim Panel. See Fig 3 |
| Front Side Door Lock Switch (Right) | Mounted To Inside Right Front Side Door Trim Panel. See Fig 3 |

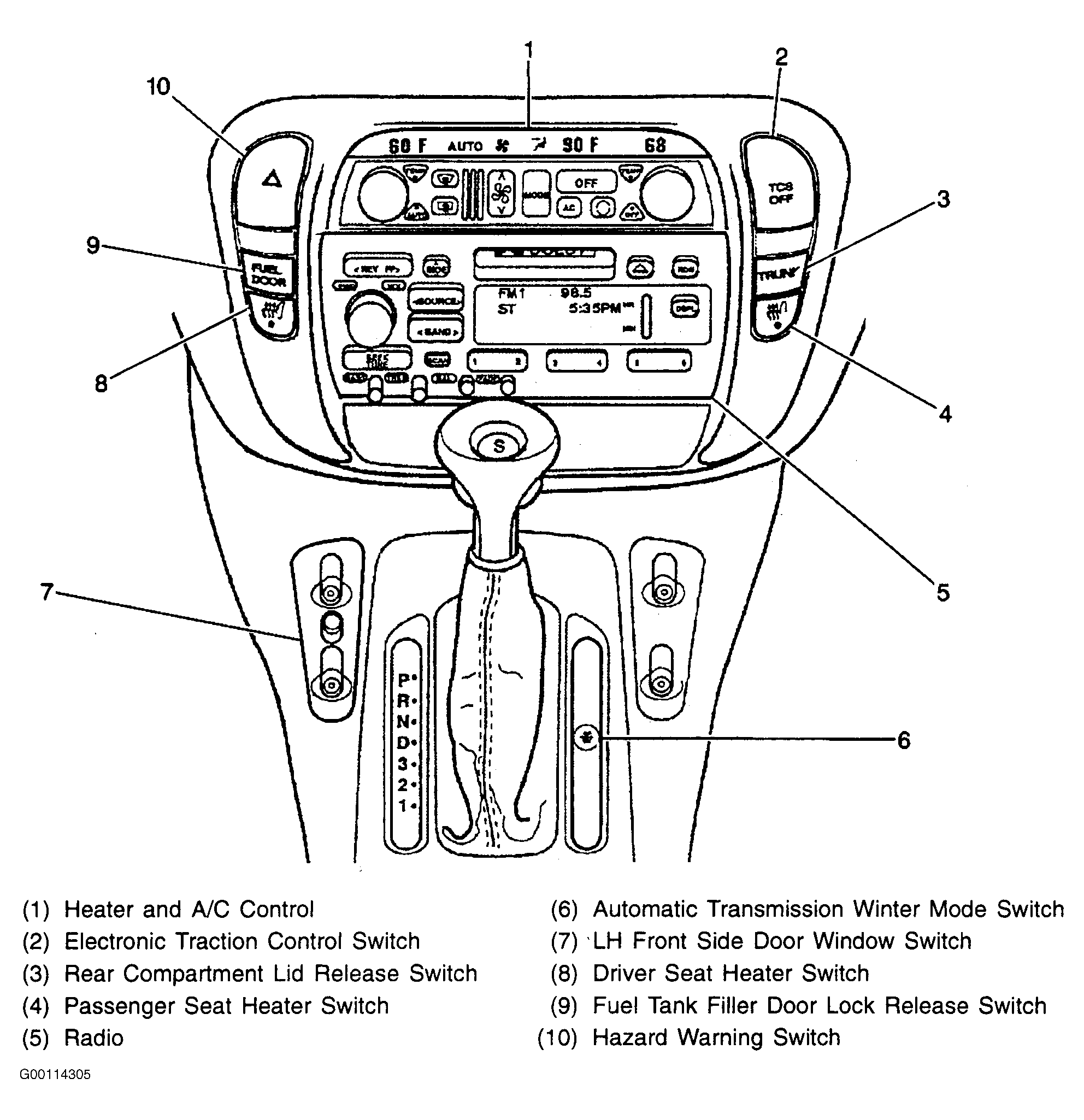

| Fuel Tank Filler Door Lock Release Switch | Center Of Instrument Panel, To Left Of Heater & A/C Control |
| Fuse Block | Mounted To Instrument Panel, Lower Left Side Of Steering Column |

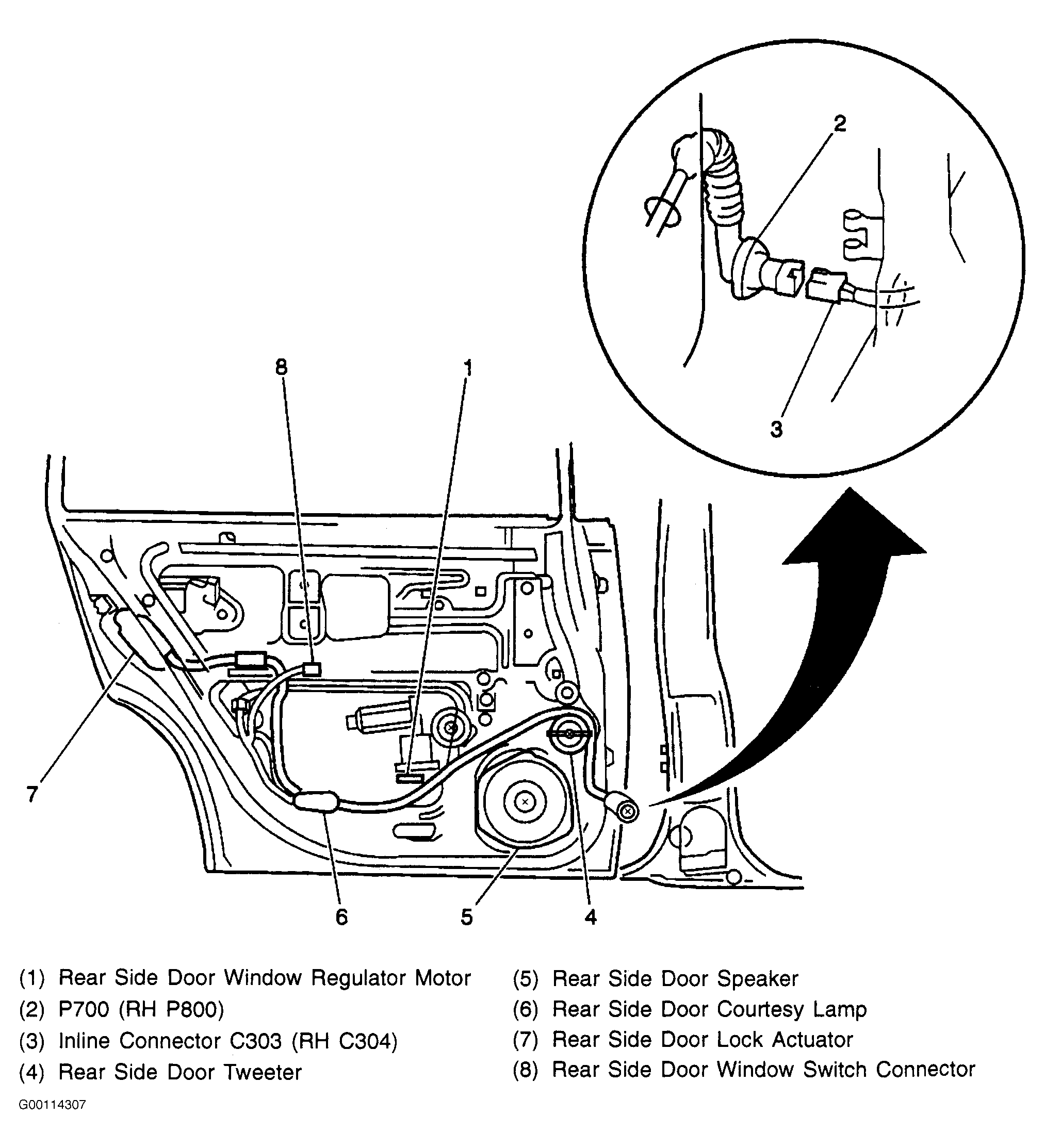

| Rear Side Door Lock Actuator (Left) | Mounted Inside Of Left Rear Side Door. See Fig 4 |
| Rear Side Door Lock Actuator (Right) | Mounted Inside Of Right Rear Side Door. See Fig 4 |
| C200A | In Instrument Panel Wiring Harness, At Lower Left A-Pillar |
| C200B | In Instrument Panel Wiring Harness, At Lower Left A-Pillar |
| C303 | In Body Wiring Harness-To-Left Rear Side Door Wiring Harness, Inside Of Lower Left B-Pillar. See Fig 4 |
| C304 | In Body Wiring Harness-To-Right Rear Side Door Wiring Harness, Inside Of Lower Right B-Pillar. See Fig 4 |
| C500 | In Body Wiring Harness-To-Left Front Side Door Wiring Harness, At Lower A-Pillar, Near G200. See Fig 2 |
| C600 | In Body Wiring Harness-To-Right Front Side Door Wiring Harness, At Lower Right A-Pillar. See Fig 2 |
| G103 | In Body & Instrument Panel Wiring Harnesses, Located At Left front Of Engine Compartment, Near C102, C105 & C106 |
| G200 | Body Wiring Harness, At Lower Left A-Pillar, Above & To Left Of C200. See Fig 2 |

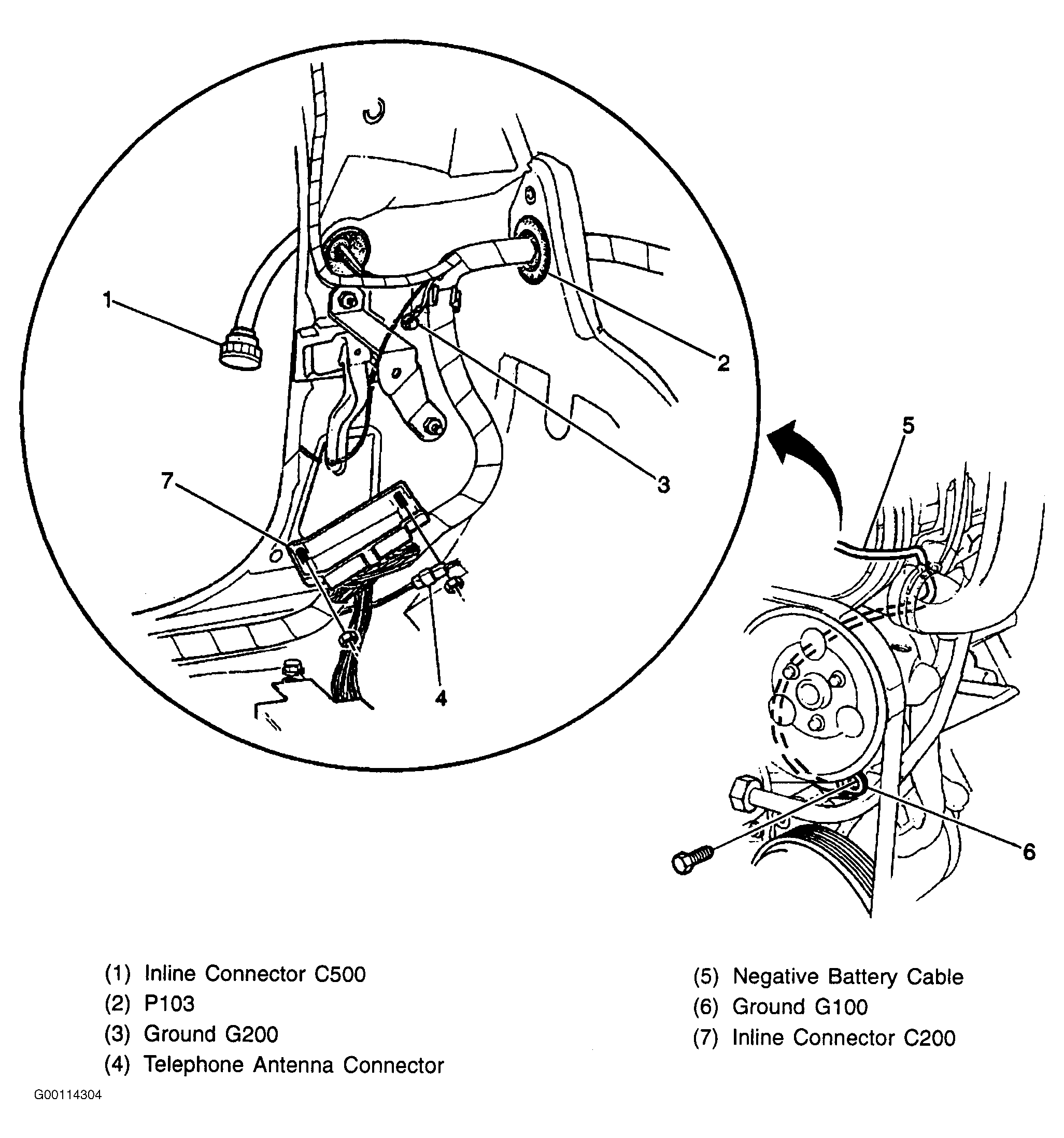

| P103 | Lower Left A-Pillar, Forward Of G200. See Fig 5 |
| P110 | Rear Left Corner Of Engine Compartment |
| P300 | At Lower Right B-Pillar |
| P301 | At Lower Left B-Pillar |
| P500 | In Left Front Side Door |
| P600 | In Right Front Side Door |
| P700 | Between Front Of Left Rear Side Door & Lower Left B-Pillar |
| P701 | In Left Rear Side Door |
| P800 | Between Front Of Right Rear Side Door & Lower Right B-Pillar |
| P801 | In Right Rear Side Door |
| S103 | Body Wiring Harness |
| S217 | Instrument Panel Wiring Harness, Near Multi-Function Relay Connector Branch Break Off |
| S250 | Instrument Panel Wiring Harness, Near Gauge Cluster Connector Branch Break Off |
| S264 | In Body Wiring Harness, Near G200 Branch Break Off |
| S270 | In Body Wiring Harness |
| S271 | In Body Wiring Harness |
| S272 | In Body Wiring Harness |
| S273 | In Body Wiring Harness |
| S304 | In Body Wiring Harness |
| S307 | In Body Wiring Harness, Base Of Right A-Pillar, Just Under Conduit |
| S309 | In Body Wiring Harness, Base Of Right A-Pillar, Just Under Conduit |
| S311 | In Body Wiring Harness |
| S312 | In Body Wiring Harness, Base Of Right A-Pillar, Just Under Conduit |
| S314 | In Body Wiring Harness |
| S502 | In Left Front Side Door Wiring Harness |
| S600 | In Right Front Side Door Wiring Harness |
| S602 | In Right Front Side Door Wiring Harness |
| S700 | In Left Rear Side Door Wiring Harness |
| S800 | In Right Rear Side Door Wiring Harness |
