Electronic Brake/Traction Control Module Connector C2
Electronic Brake/Traction Control Module Connector C2

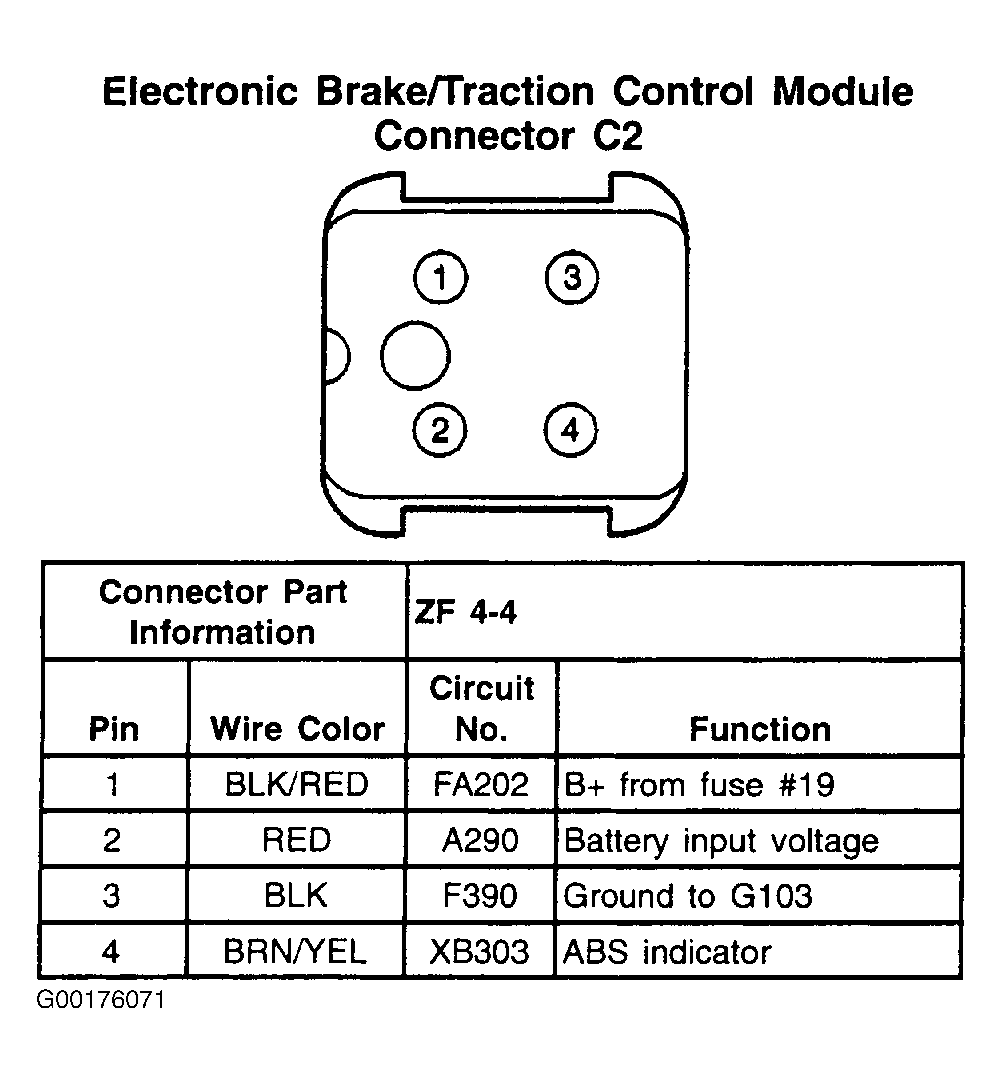

Fig 1: Electronic Brake/Traction Control Module Connector C2 - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
