Connector Terminal Identification
›
Anti-Lock Brakes System
›
Electronic Brake/Traction Control Module
›
Electronic Traction Control Switch
Electronic Traction Control Switch

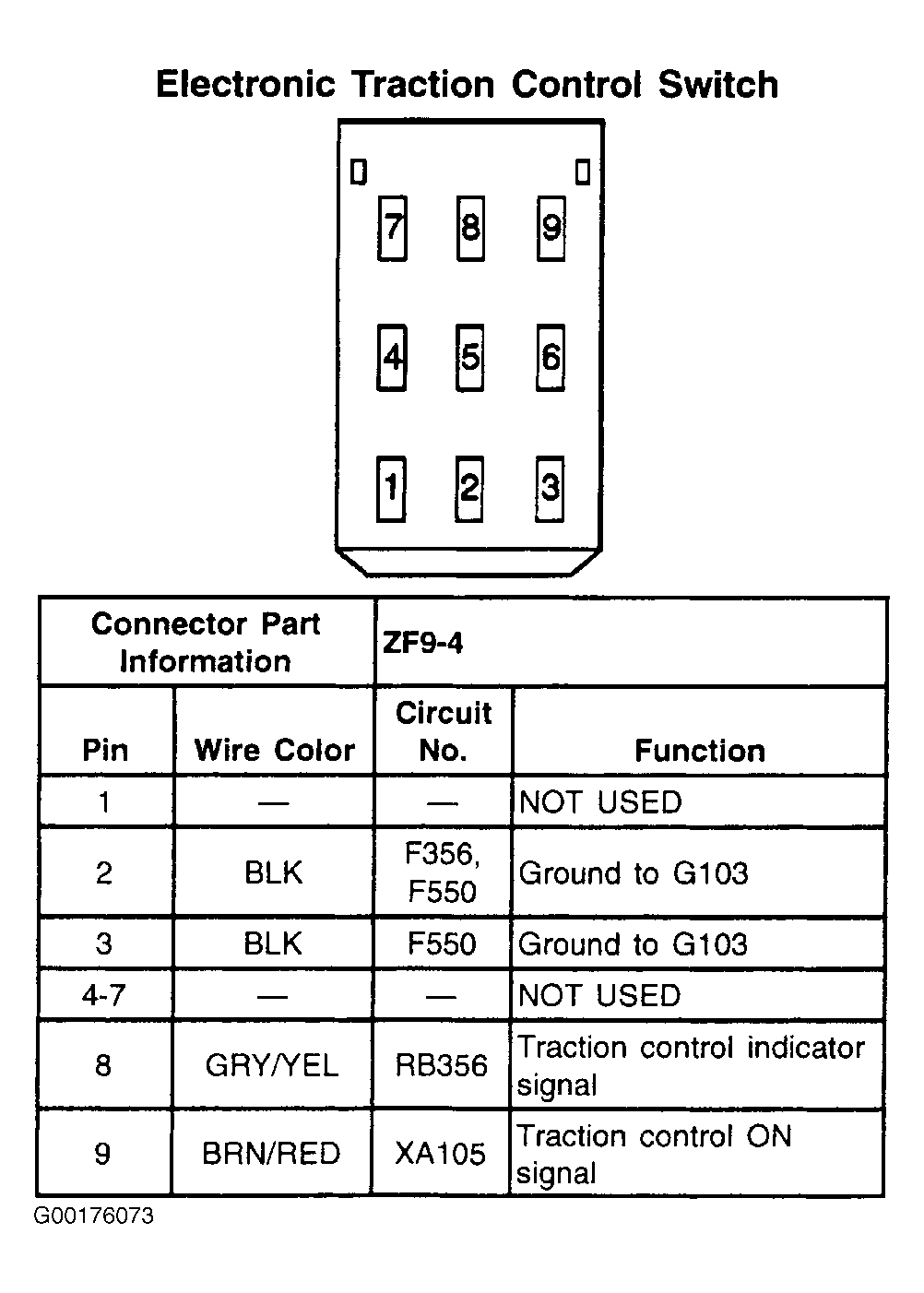

Fig 1: Electronic Traction Control Switch - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
