Connector Terminal Identification
›
Anti-Lock Brakes System
›
Left Hand Wheel Speed Sensor
›
Left Hand Front Wheel Speed Sensor
Left Hand Front Wheel Speed Sensor

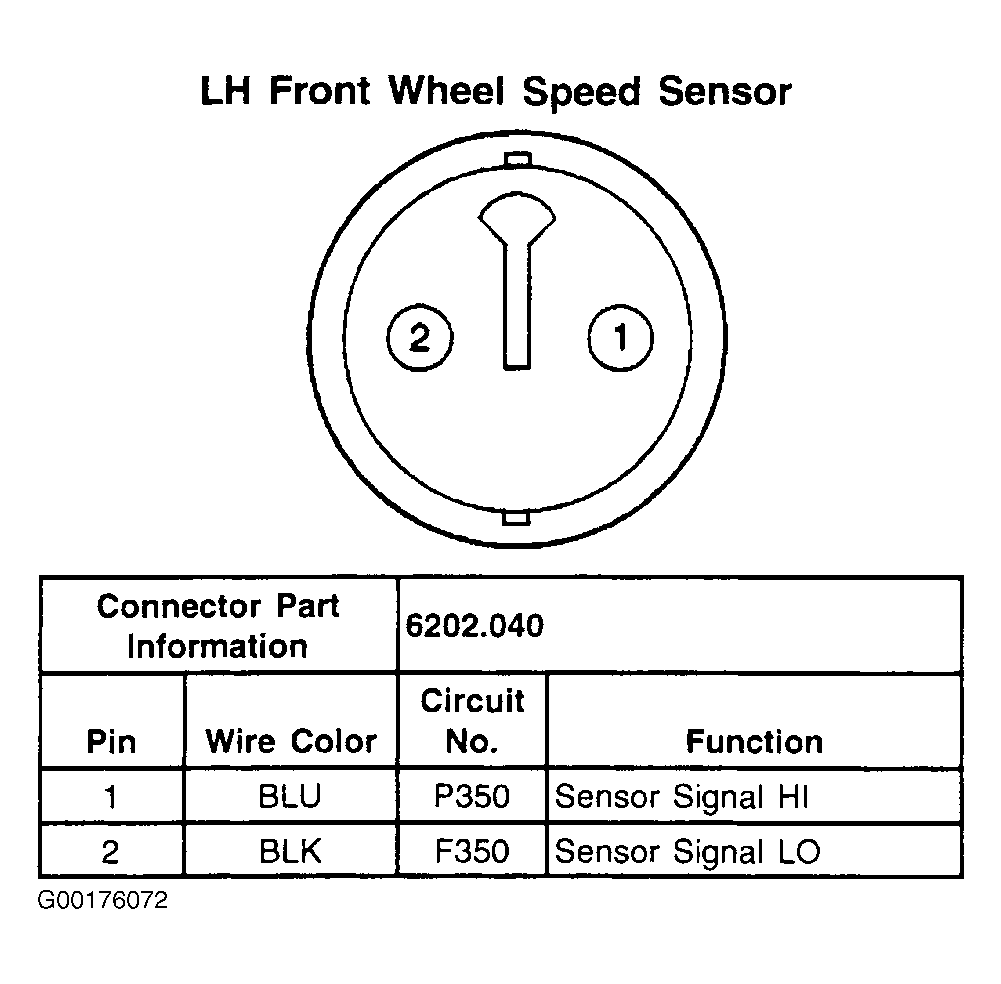

Fig 1: Left Hand Front Wheel Speed Sensor - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
