Rear Suspension Leveling Air Compressor

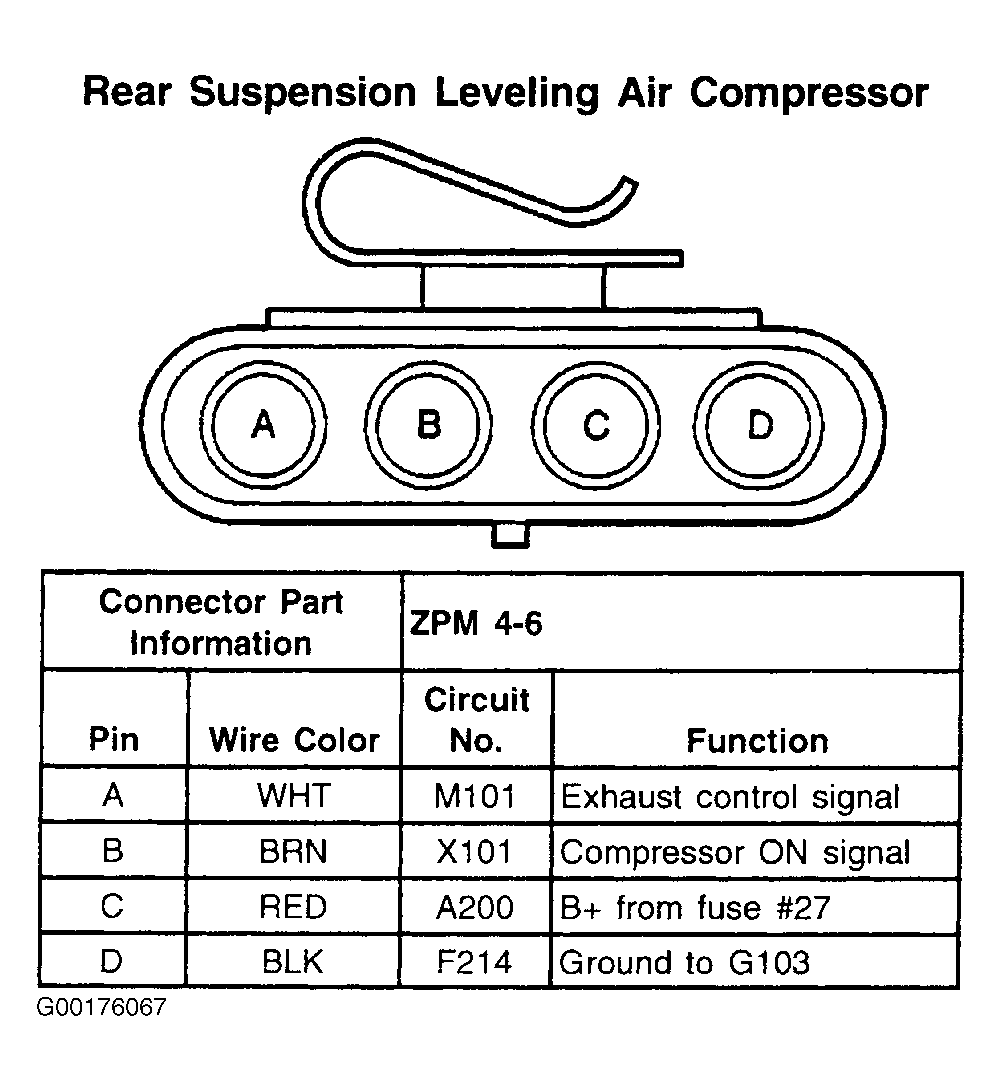

Fig 1: Rear Suspension Leveling Air Compressor - 4-Pin Connector
G00176067Courtesy of GENERAL MOTORS CORP.
