Connector Terminal Identification
›
Automatic Transmission
›
Automatic Transmission Control Indicator
Automatic Transmission Control Indicator

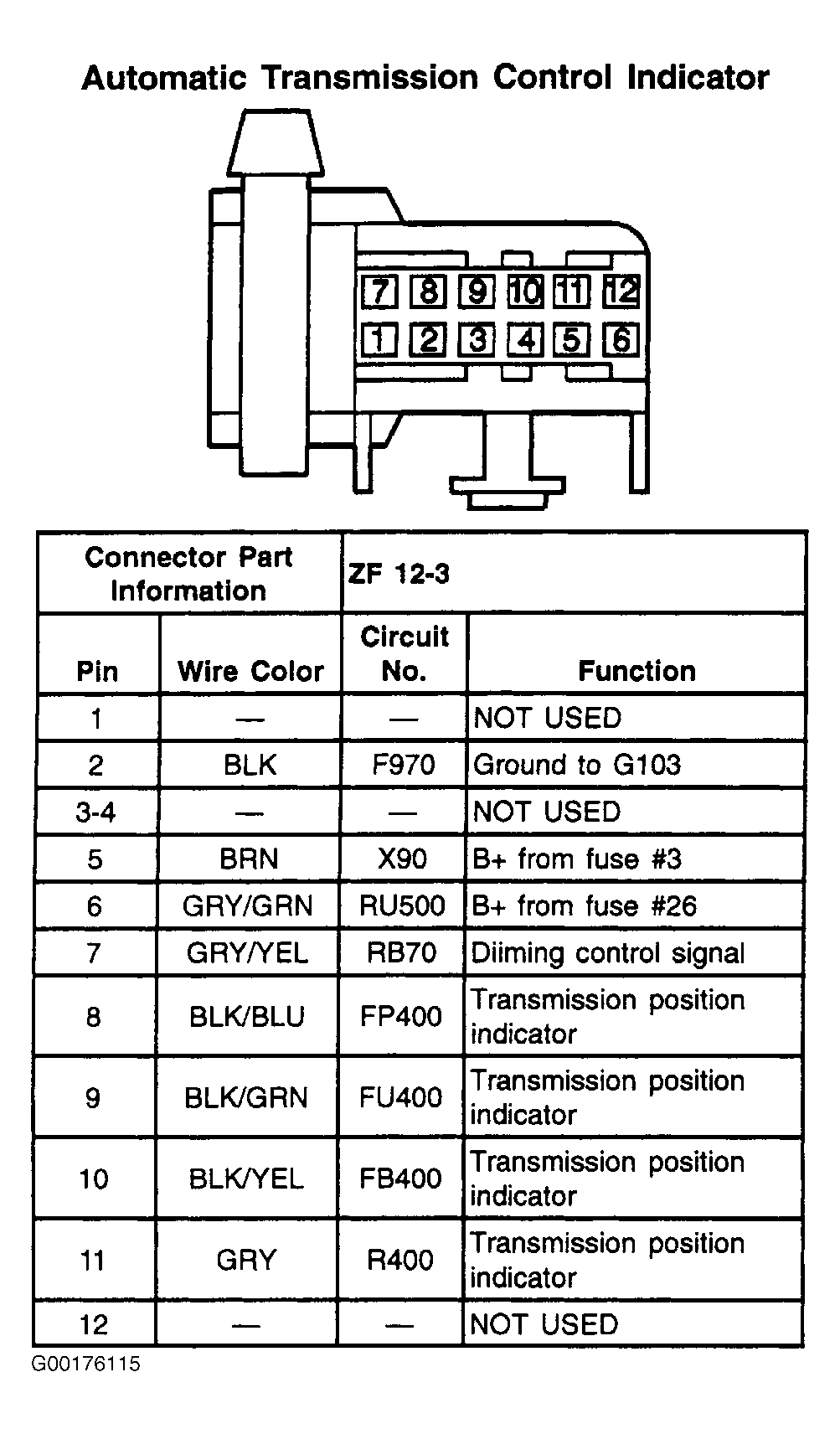

Fig 1: Automatic Transmission Control Indicator - 12-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
