Automatic Transmission Winter Mode Switch

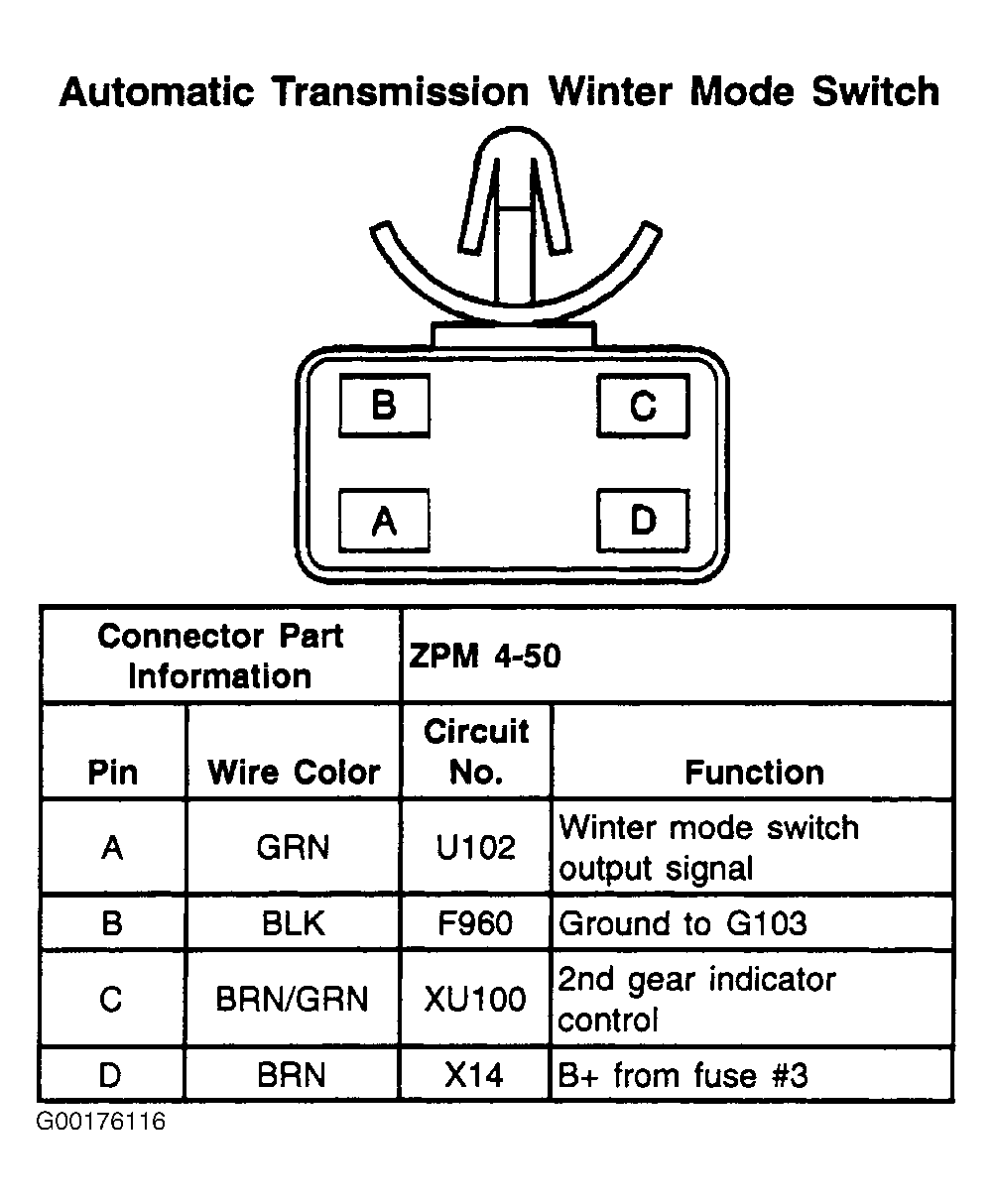

Fig 1: Automatic Transmission Winter Mode Switch - 4-Pin Connector
G00176116Courtesy of GENERAL MOTORS CORP.
