Connector Terminal Identification
›
Automatic Transmission
›
Transmission Control Selector Switch
Transmission Control Selector Switch

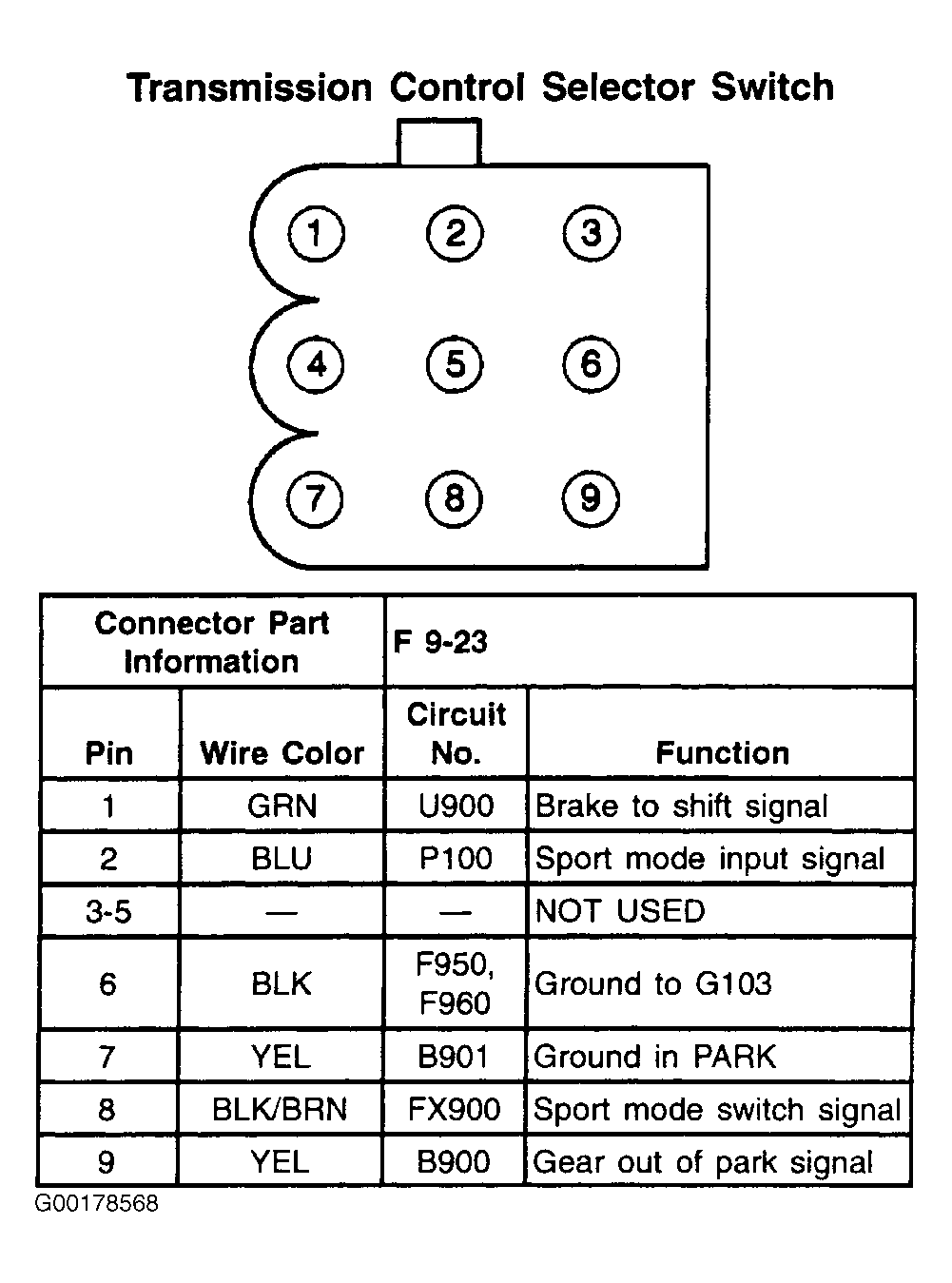

Fig 1: Transmission Control Selector Switch - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
