Connector Terminal Identification
›
Body Control Module
›
Door Lock Relay K35
Door Lock Relay K35

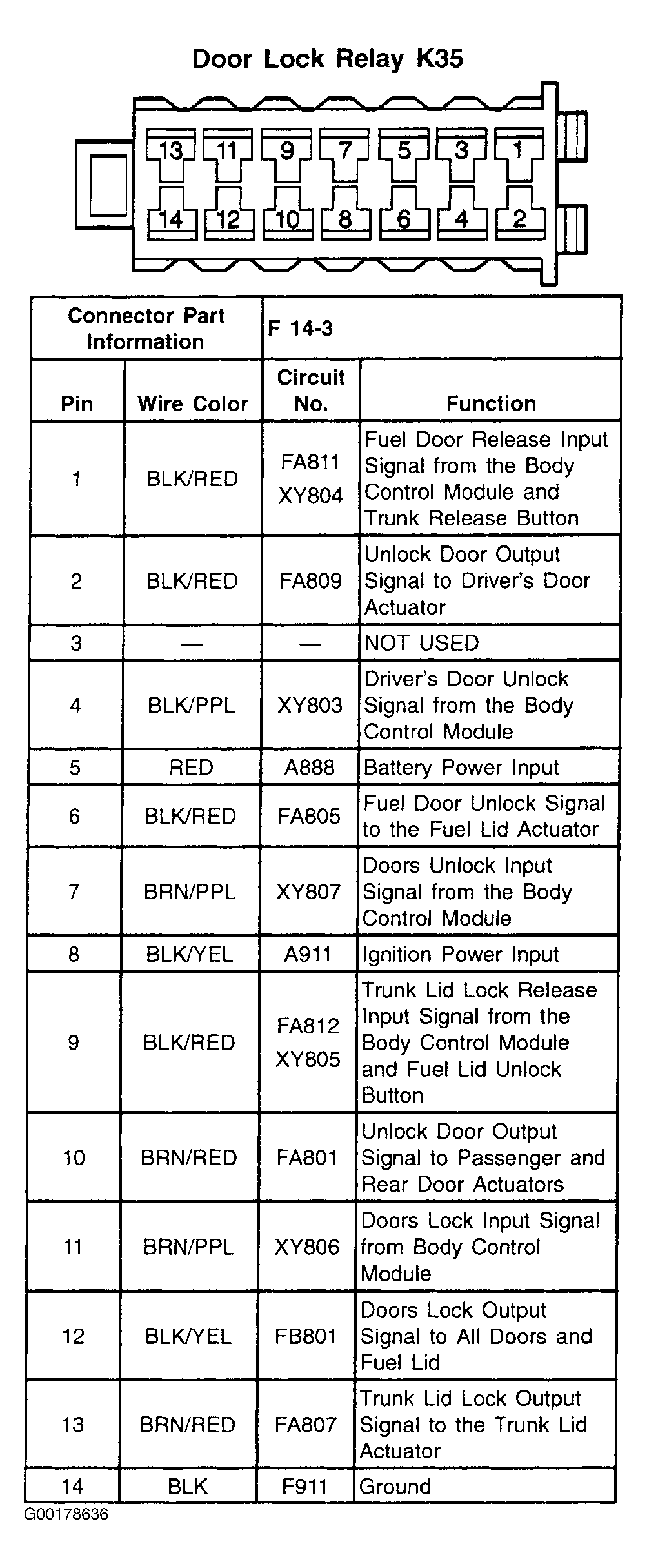

Fig 1: Door Lock Relay K35 - 14-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
