Connector Terminal Identification
›
Body Control Module
›
Door Lock Switch
Door Lock Switch

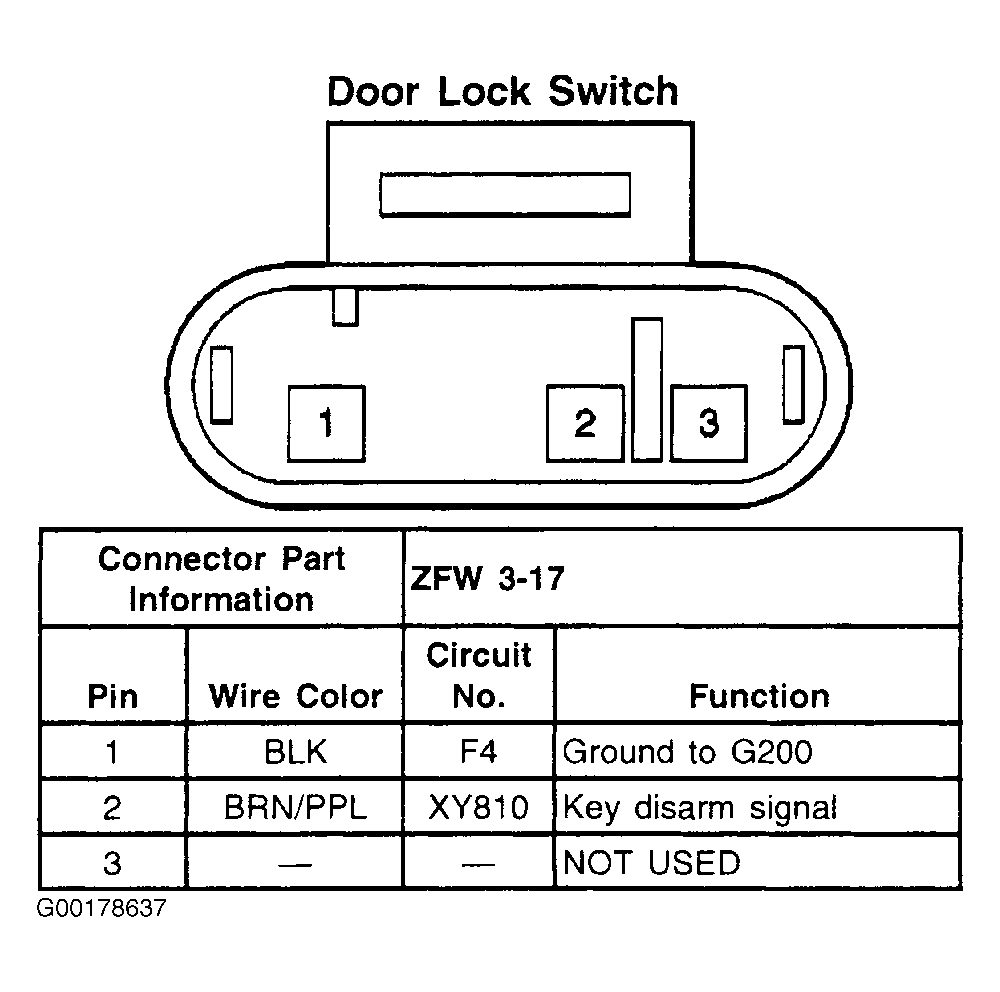

Fig 1: Door Lock Switch - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
