Connector Terminal Identification
›
Body Rear End Connectors
›
Rear Compartment Lid Release Switch
Rear Compartment Lid Release Switch

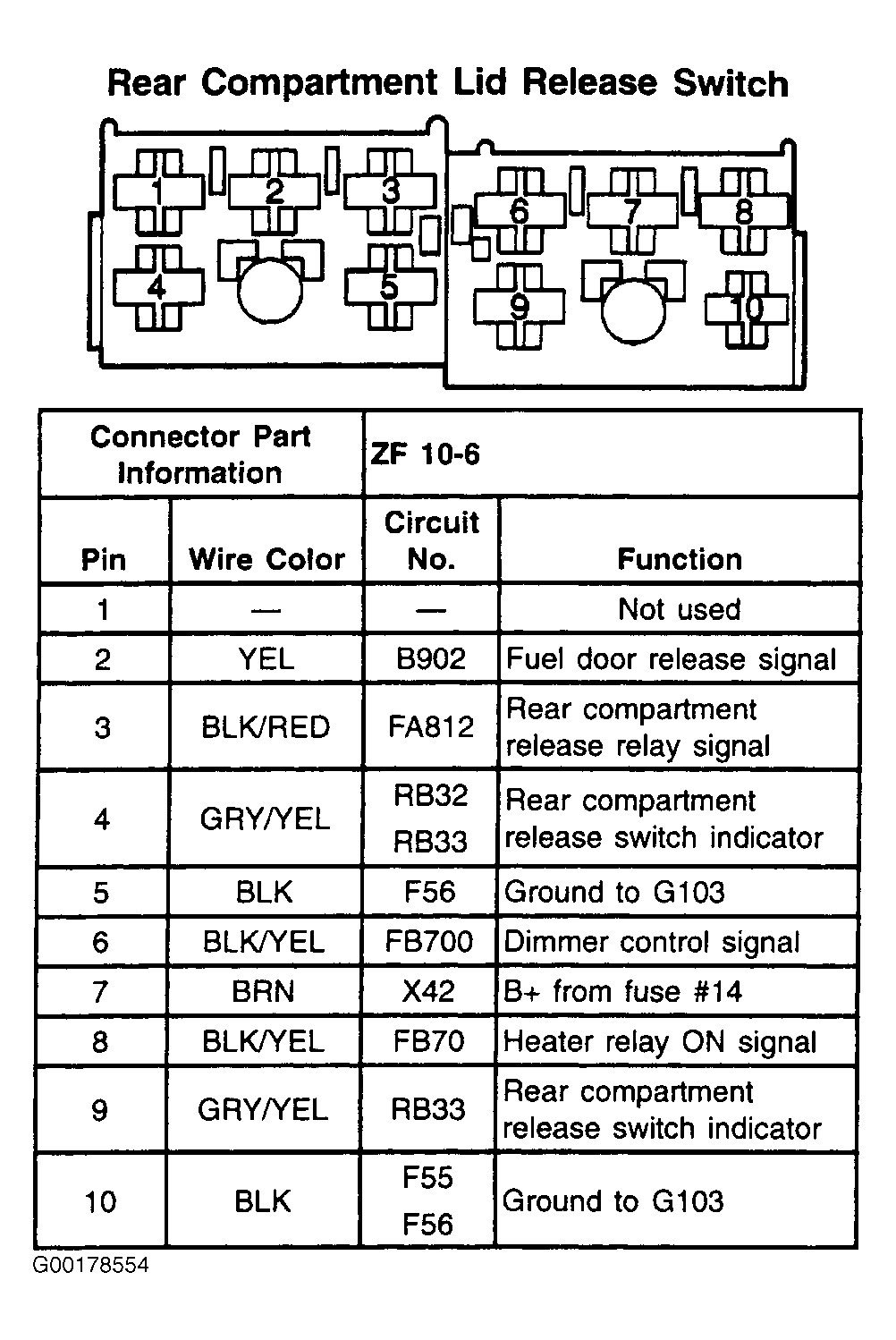

Fig 1: Rear Compartment Lid Release Switch - 10-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
