Cellular Telephone (BOSE System)

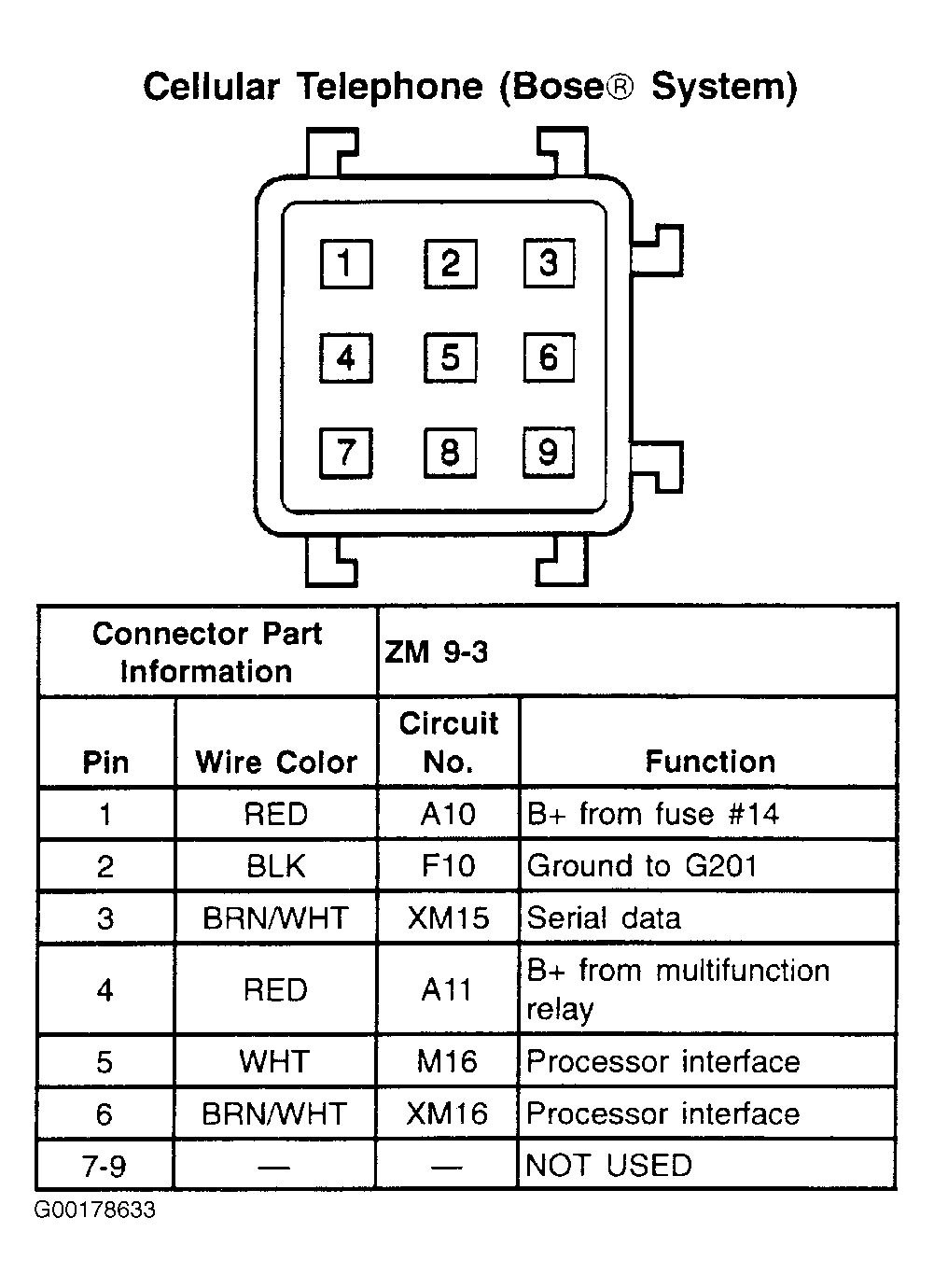

Fig 1: Cellular Telephone (Base System) - 9-Pin Connector
G00178633Courtesy of GENERAL MOTORS CORP.
