Connectors C-100 To C-600: C310

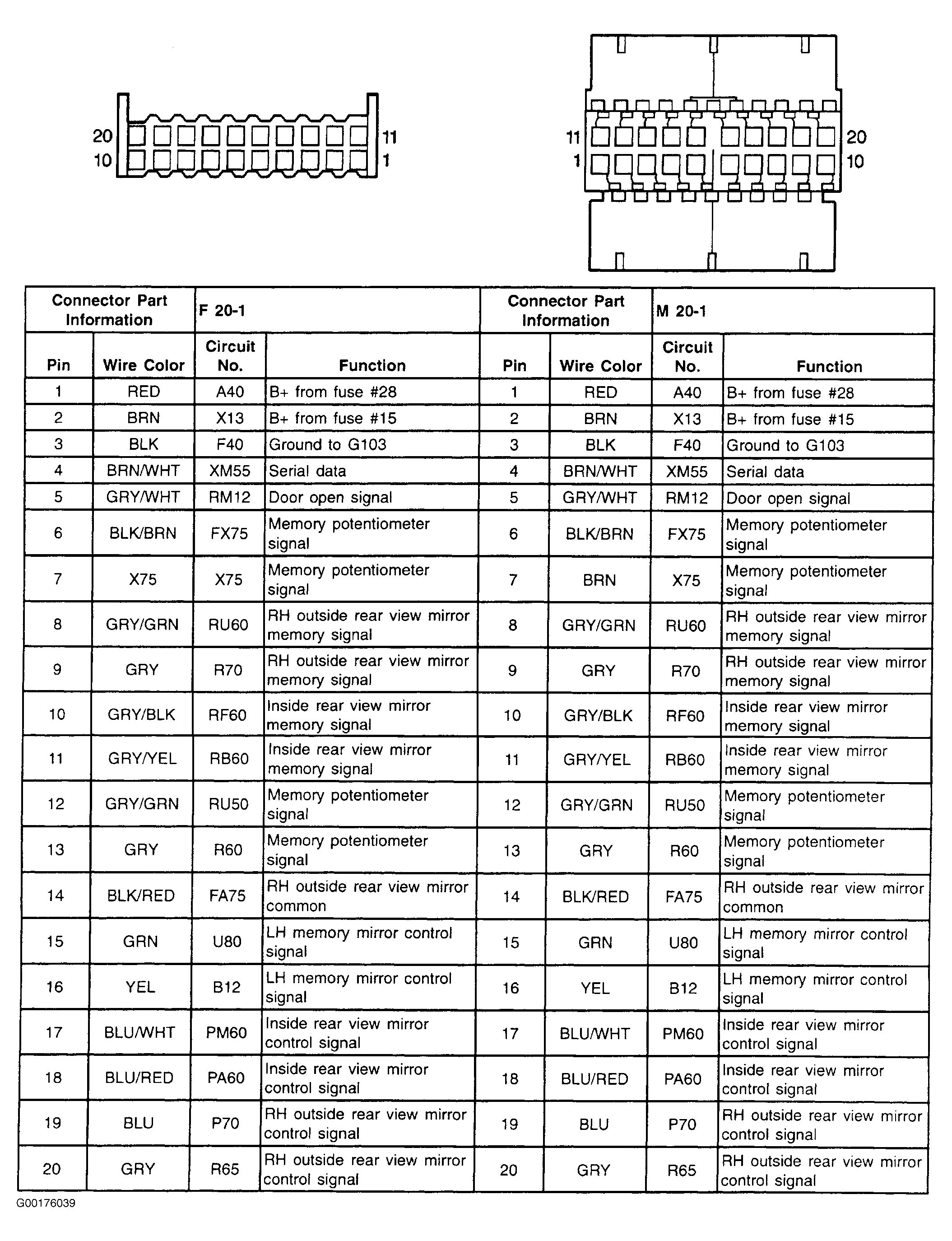

Fig 1: C310 - 20-Pin Connector

G00176039

Courtesy of GENERAL MOTORS CORP.
