Connector Terminal Identification
›
Cruise Control
›
Cruise Control Switch Connector
Cruise Control Switch Connector

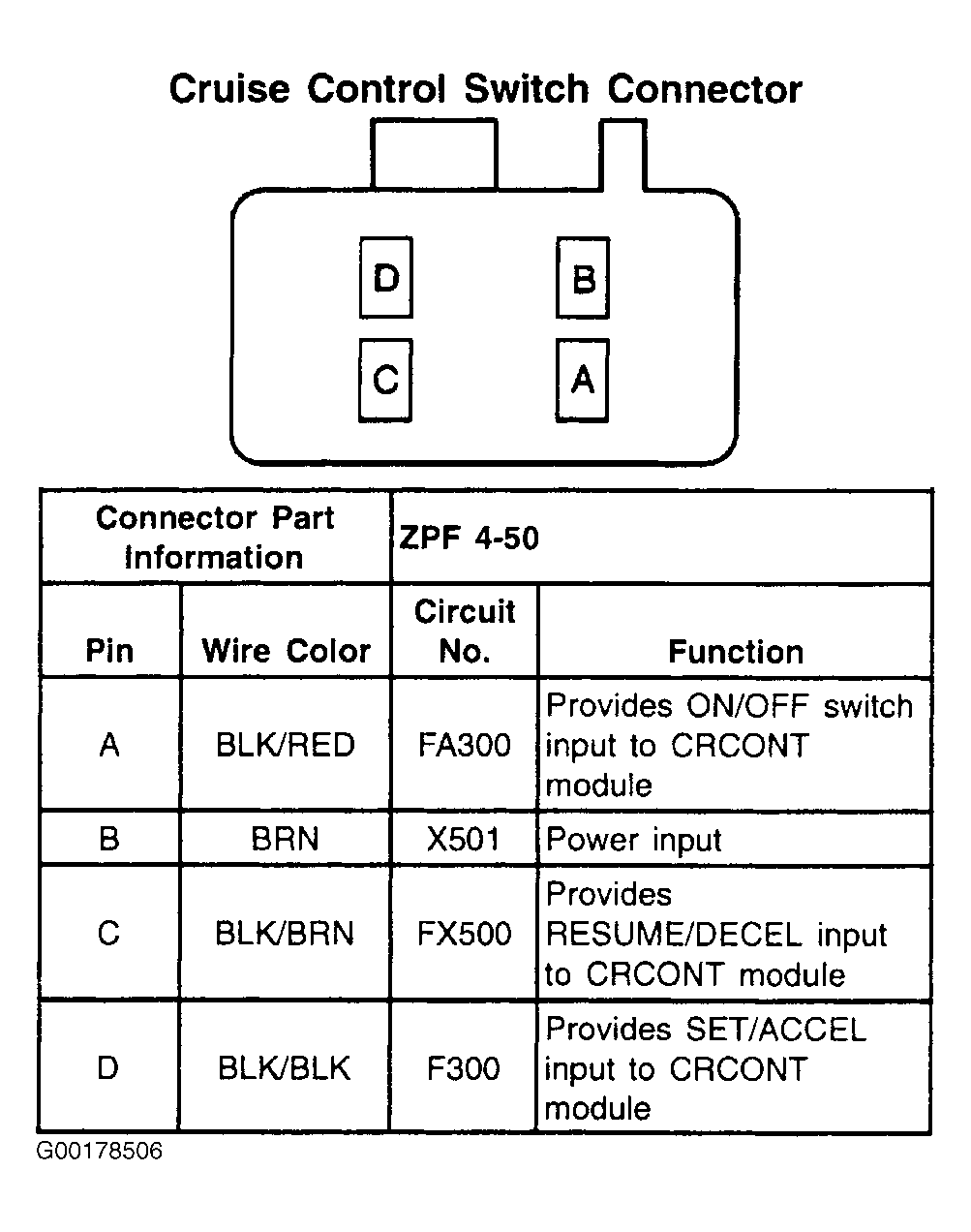

Fig 1: Cruise Control Switch Connector - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
