Connector Terminal Identification
›
Engine Controls
›
Crankshaft Position (CKP) Sensor
Crankshaft Position (CKP) Sensor

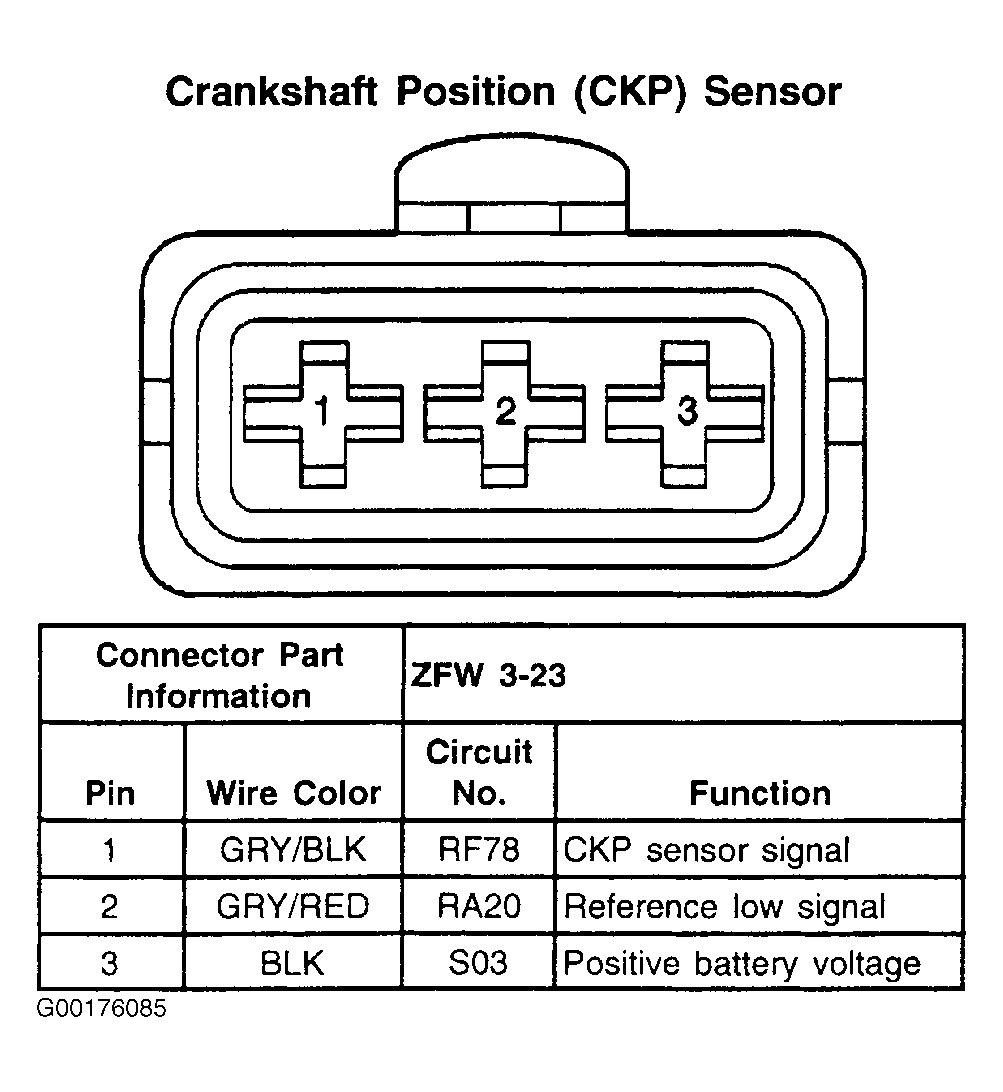

Fig 1: Crankshaft Position (CKP) Sensor - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
