Engine Controls Power Relay K43

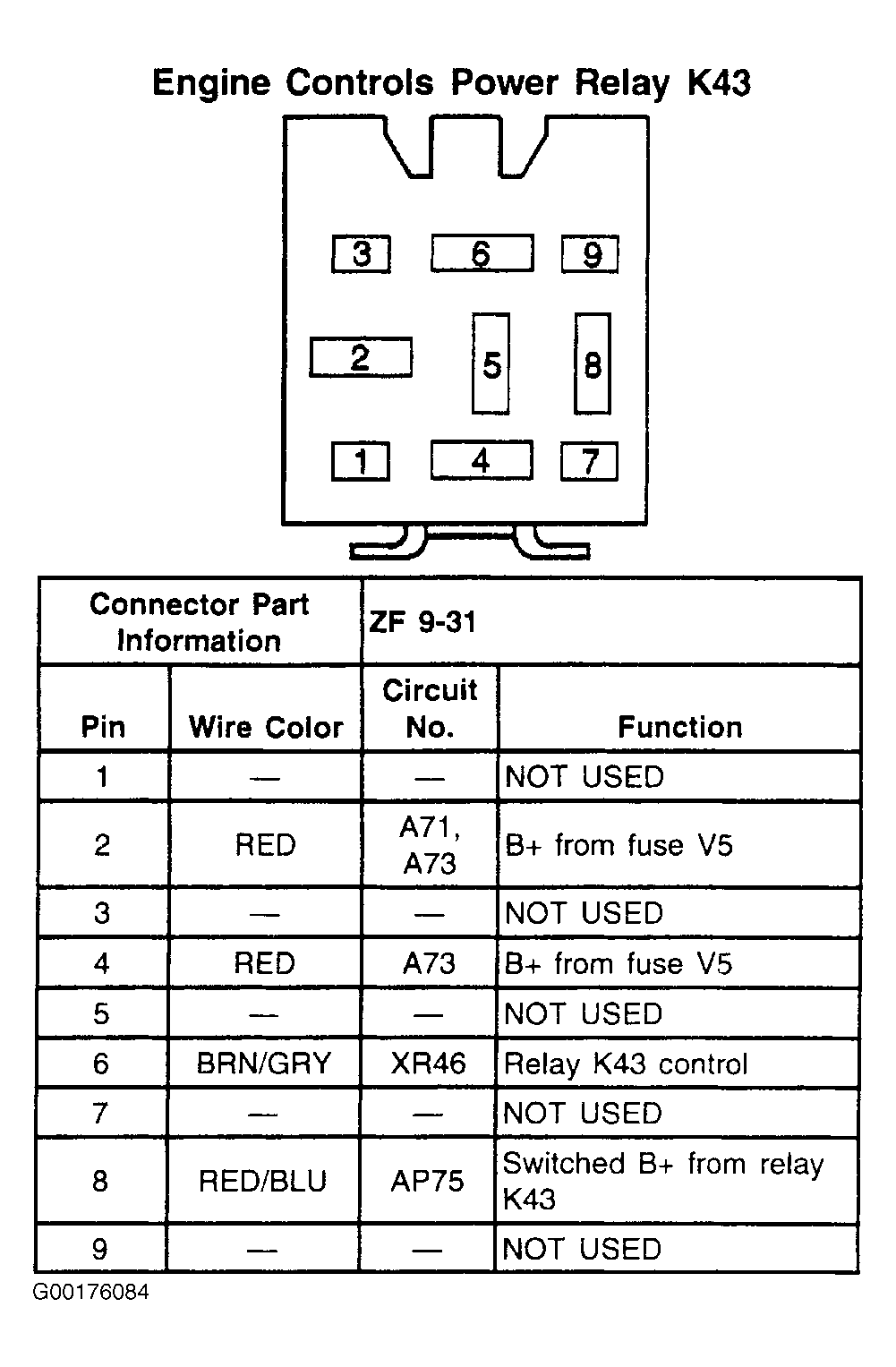

Fig 1: Engine Controls Power Relay K43 - 9-Pin Connector
G00176084Courtesy of GENERAL MOTORS CORP.
