Connector Terminal Identification
›
Engine Controls
›
Fuel Injector No. 1
Fuel Injector No. 1

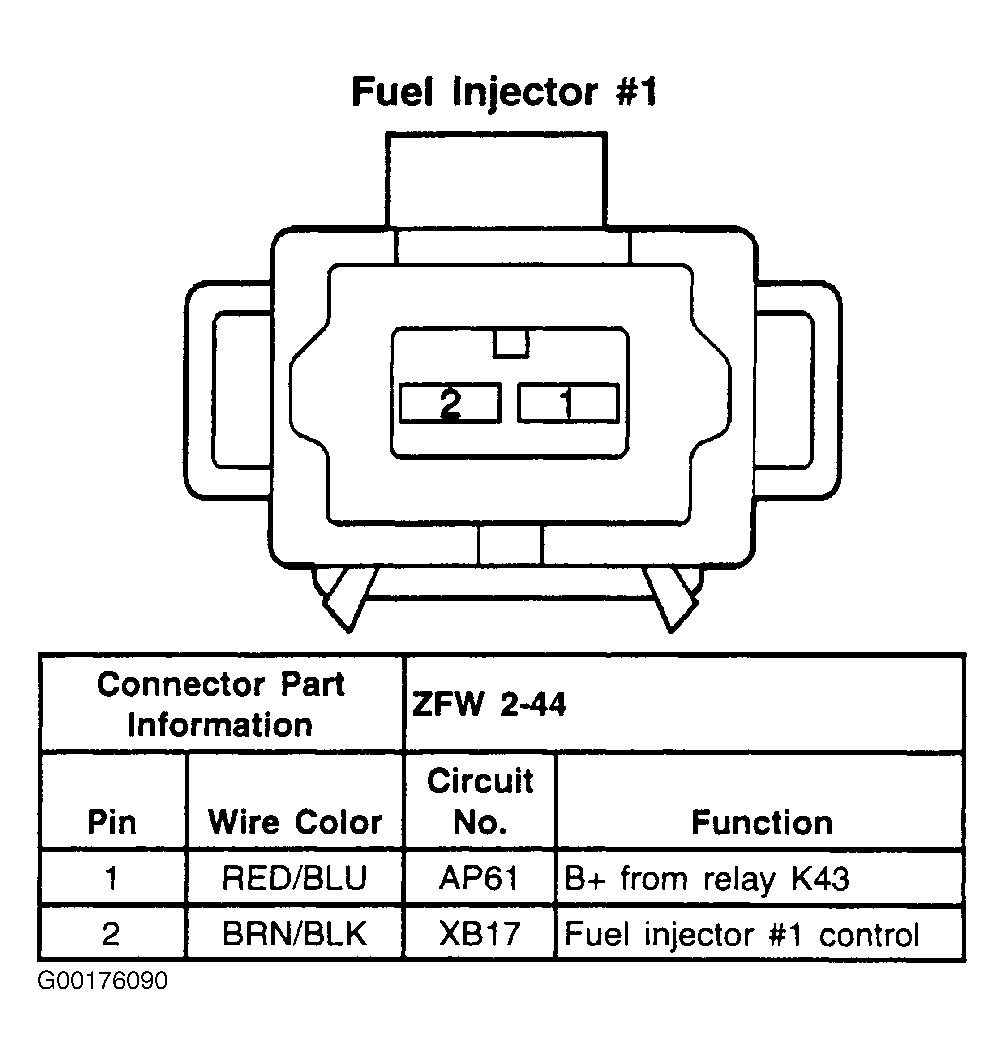

Fig 1: Fuel Injector No. 1 - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
